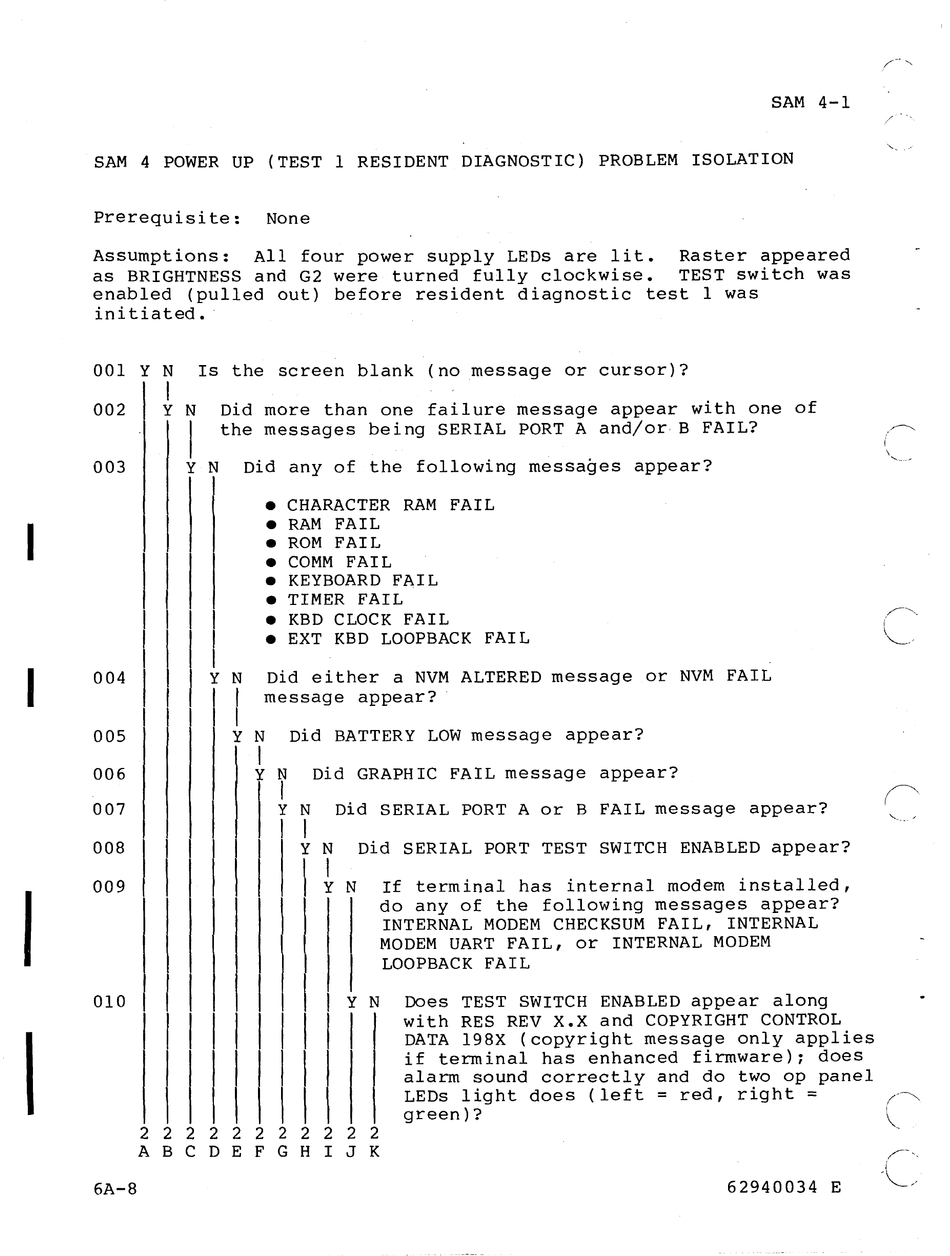

SAM 4-1
SAM 4 POWER UP (TEST 1 RESIDENT DIAGNOSTIC) PROBLEM ISOLATION
Prerequisite: None
Assumptions: All four power supply LEDs are lit. Raster appeared
as BRIGHTNESS and G2 were turned fully clockwise. TEST switch was
enabled (pulled out) before resident diagnostic test 1 was
initiated.
001 Y N Is the screen blank (no message or cursor)?
I
Y
I
002
N Did more than one failure message appear with one of
the messages being SERIAL PORT A and/or B FAIL?
I
003
Y N Did any of the following messages appear?
004
005
006
007
008
009
010
6A-8
II
• CHARACTER RAM FAIL
• RAM FAIL
• ROM FAIL
• COMM FAIL
• KEYBOARD FAIL
• TIMER FAIL
• KBD CLOCK FAIL
• EXT KBD LOOPBACK FAIL
Did either a NVM ALTERED message or NVM FAIL
message appear? .
N Did BATTERY LOW message appear?
I
Y
N
Did GRAPHIC FAIL message appear?
I
Y N
Did SERIAL PORT A or
B
FAIL message appear?
I I
Y N Did SERIAL PORT TEST SWITCH ENABLED appear?
I
~
N
If terminal has internal modem installed,
do any of the following messages appear?
INTERNAL MODEM CHECKSUM FAIL, INTERNAL
MODEM UART FAIL, or INTERNAL MODEM
I I
I
I I
yl
NLOOPBACK FAIL
Does TEST SWITCH ENABLED appear along
I I
I I I
I
I I I I I
with RES REV X.X and COPYRIGHT CONTROL
DATA 198X (copyright message only applies
I I I if terminal has enhanced firmware); does
alarm sound correctly and do two op panel
I I I
LEDs light does (left
=
red, right
=
green)?
222 2 2 2 222 2 2
ABC D E F G H I
J
K
62940034 E
\
.........
"
.......
\,,~-
'.,
-
./
