C·,
c)
c
NONITOR BOX
SHIELD
~SCREW(2)
r-:o
MONITOR BOARD
. V
ASSEMBLY
C'
04307-2
o

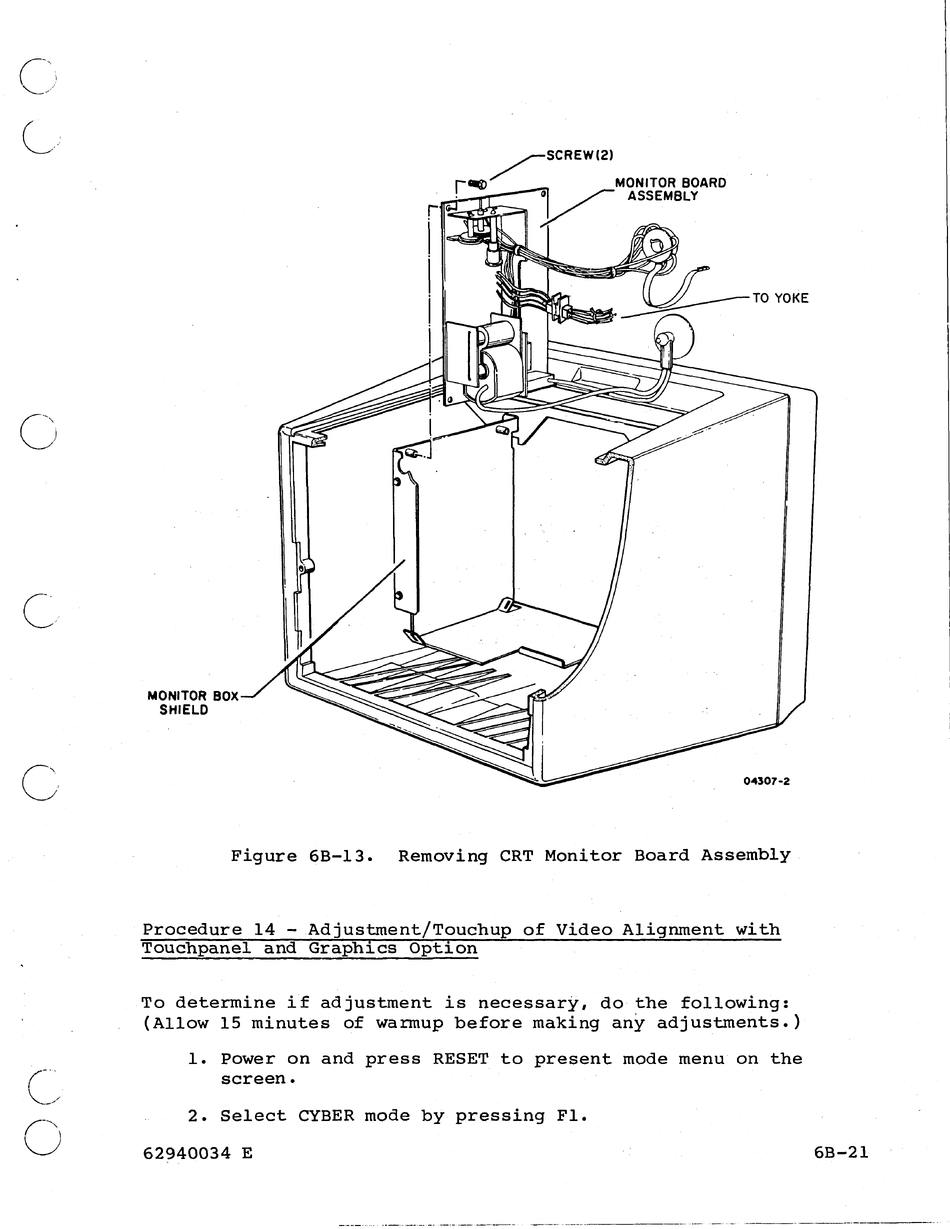

Figure 6B-13. Removing CRT Monitor Board Assembly
Procedure 14 - Adjustment/Touchup of Video Alignment with
Touchpanel and Graphics Option
To determine if adjustment is necessary, do the following:
(Allow 15 minutes of warmup before making any adjustments.)
1. Power on and press RESET to present mode menu on the
screen.
2. Select CYBER mode by pressing Fl.
62940034 E 6B-2l
