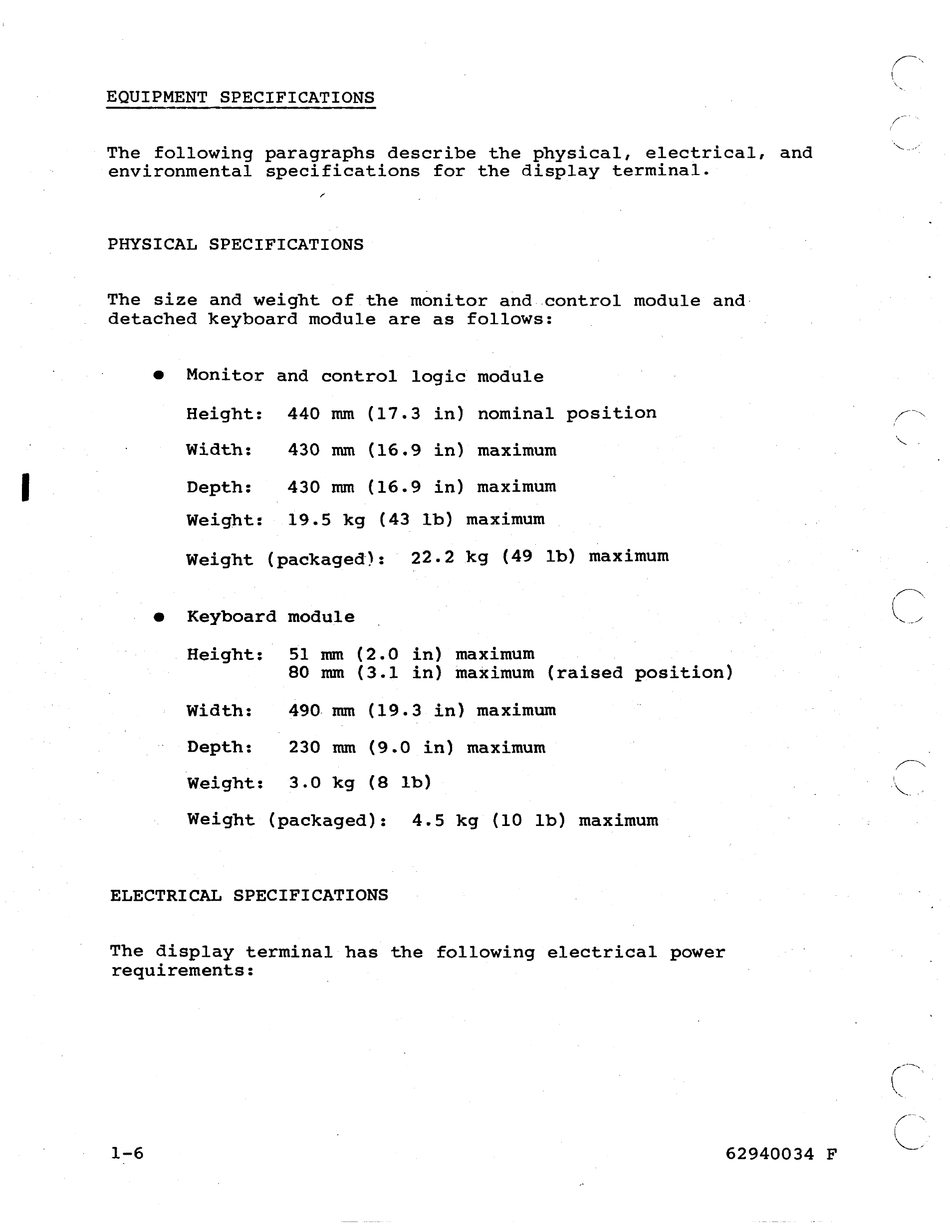

EQUIPMENT SPECIFICATIONS
The following paragraphs describe the physical, electrical, and
environmental specifications for the display terminal.
PHYSICAL SPECIFICATIONS
The size and weight of the monitor and. control module and·
detached keyboard module are as follows:
•
Monitor and control logic module
Height:
440 mm (17.3 in) nominal position
Width: 430 mm (16.9 in) maximum
Depth:
430 mm (16.9 in) maximum
Weight:
19.5 kg (43 lb) maximum
Weight ( packaged-) :
22.2 kg (49 lb) maximum
•
Keyboard module
Height: 51
nun
(2.0 in) maximum
80 mm (3.1 in) maximum (raised position)
Width: 490· mm (19.3 in) maximum
Depth:
230 mm (9.0 in) maximum
Weight:
3.0 kg (8 Ib)
Weight (packaged) :
4.5 kg (10 lb) maximum
ELECTRICAL SPECIFICATIONS
The display terminal has the following electrical power
requirements:
1-6 62940034 F
~
(
.......
.,
...•
/
