C
"
\
I
C~I
4. Remove the two screws holding the BRIGHTNESS/CONTRAST
control assembly and lift it out (figure 6B-8).
5. Install a new control assembly and replace the attaching
screws.
6. Replace the assemblies removed in steps 1 through 5 (of
this procedure) beginning with steps 7 through 17,
proced ure 5.
MONITOR
SHIELD
('
~~.
j
"' "
'(~.
~SCREW
04308-2

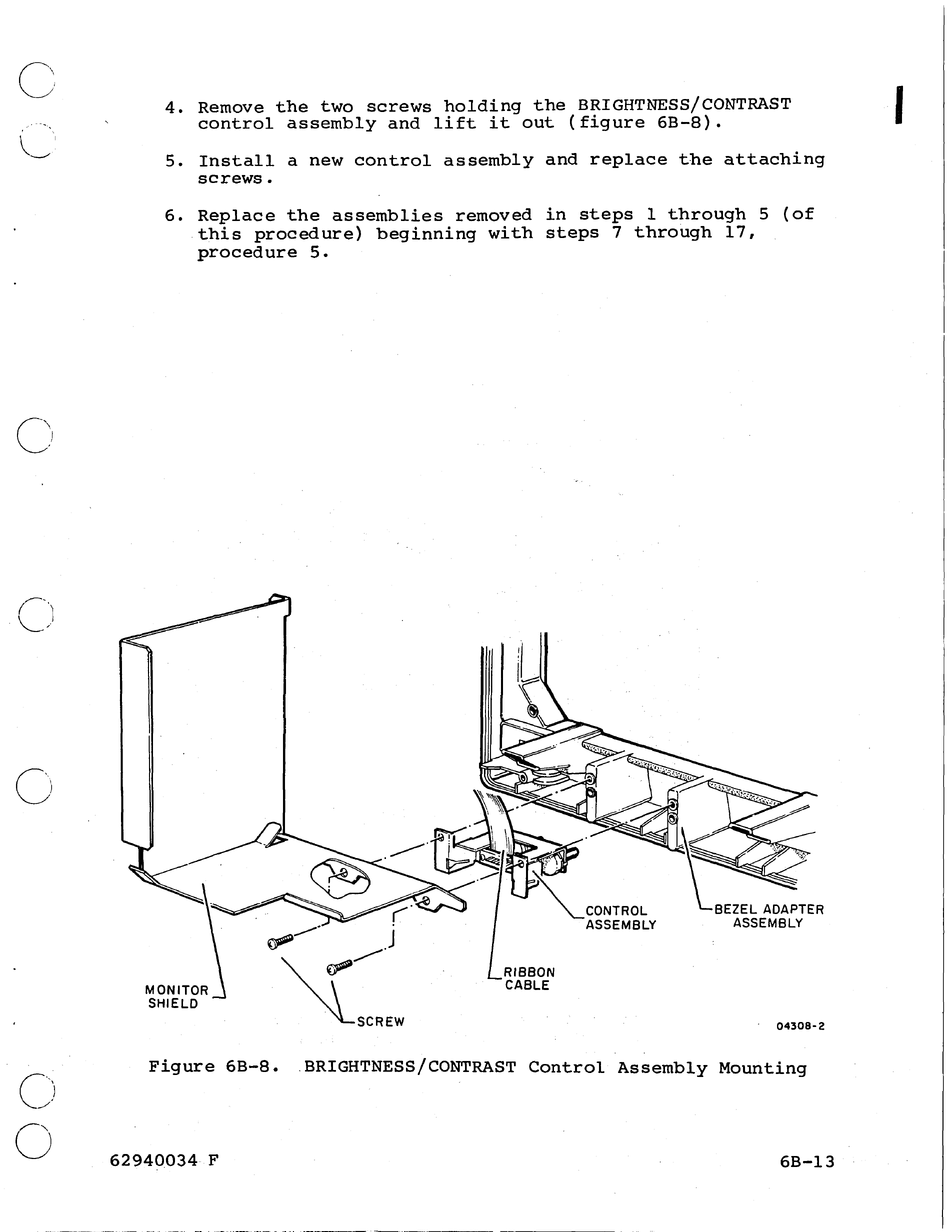

Figure 6B-8.BRIGHTNESS/CONTRAST Control Assembly Mounting
62940034 F
6B-13
I
