Vertical Centering Alignment - Control Data Corporation CDC CC63X Hardware Maintenance Manual

c)
L)
4. Adjust H CTR control so the alignment of the bezel
notches and Hs is as shown in figure 6B-20 in all four
bezel corners.
G)V LIN
HiS IN TOP ROW
SHOULD BE SAME
HEIGHT AS HiS IN
BOTTOM ROW
HHHHHHHHHHHHH
HHHHHHHHHHHH
HHHI . .
H-I~
..
B~HHHH
®
V SIZE
191 mm
7.5
in
IHHHHHHHHHHH
~HHHHHHHHHHH
HHHHHHHHHHHH
...r--~
ENLARGEMENT
VERTICAL ALIGN-
MENT BEZEL
NOTCHES
-HHHH
-HHHH
HHHH
G)v
CTR
HiS ALIGN WITH
______ BEZEL NOTCHES
/ AS SHOWN
04369

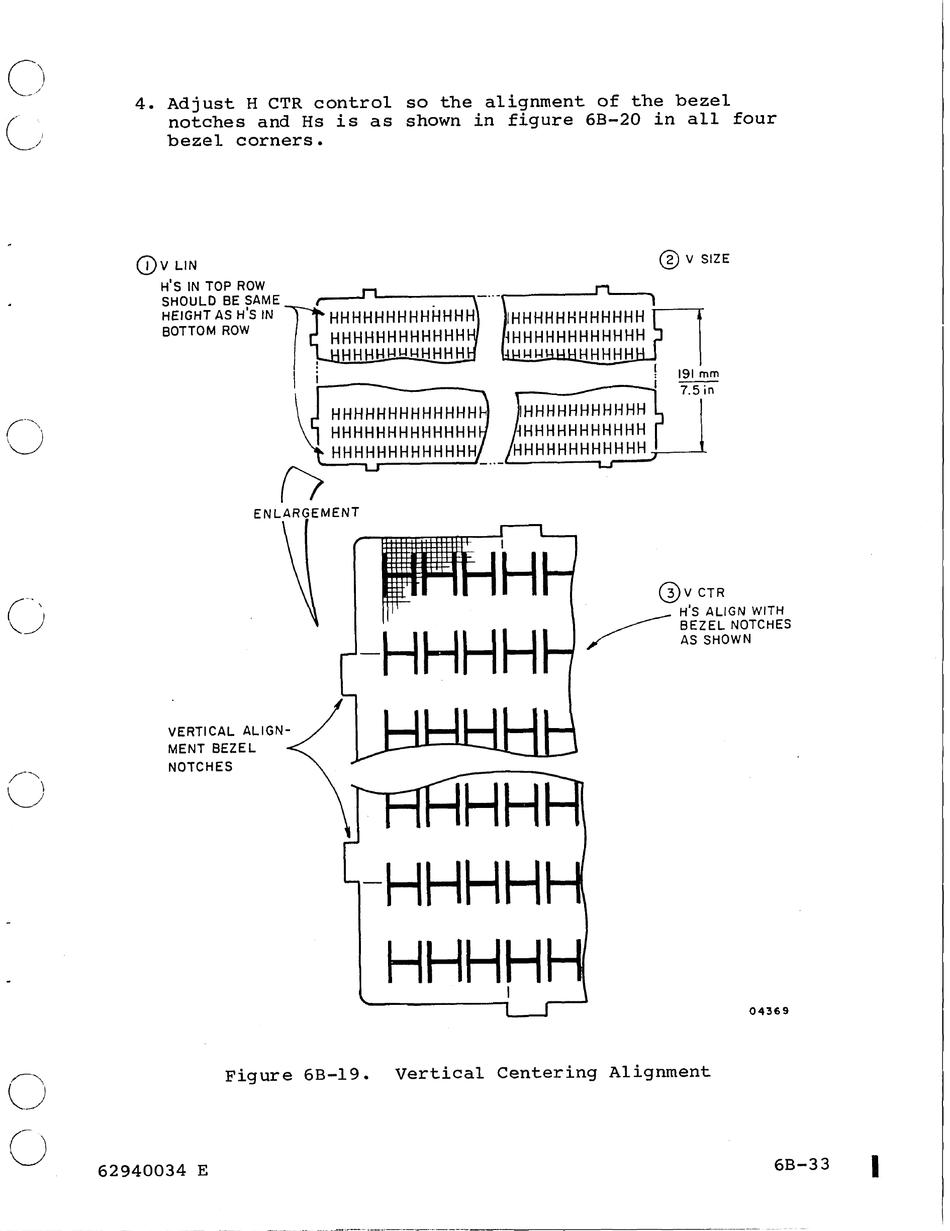

Figure 6B-19. vertical Centering Alignment
62940034 E
6B-33
