3.44 Operation Mode Timers, Alarms,
Alarm Data
Several Timers are provided to track Uptime and
Downtime. See Fig. 3-31 and 3-32.
Alarm logs are also provided.
Downtime can be analyzed by view Alarm Data screen
which sums all down time associated with each type of
fault condition and counts the number of occurrences of
each condition.
NOTE: Timers, Alarms and Data are automatically
saved once daily by the machine, either on the internal
or external memory, according to the machine setting.
Each save creates a new record in the file.

3.45 Auxiliary Screen

Auxiliary communication is provided by closed contact
signaling. Additional cabling may be required which
will transfer the signals between the machines in the
system.
See Fig. 3-33.
Auxiliary settings are displayed on this screen, but must
be change in the Technical Assistance / Aux Setup
screen.
The auxiliary signal mode will depend on the type of
equipment connected.
30

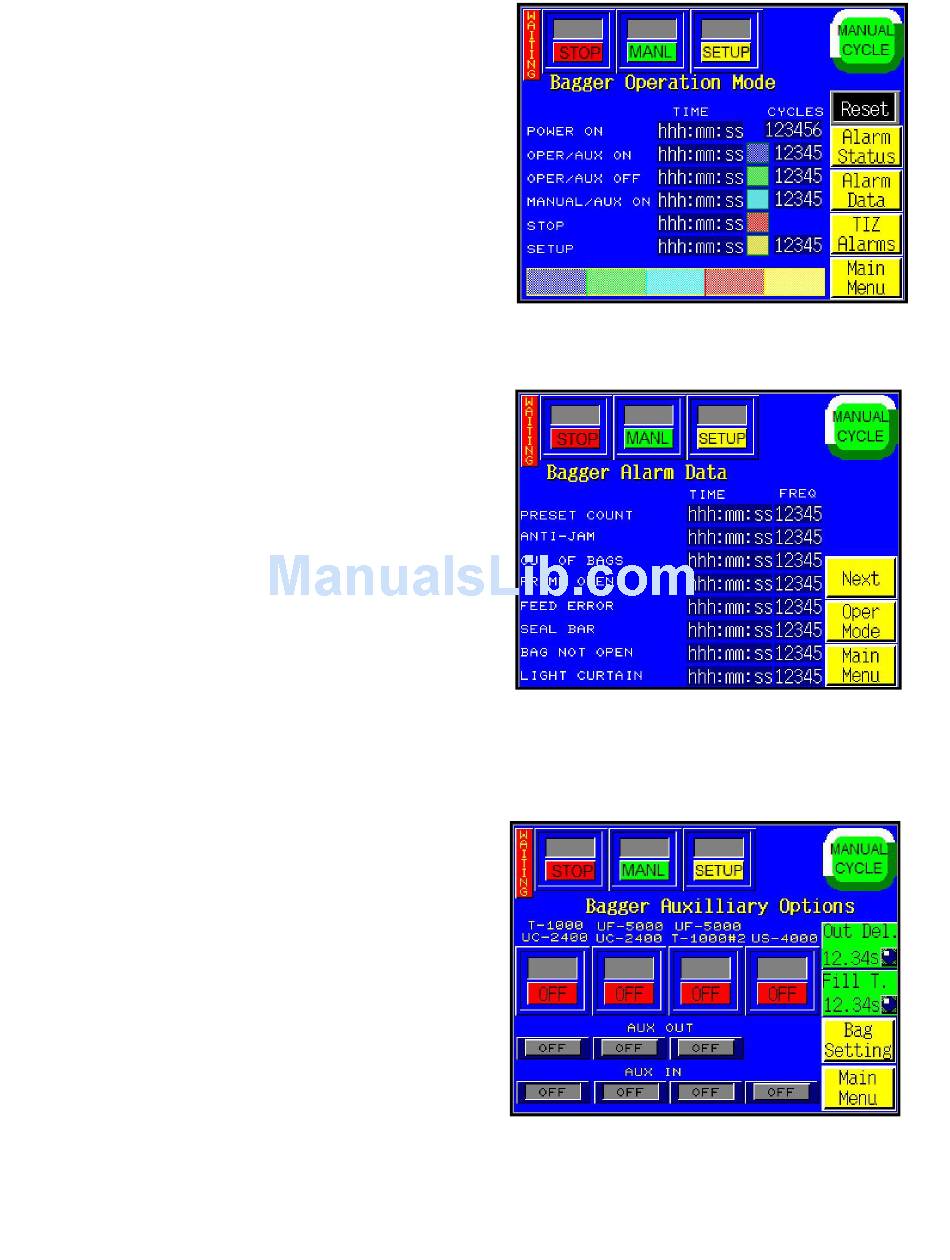

Figure 3-31
Figure 3-32
Figure 3-33
