3.40 Counters Screen

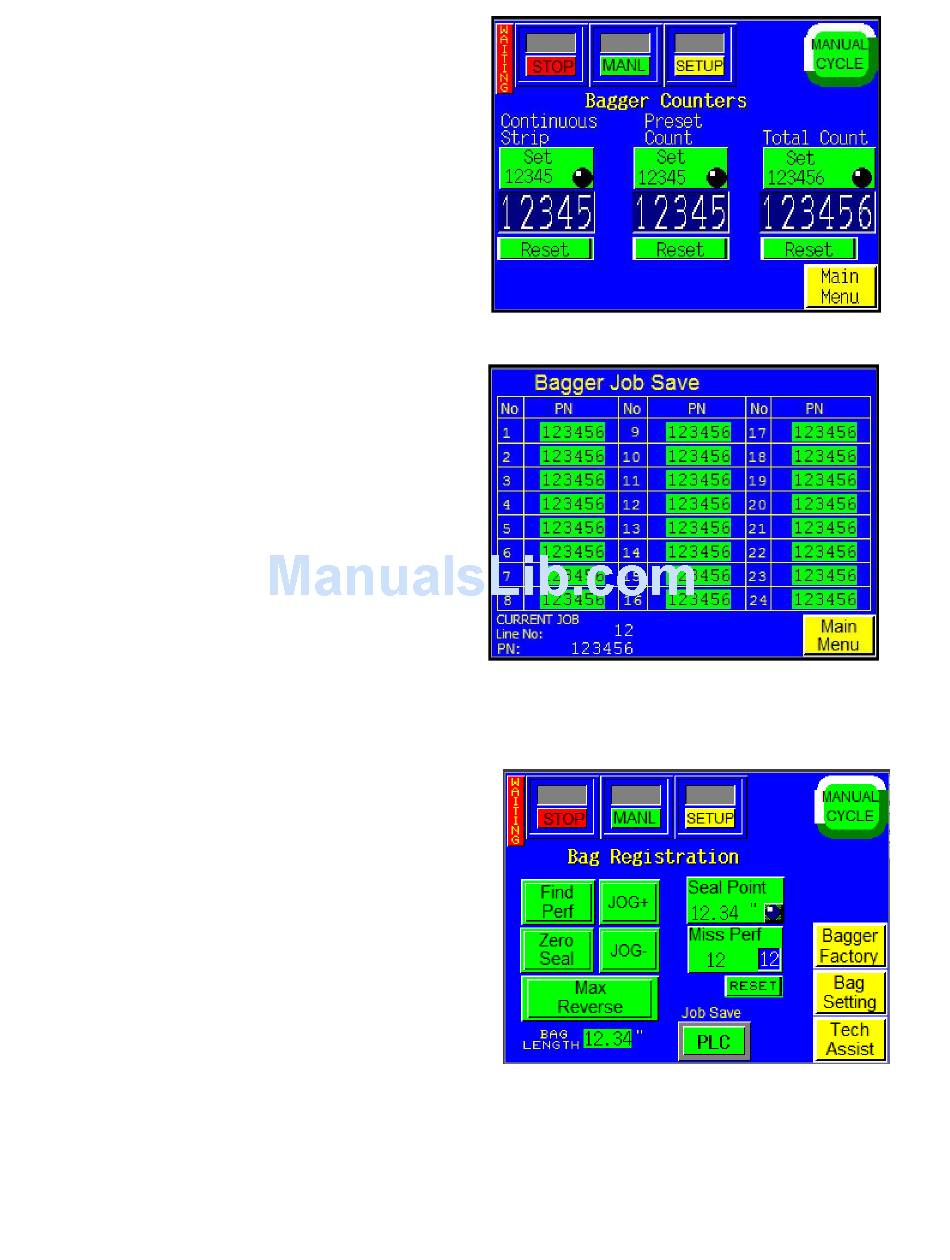

Three internal counters are provided as a standard
feature. To access the counter screen press the
<Counter> button from the Main Menu. See Figure 3-
26.
Continuous Strip Counter: This option allows you
to seal bags in a strip, without separating them at the
perforation. If you set this counter value to 10, for
instance, you will have a strip of 10 bags connected.
The bagger will then reverse to separate the 11th bag.
Press the <Reset> button to reset the counter to the set
value. To disable the option, set the value to zero.
Note: If you don't want the bags separated ever,
you can either set the counter value to very large
number or simply change the Reverse setting to zero
in the Bag Setup Menu.
Totalizing Counter: To track production, use the
Totalizing Counter to count cycle operations of the
machine. Press the <Reset> button to reset the
counter to zero. This counter value is also displayed
on the Operation Screen.
Predetermining Counter: To halt production after a
preset number of cycle operations, use the
Predetermining
Counter. When the final count has been reached, a
message screen will be displayed.
Set the value by pressing the <Set> button and then type the value on the number keypad followed by the
<Enter> button. To disable the Predetermining Counter set the value to "0".
3.41 View Settings, Job Save &
Recall
Each time a setting is changed on the machine, the
settings are immediately saved in memory so that if
power is lost, current setting will not be lost.
To Save the current settings, press <Job Save> from
the Main Menu. To recall a job already saved, press
the desired job slot. See Fig. 3-27.

3.42 Internal and External Memory

The T-1000-S14 is now equipped to support internal
and external memory. To change from internal to
external memory:
First, insert external memory (flash drive. thumb drive, USB stick, etc., not included). You will need to
unscrew the back cover of the touch screen housing unit to access the USB port, which is located on the
bottom left hand side of the touch screen device.
28
Figure 3-26
Figure 3-27
Figure 3-28
