3.3 Touch Screen Program, Overview

The Touch Screen Program is a "user-friendly" menu-driven setup and operation program. Pop-up
windows are incorporated for quick and easy setting adjustments. Each time a setting is changed, the
settings are saved so that if power is lost, the "job" will be recalled automatically without the need for
reprogramming.
A general color scheme has been used to identify
functions:
Blue: Background color. Blue is used as a
background or text-only color, which when pressed
typically does nothing.
Yellow: Menu buttons which will take you to other
areas in the program.
Green: Setting buttons used to change settings or
mode of operation.
Red: Stop, off functions or warning messages.

3.4 Introductory Screen

When the T-1000 is turned on, an Introductory
screen is displayed. See Figure 3-1.

3.5 Operation Screen

Operation Screen is provided to function with Pass
code Protection function of the machine. If the
pass code function is enabled in the Technical
Assistance Screen, the touch screen will default to
the Operation Screen after a preset time has
elapsed. This function prevents unauthorized
operators from making setting changes that could
affect the operation or performance of the unit.
Since no settings are displayed on the Operations
Screen, the operator cannot change settings unless
a pass code is enabled. See Figure 3-2. There are
several Operations Screens, which are selected
based on the Operation, Auxiliary and Options
installed. Figure 3-2 is the most basic operation
screen sample.

3.6 Main Menu

Main Menu screen allows the operator to quickly
navigate to other areas. See Figure 3-3.
Mode toggle buttons are located at the top of many
screens:
<Start> / <Stop> toggle button controls operation
mode, the mode which enables the equipment to
cycle.
<Manl> / <Auto> toggle button activates the
Automatic (paced rate) or Auxiliary Cycle mode.
<Run> / <Setup> toggle button deactivates functions and allows cycling when not at temperature.
Setup mode stops counters, production timers and auxiliary signals so that the equipment can be operated

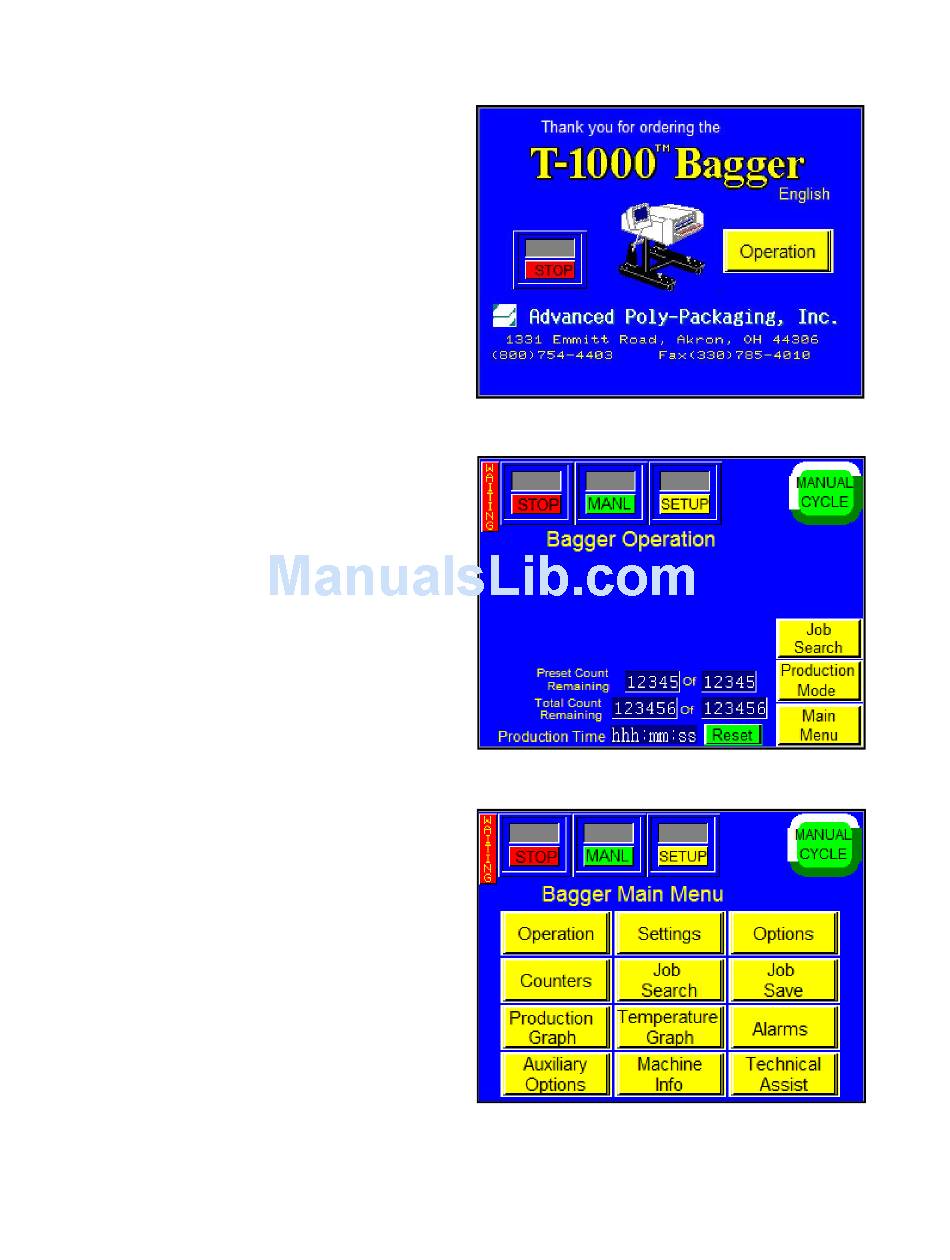

Figure 3-1
