Next, from the Main Menu on the touch screen software, access the <Tech Assist> page and enter the
factory code as it is prompted. Next, access the <Bagger Factory> page and locate the yellow <Perf
Registration> button on the right hand side of the page. On the bottom in the middle of the Perf
Registration page there is a <PLC> button which can be toggled between <PLC> (internal) and <USB>
(external) memory. See figure 3-28. Once the memory is chosen for the machine that will be where jobs
and recipes are recalled from as well as where alarms, timers and data will be stored.
3.43 Production Graph and
Temperature Graph

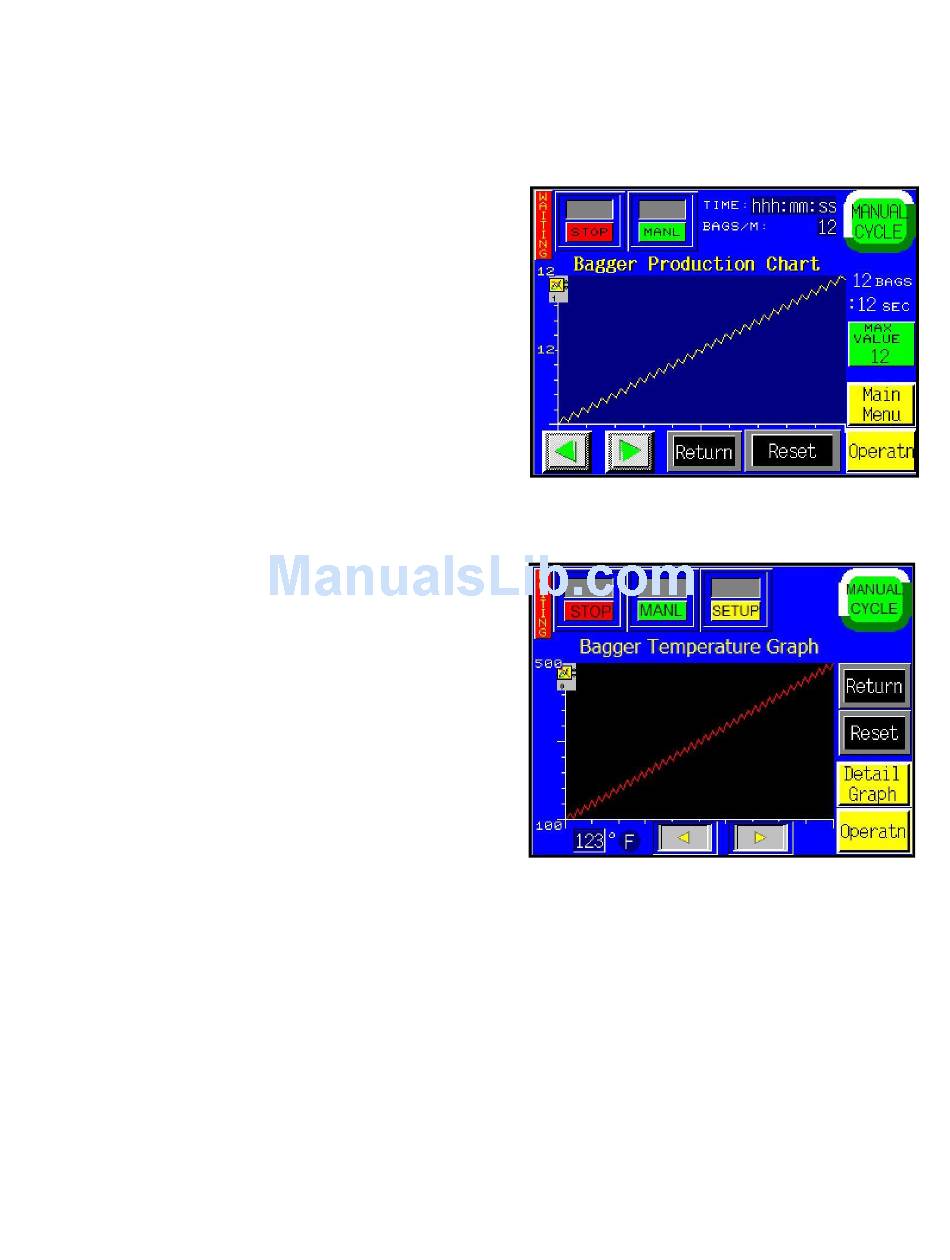

Simple production and temperature graphs are provided
to chart production and temperature throughout the day.
See Figure 3-29 and 3-30.
Press the <Reset> button once to reset the production time
and twice to reset the graph.
Figure 3-29
Figure 3-30
29
