3.16 Options Menu

Options that have been added to the T-1000 at the factory can be setup from the Options Screen. If
options were not installed at the factory, then N/A (Not available) will be displayed to the left of each
options button. Otherwise, the button will display
ON or OFF. See Figures 3-5.
Note: If options are added in the field, a pass code is
required to Enable use of the option. Contact APPI
for pass codes. Options which have been purchased
separately must be installed by Specialized
Maintenance Personnel.
Note: Valve # X indicates the Valve Station number
assigned to this option. Valve #0 indicates that no
valve is assigned to this option. The option will not
operate unless a Valve Station number is assigned,
greater than 0.

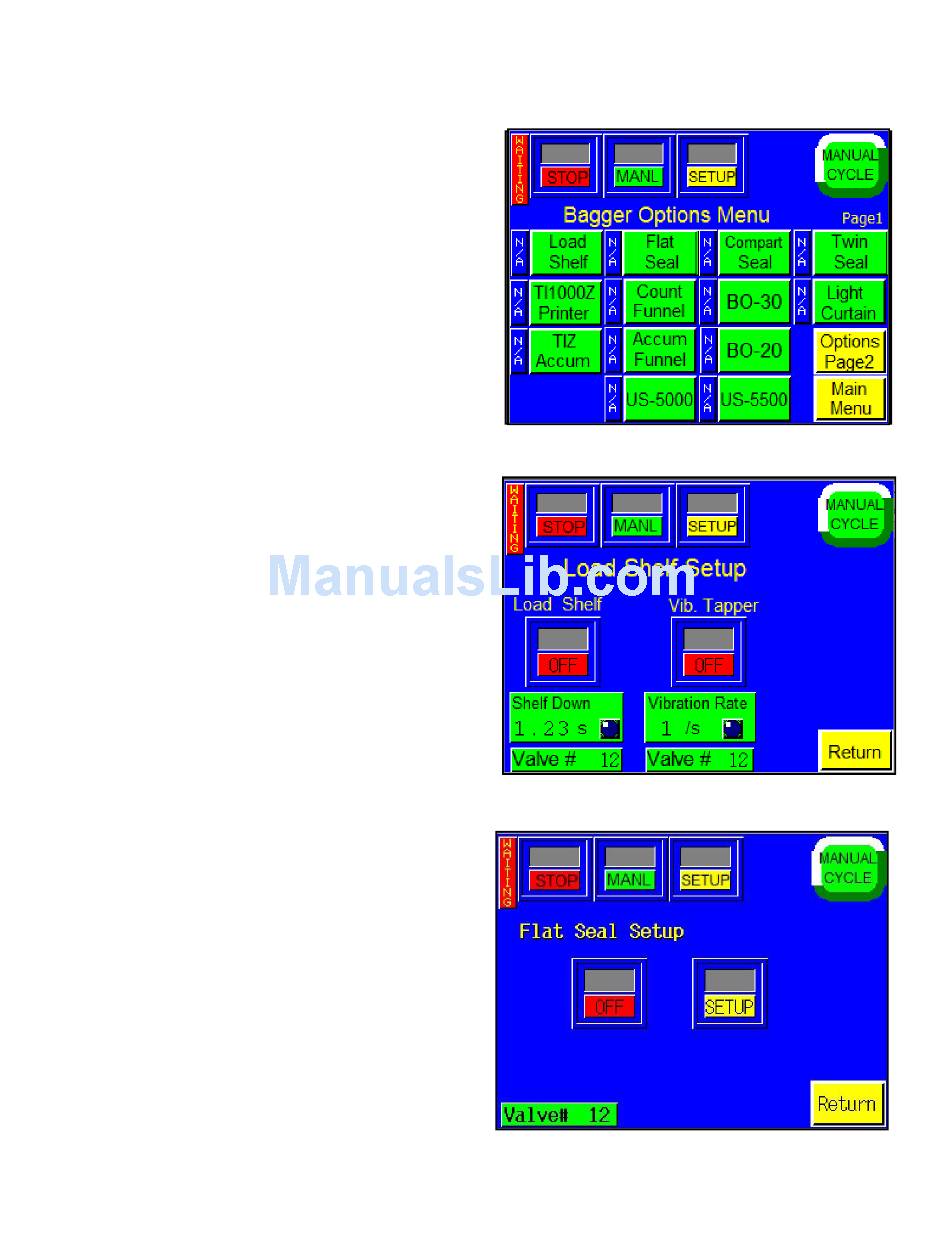

Figure 3-5
The following sections describe the settings for
optional equipment. If your T-1000 is not equipped
with these options, please disregard these sections.
Most of the listed options are not standard and must
be purchased separately. Setting changes require
testing prior to beginning production.
Due to specialized nature of some options or if your
machine has custom programming, settings
descriptions may not be included in this manual.
Please contact Advanced Poly for special instructions.
3.17 LS-10 Load Shelf
This option is used as a support shelf for the product to
Figure 3-6
avoid the bag from prematurely tearing off at the
perforation when the product is inserted in the bag.
The Load Shelf allows the product to drop onto the
shelf relieving the pressure on the bottom of the bag.
See Figure 3-6.
To turn ON the load shelf, press the <Load Shelf>
menu option and press the <ON> button. The Load
Shelf down time is the length of time the shelf is in
the down position. Increase the time for longer bags.
3.18 FS-10 Flat Seal Assembly
Fingers enter the bag immediately before sealing to
pull the front/back layer of bag together, decreasing
wrinkles or folds. See Figure 3-7.
Figure 3-7
To turn the Flat Seal Assembly ON, press the <Flat
Seal> button on the Options menu and toggle ON the ON/OFF button. Use the <Setup> button to make it
easier to mechanically adjust the fingers along the front plate slots on the T-1000. Once the mechanical
20
