Note: To properly "trim-off" excess film, the bag length may have to be increased to provide the required
finished bag size. We recommend trimming at least 1.25" of film from the bag.
Press the ON/OFF toggle button to enable and disable the operation of the Trim Seal option. Seal Time,
Seal Temp, Cool Time, Trim Del and Trim Time settings affect the operation of this option.
Adjust the settings until bags are trimming consistently.
3.31 ES-10 Estop Circuit
This option can be used to stop the cycle operation of the T-1000 and possibly other auxiliary infeed or
outfeed equipment. One or more Estop buttons may be equipped.
If depressed, the Estop button will cut power to the drive motors, turn off air pressure or otherwise halt
moving components within the system. However, due to the wide range of equipment options, E-stops
may function differently from one system to another depending on the components and safety
requirements requested. When the Estop is pressed, a message screen will be displayed.
3.32 MV-10 Seal Validation
Seal validation is provided by adding additional
components to detect failures or out of range condition for
components that affect seal quality. See Fig 3-19.
Each component required to produce a good quality seal is
validated, including seal time, temperature and pressure.
Alarm outputs are provided with each component.
3.33 HT-10 Base Height Adjustment
Operating height can be adjusted through the touch screen
controlling a telescopic lift screw mechanism. To adjust
the height, toggle the Option ON and press

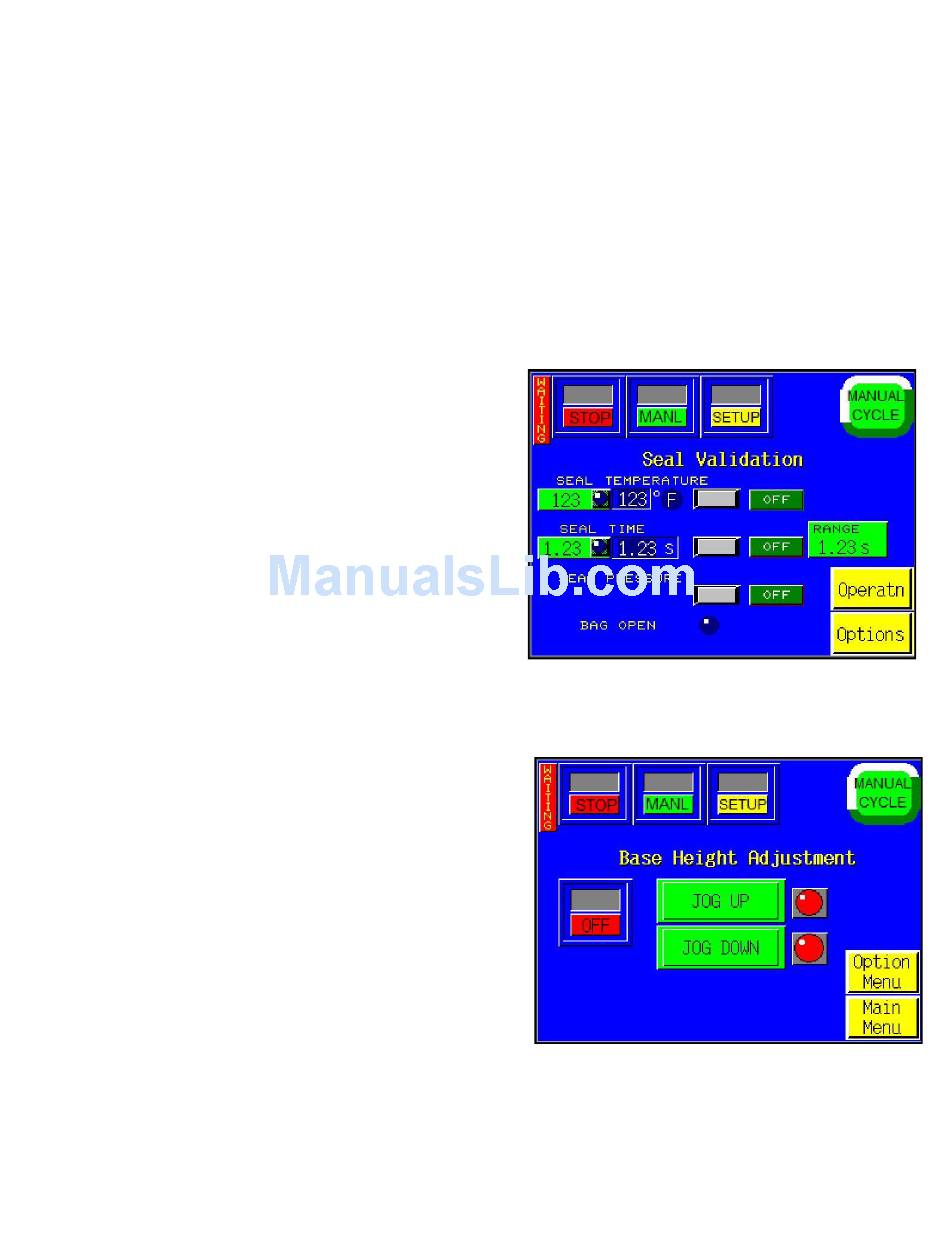

Figure 3-19
<JOG UP> or <JOG DOWN>. See Fig 3-20.
Figure 3-20
