3.36 BF-10 Bag Deflator
To press the air from the bag, a pneumatic bag
deflator can be fitted. Several timers are provided to
change the sequence of operation. Toggle the option
ON and adjust the Seal Delay settings to cause the
bag deflator to cycle prior to the seal bar. Index
Delay setting delays the next bag from feeding, Fill
Time delays the bag deflator from operating and
Cool Time delays the bag deflator from returning
home. See Fig 3-23.

3.37 UF-5000 Infeed Conveyor Operation Screen

Refer to Appendix B for further information.
3.38 BV-10 Barcode Reader Option
This option is purchased to validate that a barcode is
present and readable. See Fig 3-24.
Press the <ON> toggle button. For each barcode
successfully read, the status box will provide a GOOD
message. If a NO READ occurs, a message will be
displayed.

3.39 Ti-1000 Inline Printer

The Thermal Inline Transfer Printer - prints text,
graphics and bar codes, formatted in a separate software
program. The label formats are "downloaded" to the
printer from a PC.
To enable Printer operation on the Thermal Transfer
(TT) Printer, press the highlighted <Printer Ti-1000>
button. Toggle <ON> to enable operation of the
printer. See Figure 3-25.

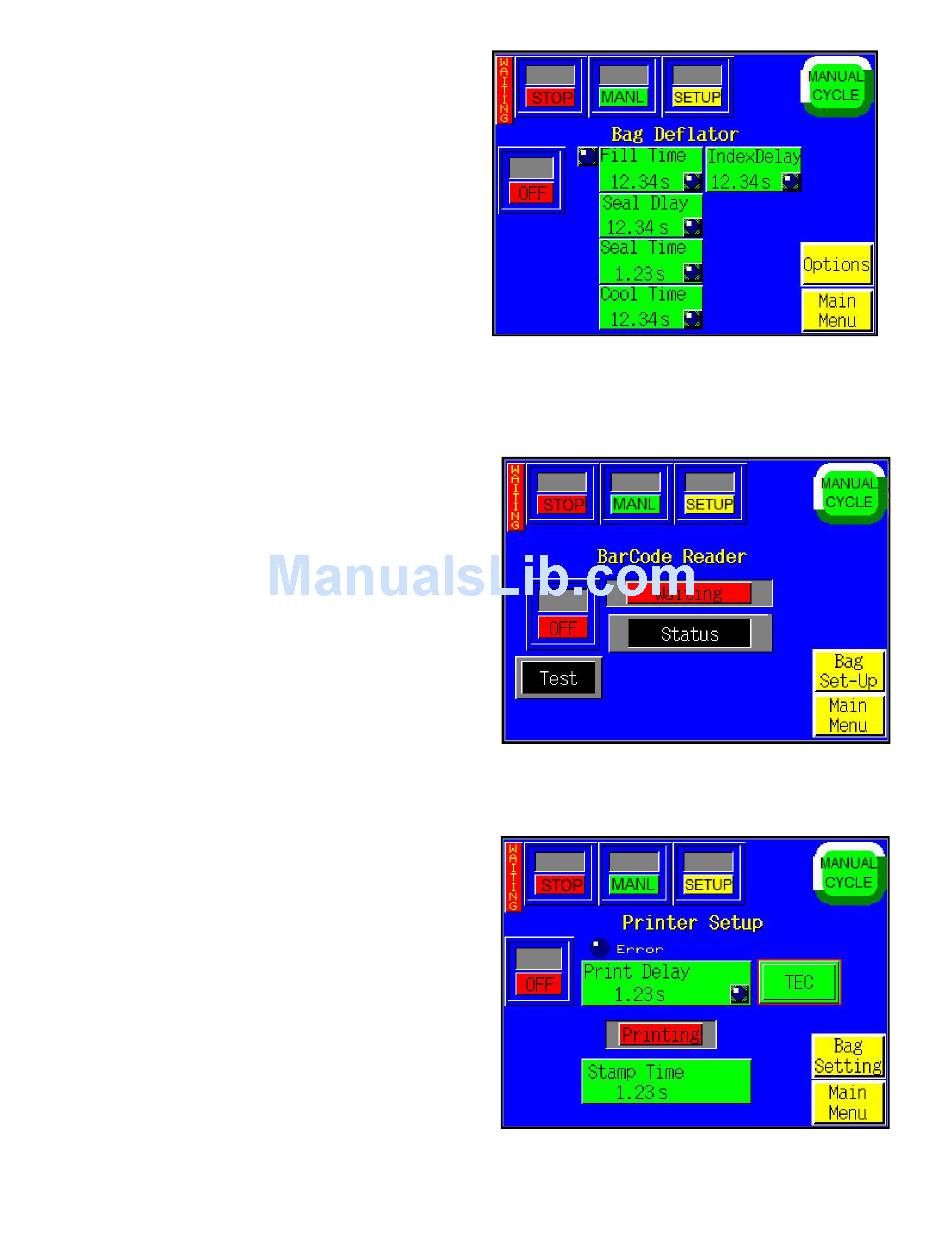

Figure 3-23
Figure 3-24
Figure 3-25
27
