3. Touch Screen Operation

This section describes in detail, the identification, operation and adjustments of the Touch Screen
Program.

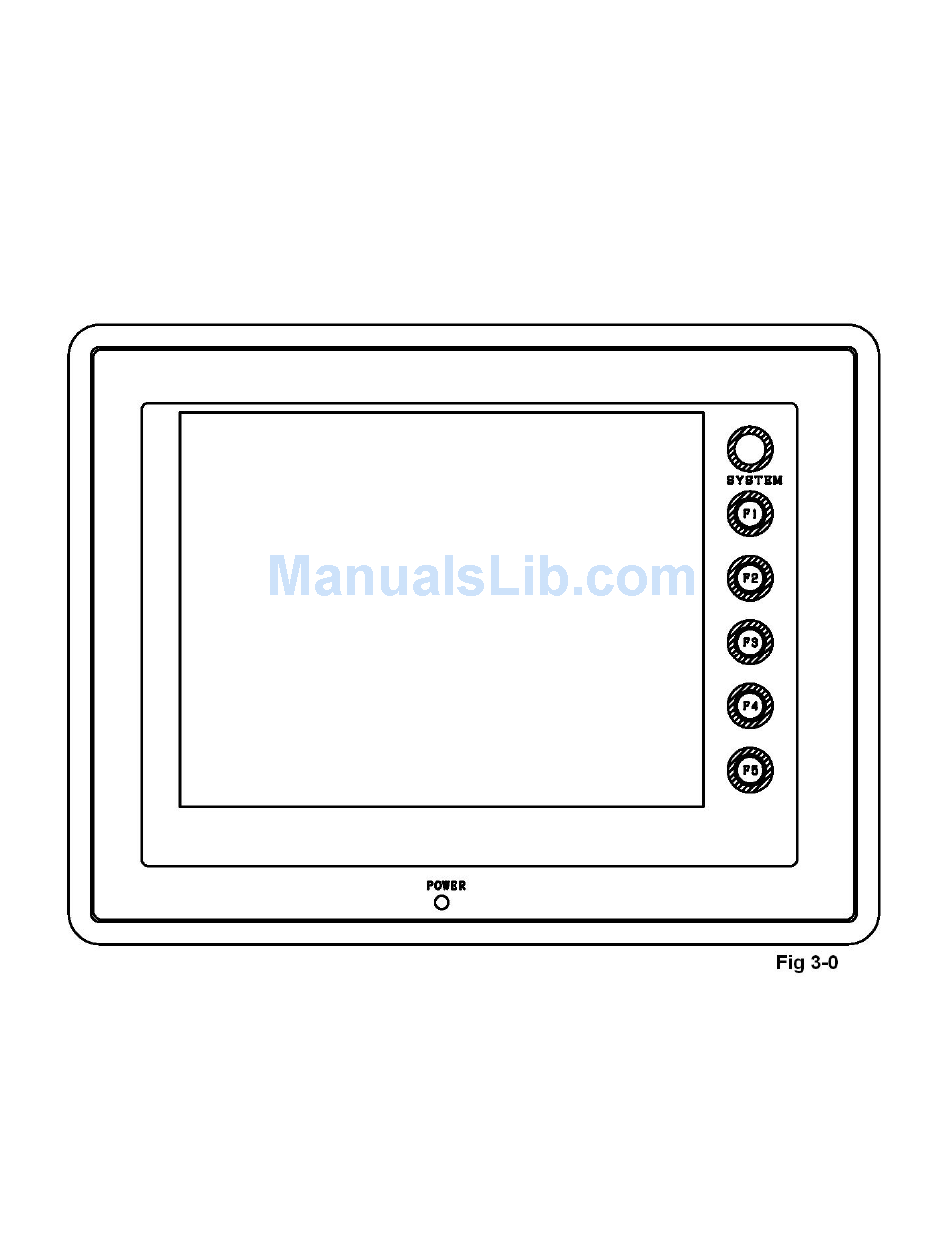

3.1 Touch Screen Identification

1 System Button
2 F1 (Help Screen)
3 F2 Increase Brightness (when system button is pressed)
4 F3 Midpoint Brightness (when system button is pressed)
5 F4 Decrease Brightness (when system button is pressed)
6 F5 Job Save / Recall
8 Green LED (Power): Lit when Touch Screen is turned on

3.2 Touch Screen Brightness Adjustment

The brightness of the LCD may be adjusted if the screen is difficult to read. To adjust the contrast, press
the <System> button, then press <F2> button to increase brightness or <F4> button to decrease
brightness. <F3> resets brightness to the default setting.
16
(See Fig. 3-0)
