FLX-3232 Installation Guide

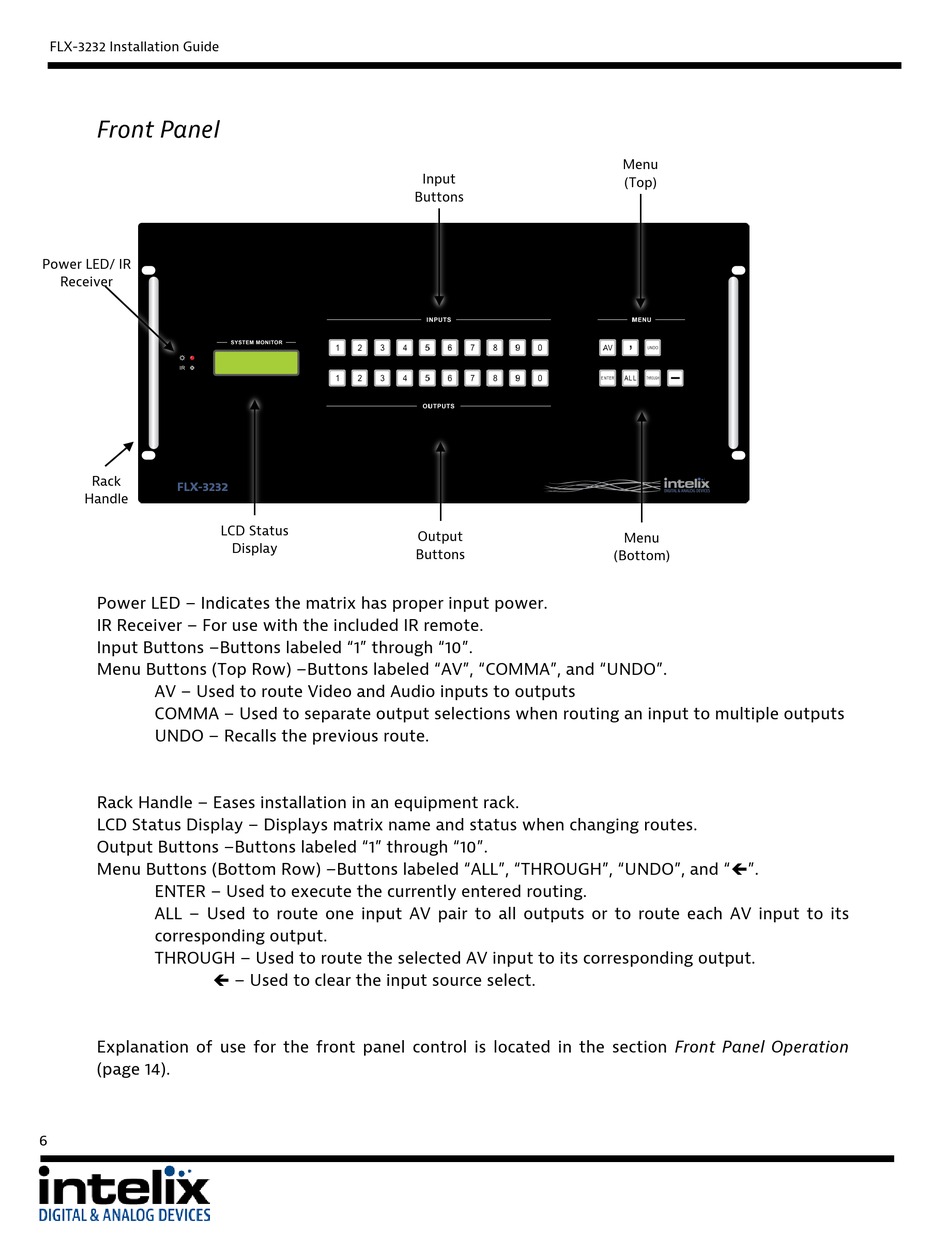

Front Panel

Power LED/ IR
Receiver
Rack
Handle
Power LED – Indicates the matrix has proper input power.
IR Receiver – For use with the included IR remote.
Input Buttons –Buttons labeled "1" through "10".
Menu Buttons (Top Row) –Buttons labeled "AV", "COMMA", and "UNDO".
AV – Used to route Video and Audio inputs to outputs
COMMA – Used to separate output selections when routing an input to multiple outputs
UNDO – Recalls the previous route.
Rack Handle – Eases installation in an equipment rack.
LCD Status Display – Displays matrix name and status when changing routes.
Output Buttons –Buttons labeled "1" through "10".
Menu Buttons (Bottom Row) –Buttons labeled "ALL", "THROUGH", "UNDO", and "".
ENTER – Used to execute the currently entered routing.
ALL – Used to route one input AV pair to all outputs or to route each AV input to its
corresponding output.
THROUGH – Used to route the selected AV input to its corresponding output.
 – Used to clear the input source select.
Explanation of use for the front panel control is located in the section Front Panel Operation
(page 14).
6
LCD Status
Display
Input
Buttons
Output
Buttons
Menu
(Top)
Menu
(Bottom)
