FLX-3232 Installation Guide

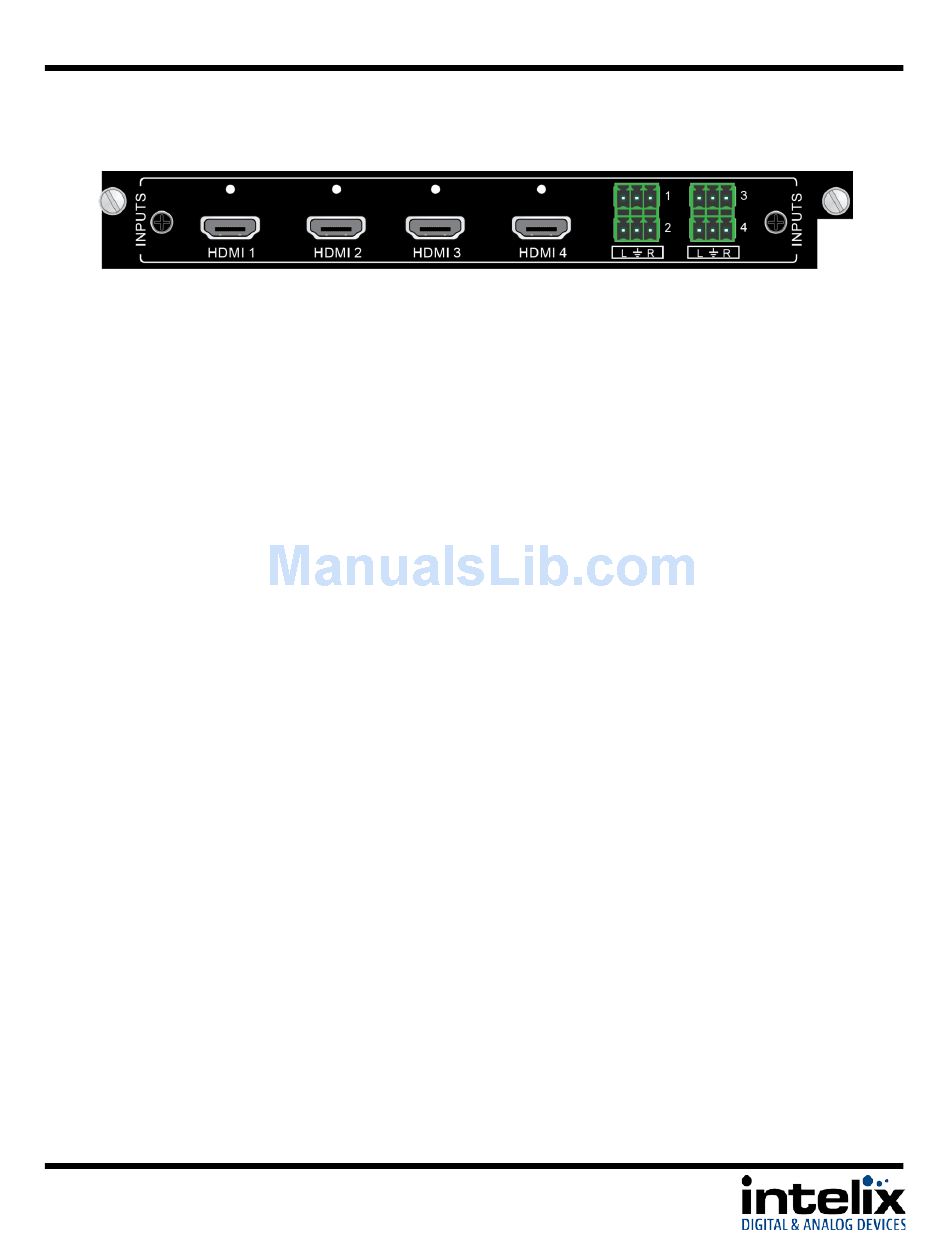

HDMI (FLX-HI4A)
The FLX-HI4 HDMI inputs can be routed to any available outputs. The HDMI inputs can accept
video signals up to 1920x1200, including 3D and 48-bit Deep Color at 1080p. Additionally, audio
signals from stereo up to 7.1 audio streams will pass through the matrix to supported outputs.
Using the euroblock connectors, stereo audio can be embedded with the HDMI video stream.
Audio source is selectable (HDMI or analog) by RS232 or TCP/IP command.
9
