Flx-Hi4A - Intelix FLX-3232 Installation And Operation Manual

FLX-3232 Installation Guide

FLX-HI4A

I/O Connections
HDMI Input
Analog Audio In
Supported Audio and Video
Maximum Video Compatibility
Video Compliance
HDMI Audio Compatibility
Analog to Digital Conversion Audio Format
Analog Audio
Performance per Channel
Pinout (Left to Right)
Input Impedance
Frequency Response
THD + Noise
HDMI Signal Characteristics
Bandwidth
Gain
Resolution Range
Crosstalk
Input Level
Chassis and Environmental
Construction
Shipping Weight
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Other
Warranty
Matrix Switcher Compatibility
28

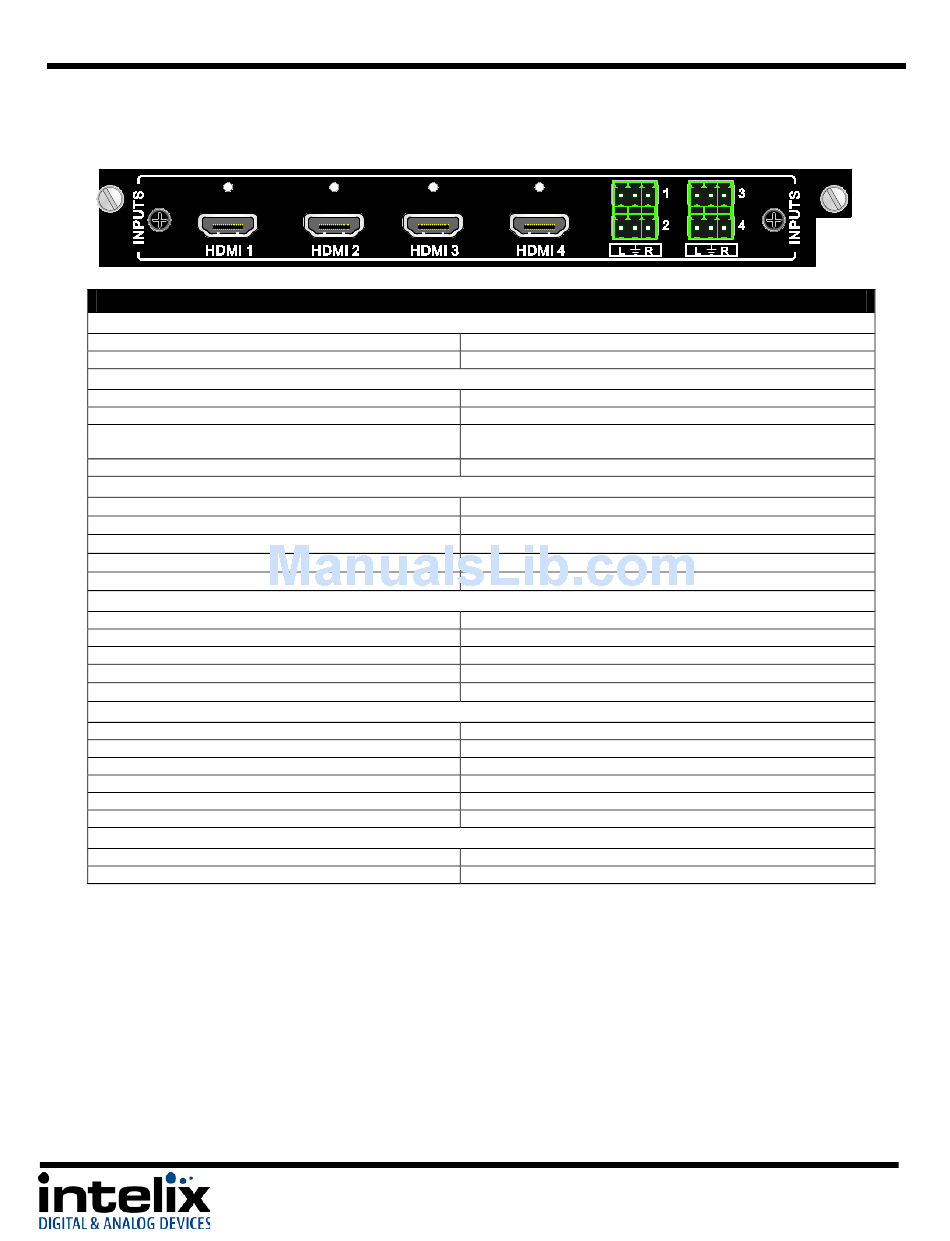

Technical Specifications
Four (4) HDMI Type A Receptacle Connector
Four (4) 3 pole Euroblock Connectors
Deep Color 48/36/30/24 Bit at 1080p, 3D
HDMI and HDCP (Selectable)
Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master
Audio
PCM 2 Channel 48kHz
Unbalanced Stereo Audio, -10 dBV nominal
Left (+), Ground, Right (+)
>10kΩ
20 Hz to 20 kHz, ±0.5 dB
< 0.002% from 20 Hz to 20 kHz
340 MHz (10.2 Gbps)
0 dB
Up to 1920x1200
< -50 dB at 5 KHz
TMDS 2.9V/3.3V
Plug-in card with keyed black metal plate
0.45 kg (1 lbs.)
0° to +40° C (+32° to +104° F)
20% to 90%, Non-condensing
-10° to +60° C (+14° to +140° F)
20% to 90%, Non-condensing
2 years
FLX-3232, FLX-3232, FLX-3232
