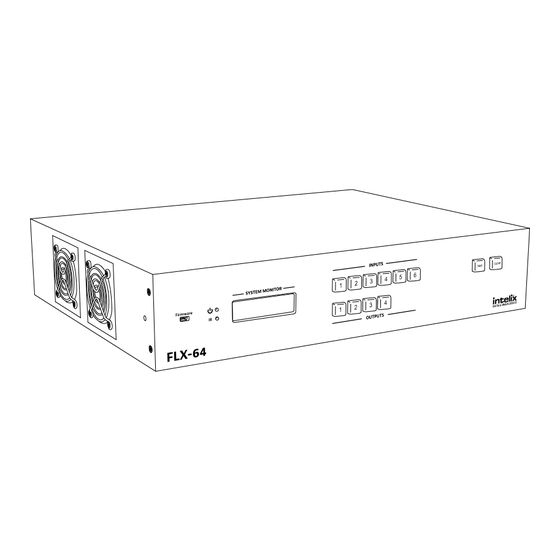

FLX-64 Installation and
Operation Guide
Rev 150904
8001 Terrace Ave
Phone: 608-831-0880
Suite 201
Toll-Free: 866-462-8649
Middleton, WI 53562
Fax: 608-831-1833

Advertisement

Table of Contents
loading

Summary of Contents for Intelix FLX-64

  • Page 1 FLX-64 Installation and Operation Guide Rev 150904 8001 Terrace Ave Phone: 608-831-0880 Suite 201 Toll-Free: 866-462-8649 Middleton, WI 53562 Fax: 608-831-1833...
  • Page 3: Important Safety Instructions

    FLX-64 Installation Guide Important Safety Instructions 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference.
  • Page 4 FLX-64 Installation Guide 26. When the apparatus is not in use or during its relocation, take care of the power cord and plugs; e.g. tie up the power cord with cable tie or similar. The tie must be free from sharp edges and the like that might cause abrasion of the power cord.
  • Page 5: Table Of Contents

    FLX-64 Installation Guide Table of Contents Important Safety Instructions ��������������������������������������������������������������������������������������������������������������������������� Product Overview ��������������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ������������������������������������������������������������������������������������������������������������������������������������� Front Panel �������������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ��������������������������������������������������������������������������������������������������������������������������������������������������������� IR Remote ������������������������������������������������������������������������������������������������������������������������������������������������������� Audio/Video Routing Diagram������������������������������������������������������������������������������������������������������������������������ Control Routing Diagrams ������������������������������������������������������������������������������������������������������������������������������ IR Routing ����������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 6 FLX-64 Installation Guide Connect TCP/IP (Ethernet) Control �������������������������������������������������������������������������������������������������������������������� Matrix Control via TCP/IP (Ethernet) ......................Router Connection ............................. Crossover Cable Connection ........................Web Browser Control ..........................Remote RS232 Control via TCP/IP Routing ....................Apply Power ������������������������������������������������������������������������������������������������������������������������������������������������������ Front Panel and IR Remote Operation �������������������������������������������������������������������������������������������������������������...
  • Page 7 FLX-64 Installation Guide RS232 and TCP/IP System Query ��������������������������������������������������������������������������������������������������������������������� Routing Queries ������������������������������������������������������������������������������������������������������������������������������������������������ Signal Status Queries ���������������������������������������������������������������������������������������������������������������������������������������� Matrix Status Queries ��������������������������������������������������������������������������������������������������������������������������������������� Display Control Queries ������������������������������������������������������������������������������������������������������������������������������������� Troubleshooting ��������������������������������������������������������������������������������������������������������������������������������������������� Matrix does not power on ��������������������������������������������������������������������������������������������������������������������������������� Cannot view 4K (UHD) content ������������������������������������������������������������������������������������������������������������������������� Cannot hear surround sound audio ������������������������������������������������������������������������������������������������������������������...
  • Page 8: Product Overview

    FLX-64 Installation Guide Product Overview The Intelix FLX-64 was designed for use in conference rooms that have two in-room inputs extended to the rack, a few local sources at the rack, two discrete displays, a VTC codec, and a recorder.
  • Page 9: Package Contents

    FLX-64 Installation Guide Package Contents Please verify the following items are in the shipping box prior to installation of the FLX-64. FLX-64 Matrix Switcher Shelf Feet with Screws 1 ea 4 ea Rack Ears with Screws US Power Cable 2 ea...
  • Page 10: Front And Rear Panels

    FLX-64 Installation Guide Front and Rear Panels Front Panel Micro USB port for firmware updating Power indicator LED LCD screen Input select buttons Take button – confirms route changes and applies new route Clear button – cancels current routing selection before change is applied...
  • Page 11: Rear Panel

    FLX-64 Installation Guide Rear Panel Balanced analog audio inputs (paired to HDMI inputs 1 and 2 only) IR input ports for each HDBaseT input IR input ports for each HDBaseT output Balanced analog audio outputs TCP/IP (Ethernet) control input; also allows control via web browser IR input to send IR commands to all remote HDBaseT devices simultaneously (IR ALL IN);...
  • Page 12: Ir Remote

    FLX-64 Installation Guide IR Remote The included IR remote performs all of the functions available on the front panel of the FLX-64. Please see page 23 for information on controlling the matrix from the front panel and the IR remote.
  • Page 13: Audio/Video Routing Diagram

    FLX-64 Installation Guide Audio/Video Routing Diagram...
  • Page 14: Control Routing Diagrams

    FLX-64 Installation Guide Control Routing Diagrams IR Routing In 5 IR In In 6 IR In Out 1 IR In Out 2 IR In Out 3 IR In Out 4 IR In IR All In IR bridge 5 IR bridge 6...
  • Page 15: Installation Instructions

    Apply power Mount the Matrix At least 2 inches of free air space is required on both sides of the FLX-64 for proper side ventilation. Avoid mounting the FLX-64 near a power amplifier or any other source of significant heat.
  • Page 16: Connect Ground

    The HDBaseT ports provide 15 watts of Power over Ethernet to 48 volt based HDBaseT devices, which eliminates the need for a power supply with a compatible HDBaseT device. All Intelix branded HDBaseT transmitters and receivers that accept remote power are compatible with the FLX-64.
  • Page 17: Connect Displays

    Using the included removable 5-pole terminal blocks, make a cable to interface between the audio device and the FLX-64 as shown in the drawing above. Consult the documentation for the audio device to identify the left, left ground, right, and right ground audio signals.
  • Page 18: Analog Audio Input

    DIGI-HD60C-R. Only use the included IR receiver or the included IR adapter cables with the FLX-64. The IR adapter cables allow third party controllers to connect directly to the IR input ports of the FLX-64. If addition IR receivers are required, the DIGIB-EYE is a compatible substitute.
  • Page 19: Source Device Control Via Remote Ir

    FLX-64 Installation Guide Source Device Control via Remote IR An IR signal passed directly from the matrix location or from a third party control system can provide control of the source device through the HDBaseT connection. Insert a compatible IR receiver or the red TRS 3.5 mm plug labeled “This end to matrix“...
  • Page 20: Concealed Matrix Control Via Ir

    Concealed Matrix Control via IR When the FLX-64 is installed in an equipment rack or other concealed location, access to the front panel for normal IR control may be difficult. The IR EYE input allows the IR remote to control the matrix.
  • Page 21: Remote Rs232 Control Via Rs232 Routing

    RS232 control. Remote RS232 Control via RS232 Routing The FLX-64 has the logic to pass RS232 commands to remote devices through the DE9 RS232 port. Please see page 36 for more information on how to implement this feature in an installation.
  • Page 22: Router Connection

    Web Browser Control The FLX-64 includes a web portal to allow control of the matrix via a standard web browser. The IP address is the same address that is used for TCP/IP control. See page 25 for detailed information regarding the web browser interface, including customization.
  • Page 23: Front Panel And Ir Remote Operation

    Setting a route using the front panel of the matrix will only route the input signal to the digital video output. There is be no change to the analog audio output route. To set a route using the front panel of the FLX-64: Press the desired input button (source).
  • Page 24: Ir Remote Operation

    FLX-64 Installation Guide IR Remote Operation The buttons on the IR remote are identical to the buttons on the front panel of the FLX-64. The IR routing command sequences are identical to the front panel command sequences. The Standby button will send the matrix to a low power state. Pressing the Standby button a second time will...
  • Page 25: Web Browser Control

    FLX-64 Installation Guide Web Browser Control User Login FLX-64 Open a web browser and go to the IP address of the FLX-64. The default IP address is 192.168.0.178. Login Username: Administrator Password: FLX-64 Select User from the UserName drop-down. Login...
  • Page 26: Matrix Routing - Audio Separate From Video

    Room Control The FLX-64 has a Room Control tab, which can turn on and off the video output or the analog audio output for each output zone. If the connected displays have RS232 control, power off and power on commands for the displays may be transmitted when the Display off and on commands are activated.
  • Page 27: Administrator Login

    FLX-64 Installation Guide Administrator Login FLX-64 Open a web browser and go to the IP address of the FLX-64. The default IP address is 192.168.0.178. Login Username: Administrator Password: FLX-64 Select Administrator from the UserName drop-down. Login Username: Administrator User...
  • Page 28: Rs232 And Tcp/Ip Control

    FLX-64 Installation Guide RS232 and TCP/IP Control RS232 Settings: 9600 baud, 8 Data bits, 1 Stop bit, Parity = None TCP/IP Settings: User defined IP address (default IP address: 192.168.0.178), port 8080 There is either a period (.) or a semicolon (;) at the end of each command. These characters must be present for the command to process correctly.
  • Page 29: Preset Commands

    FLX-64 Installation Guide Preset Commands The FLX-64 can store up to 10 presets of audio and video routes. These routes can be configured to be audio follows video and/or audio and video are separate. Description Command Response Savex. Save to Fx<CR><LF>...
  • Page 30: Edid Settings

    Input HDCP Settings HDCP is enabled on all inputs of the FLX-64. If the video output of the matrix is going to a video recorder, video converencing system, or other non-HDCP compliant device, the HDCP input compliance will need to be disable to view non-encrypted content.
  • Page 31: Web Browser Configuration

    FLX-64 Installation Guide Web Browser Configuration When changes are made on a setup tab, the Save button must be pressed for the changes to take effect. Users Tab The Users setup screen provides options to change the Administrator and User passwords. The front panel can also be locked to prevent tampering from this screen.
  • Page 32: Hdcp, Edid, And Audio Configuration Tab

    FLX-64 Installation Guide HDCP, EDID, and Audio Configuration Tab The Configuration setup screen has options to turn on and off the HDCP compliance flag for an input, select the audio input source for inputs 1 and 2, enable or disable the digital audio output, and copy the EDID from an output to an input.
  • Page 33: Network Tab (Ip Address)

    Display Control Out Tab The FLX-64 has the ability to turn on and off the HDBaseT connected displays via RS232 when the matrix is powered on or off and when the video output is turned on and off through the Room Control tab on the main routing screen.
  • Page 34: Display Control In Tab

    Display Control In Tab The FLX-64 has the ability to turn on and off the HDBaseT connected sources via RS232 when the matrix is powered on or off. The baud rate is selectable from the dropdown list on the right side next to each output command setting (2400, 4800, 9600, 19200, 38400, 57600, and 115200 baud).
  • Page 35: Rs232 And Tcp/Ip Configuration

    FLX-64 Installation Guide RS232 and TCP/IP Configuration Front Panel Lock The front panel lock prevents digital video switching from being activated via the front panel. Description Command Response /%Lock; System Locked!<CR><LF> Lock the front panel keys /%Unlock; System Unlock!<CR><LF> Unlock the front panel keys...
  • Page 36: Edid Configuration

    Immediate RS232 Routing to HDBaseT The FLX-64 has the logic to pass RS232 commands to remote devices through the TCP/IP or DE9 RS232 ports. The destination command string is embedded in a command which includes the destination HDBaseT port and baud rate.
  • Page 37: Power On Rs232 Routing To Hdbaset

    FLX-64 Installation Guide Power On RS232 Routing to HDBaseT In addition to immediate transmission, the FLX-64 can store commands to be broadcast when the matrix is powered on through the standby commands (PWON., STANBY., and PWOFF.). The format of the RS232 routing string is: /+<Y>/<B>:<$>. (The period at the end of the string is required.) <Y>...
  • Page 38: Rs232 And Tcp/Ip System Query

    FLX-64 Installation Guide RS232 and TCP/IP System Query Routing Queries Description Command Response Statusy. xxVyy<CR><LF> Output yy routing status (only 1 digit) xxAyy<CR><LF> Status. xxVyy<CR><LF> Routing status of all outputs. xxAyy<CR><LF> (Repeating sequence starting with output 1, output 2, etc.) %9965.
  • Page 39: Matrix Status Queries

    FLX-64 Installation Guide Matrix Status Queries Description Command Response /*Type; FLX-64 <CR><LF> Get model number /^Version; V1.0.2 <CR><LF> Check the software version %9961. System Locked!<CR><LF> or Query system lock state System Unlock!<CR><LF> %9962. PWON <CR><LF> or Query standby state STANDBY <CR><LF> or PWOFF <CR><LF>...
  • Page 40: Troubleshooting

    FLX-64 Installation Guide Troubleshooting Matrix does not power on » Verify power outlet is active. » Verify continuity in power cable. Cannot view 4K (UHD) content Copy EDID from output to input. » Verify display is 4K (UHD) compatible. »...
  • Page 41: Technical Specifications

    FLX-64 Installation Guide Technical Specifications Input/Output Connections HDMI Inputs (Inputs 1 through 4) Four (4) HDMI Type A Receptacle HDBaseT Inputs (Inputs 5 and 6) Two (2) 8P8C Port (Shielded RJ45 Female) Two (2) 5-Pole/3.5mm Euroblock Balanced Analog Audio Inputs (Inputs 1 and 2 only) IR Input Tunnel (Inputs 5 and 6, Outputs 1 through 4) Six (6) 3.5mm TRS...
  • Page 42 FLX-64 Installation Guide Device Control Parameters IR Carrier Frequency Range 33-55kHz at 5 volts Ethernet 100BaseT 9600 baud RS232 Baud Rate Chassis and Environmental Enclosure Painted Aluminum Dimensions 89 mm x 437 mm x 332 mm (3.5 in x 17.2 in x 13.1 in) – 2 RU Shipping Weight 6.5 kg (14.4 lbs.)
  • Page 43 FLX-64 Installation Guide...
  • Page 44 Please contact us with your questions and comments. Intelix 8001 Terrace Ave, Ste 201 Middleton, WI 53562 Phone: 608-831-0880 Toll Free: 866-462-8649 Fax: 608-831-1833 www.intelix.com supportlibav@libav.com Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
