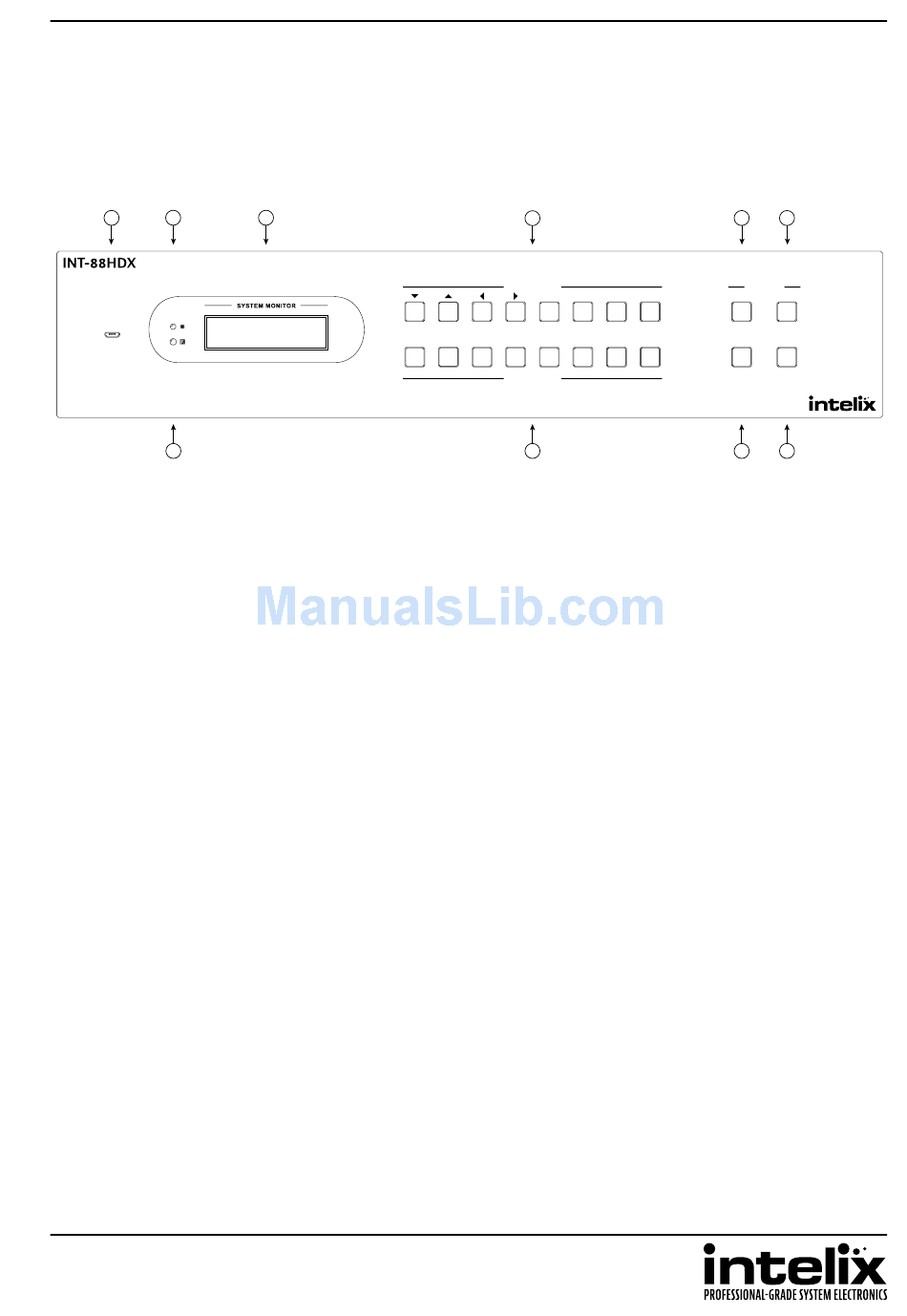

Front Panel

1 2
FIRMWARE
7
1. Micro USB port for firmware updating
2. Power indicator LED
3. LCD screen
4. Input select and LCD navigation buttons
5. All button – routes selected input to all outputs
6. EDID button – change EDID settings for inputs
7. IR receiver for matrix control via IR remote
8. Output select buttons
9. Clear button – cancels current routing selection before change is applied
10. Enter button – confirms route changes and applies new route; enter status menu

Front and Rear Panels

3
1
4
INPUTS
2 3 4 5 6 7
OUTPUTS
8
INT-88HDX
Installation Guide
5
6
MENU
8 ALL EDID
CLEAR ENTER
9 10
7
