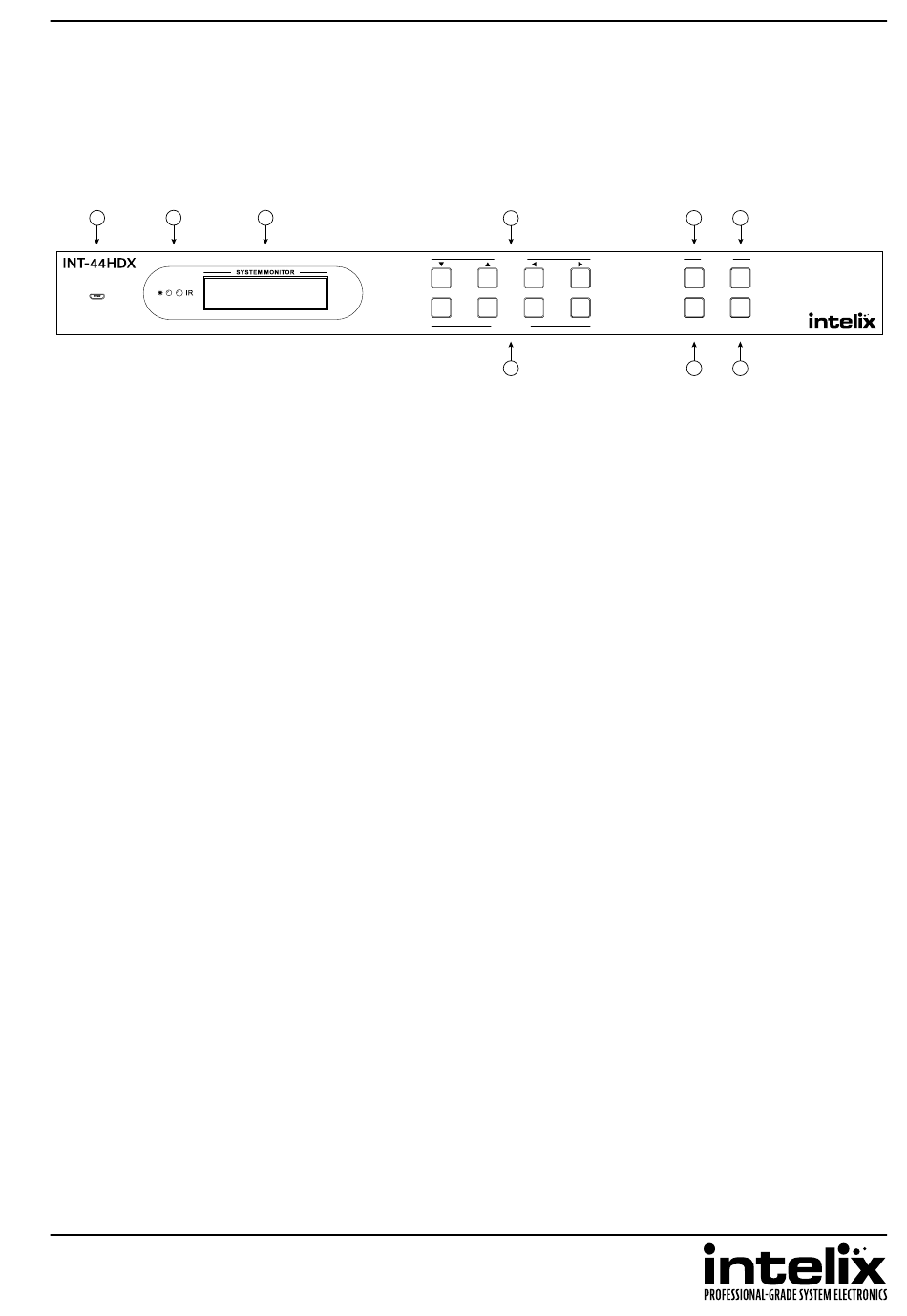

Front Panel

1 2
FIRMWARE
1. Micro USB port for firmware updating
2. Power indicator LED; IR receiver for matrix control via IR remote
3. LCD screen
4. Input select and LCD navigation buttons
5. All button – routes selected input to all outputs
6. EDID button – change EDID settings for inputs
7. Output select buttons
8. Clear button – cancels current routing selection before change is applied
9. Enter button – confirms route changes and applies new route; enter status menu

Front and Rear Panels

3
4
INPUTS
1 2 3 4
OUTPUTS
7
INT-44HDX
Installation Guide
5 6
MENU
ALL EDID
CLEAR ENTER
8 9
7
