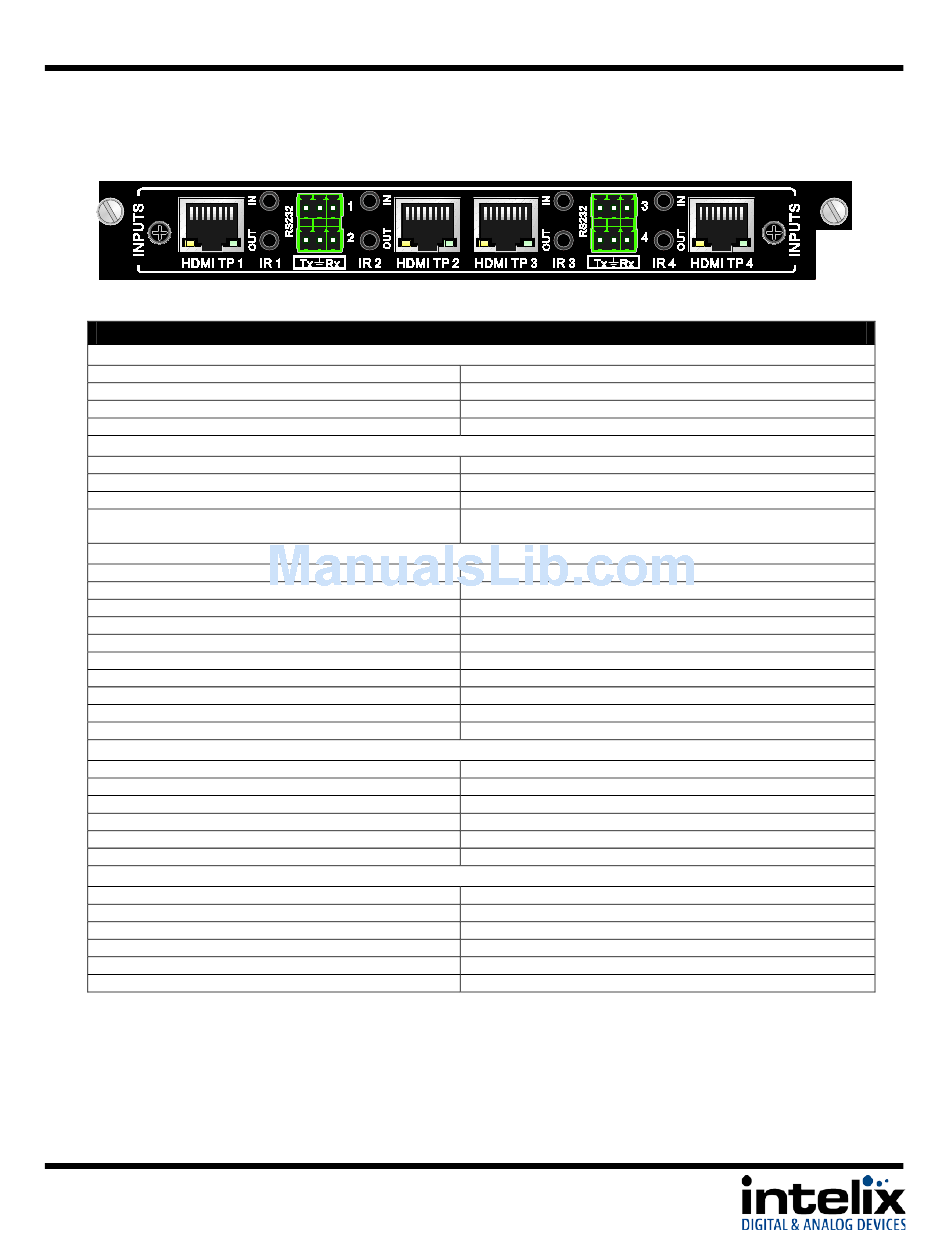

FLX-BI4

I/O Connections
HDBaseT Port
IR In
IR Out
RS232
Supported Audio and Video
Maximum Video Compatibility at 70 m
Maximum Video Compatibility at 40 m
Video Compliance
Embedded Audio
HDBaseT Signal Characteristics
Maximum Distance
Cable Requirements
Bandwidth
Gain
Resolution Range
Signal to Noise Ratio (SNR)
Return Loss
Total Harmonic Distortion (THD)
Min-Max Signal Level
Differential Phase Error
Chassis and Environmental
Construction
Shipping Weight
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Other
Warranty
Matrix Switcher Compatibility
HDBaseT Transmitter (A/V and Control) Compatibility
HDBaseT Transmitter (A/V Only) Compatibility
Infrared (IR) Emitter
Infrared (IR) Receiver
Technical Specifications
Four (4) 8P8C port (Shielded RJ45)
Four (4) 3.5 mm TS (Requires DIGIB-EYE)
Four (4) 3.5 mm TRS (Requires DIGIB-EMT)
Four (4) 3 pole Euroblock Connectors
Deep Color 36/30/24 Bit at 1080p
Deep Color 48 Bit at 1080p, 3D
HDMI and HDCP
Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master
Audio
70 m
Category 5e, 6, or 6A with TIA/EIA-568B crimp pattern
10.2 Gbps
0 dB – 10 dB at 100 MHz
800x600 – 1920x1200
> 70 dB at 100 MHz over 100 m
< -30 dB at 5 KHz
< 0.005% at 1 KHz
< 0.3 V – 1.45 Vp-p
±10° at 135 MHz over 100 m
Plug-in card with keyed black metal plate
0.43 kg (0.95 lbs.)
0° to +40° C (+32° to +104° F)
20% to 90%, Non-condensing
-10° to +60° C (+14° to +140° F)
20% to 90%, Non-condensing
2 years
FLX-8X8A, FLX-3232, FLX-3232, FLX-3232
DIGI-HDE-S, DIGI-HD60C-S
DIGI-HD70-S
DIGIB-EMT
DIGIB-EYE
