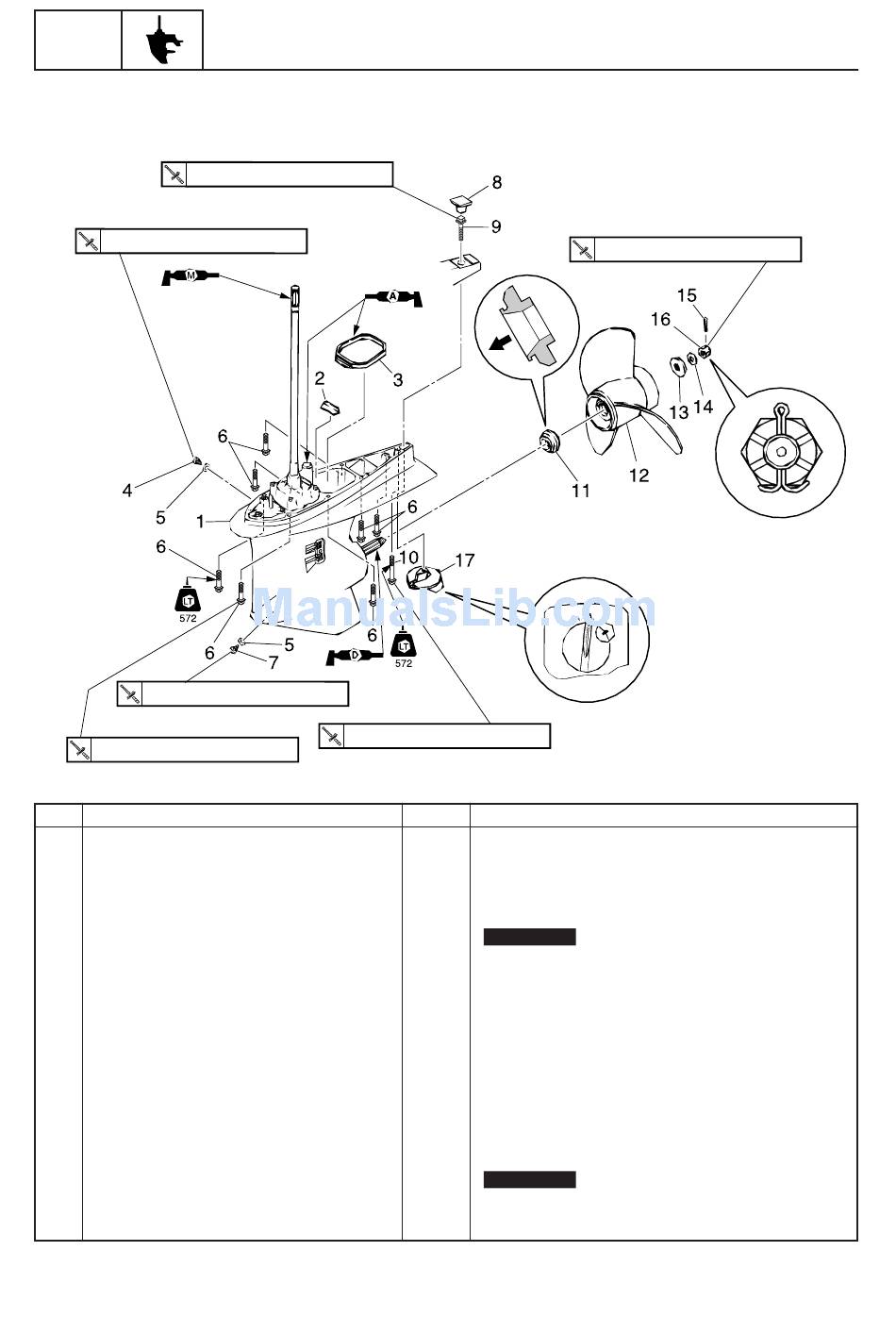

Lower unit (regular rotation model)

42 N·m (4.2 kgf·m, 31.0 ft·lb)
9 N·m (0.9 kgf·m, 6.6 ft·lb)
9 N·m (0.9 kgf·m, 6.6 ft·lb)
47 N·m (4.7 kgf·m, 34.7 ft·lb)
No.
1

Lower unit

2 Plate
3 Rubber seal
4 Check screw
5 Gasket
6 Bolt
7 Drain screw
8 Grommet
9 Bolt
10 Bolt
11 Spacer
12 Propeller
13 Washer
14 Washer
15 Cotter pin
16 Propeller nut
17 Trim tab
6-1
Lower unit
47 N·m (4.7 kgf·m, 34.7 ft·lb)
Part name Q'ty
1
1
1
1
2 Not reusable
M10 × 45 mm
7
1
1
M10 × 45 mm
1
M10 × 70 mm
1
1
1
1
1
1 Not reusable
1
1
54 N·m (5.4 kgf·m, 39.8 ft·lb)
Remarks
6S36010E
6S35H11
