INSTALLATION AND OPERATION MANUAL
Hardware description
The ComNet™ CNFE2MC2C[/M] contact over Ethernet module supports up to 2 bi-directional
contact closures over Cat5/6 cable, or 1 or 2 optical fibers. All configurations are done through
its web server. The CNFE2MC2C[/M] has two contact inputs and two contact outputs, which
communicate through the network. Distances depend on which SFP (Small Form Pluggable)
module is used.
I
I
Tech Support: 1.888.678.9427

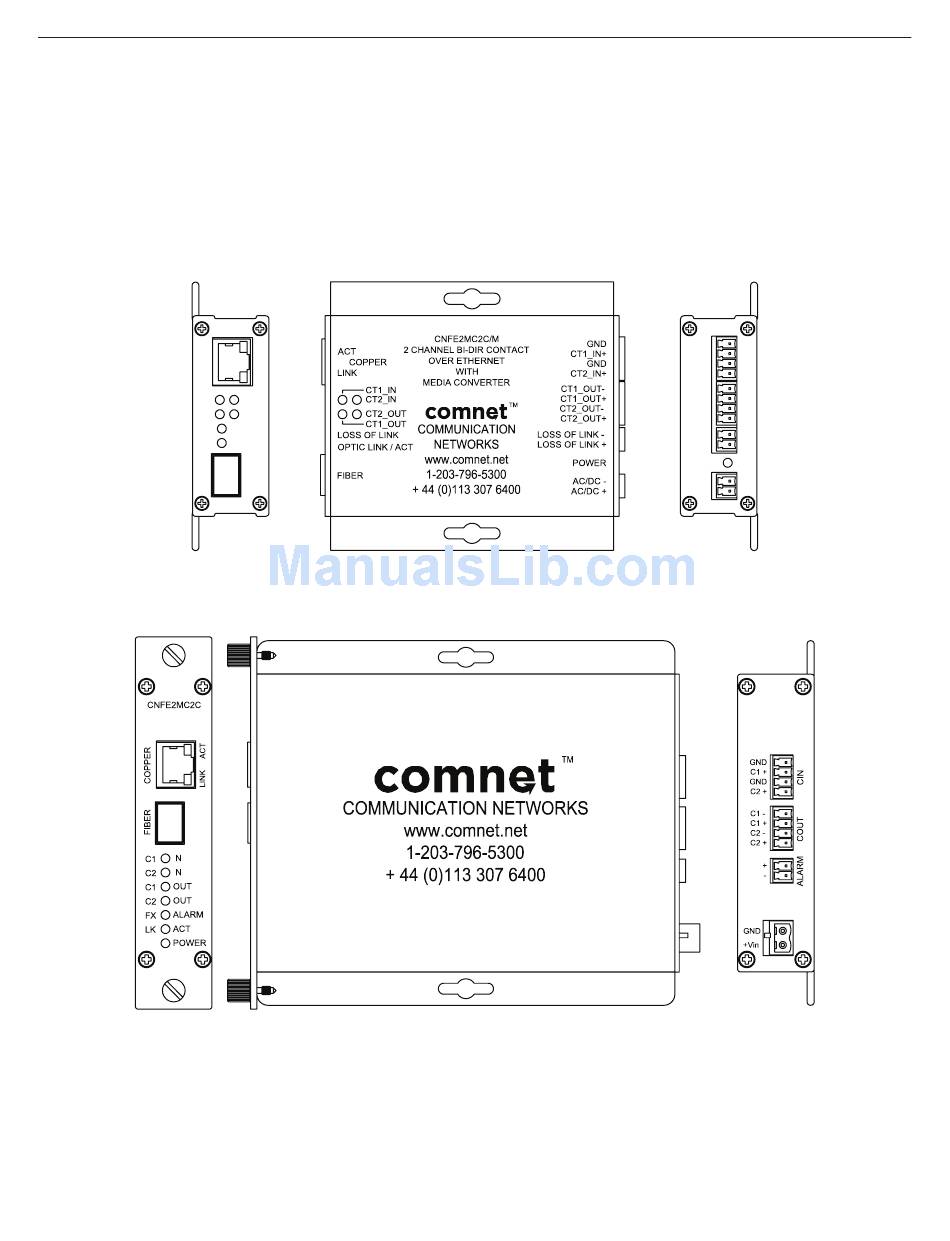

Mechanical Drawing of CNFE2MC2C/M MODULE
Mechanical Drawing of CNFE2MC2C MODULE
CNFE2MC2C[/M]
INS_CNFE2MC2C[/M]_REV–
01/18/12 PAGE 3
