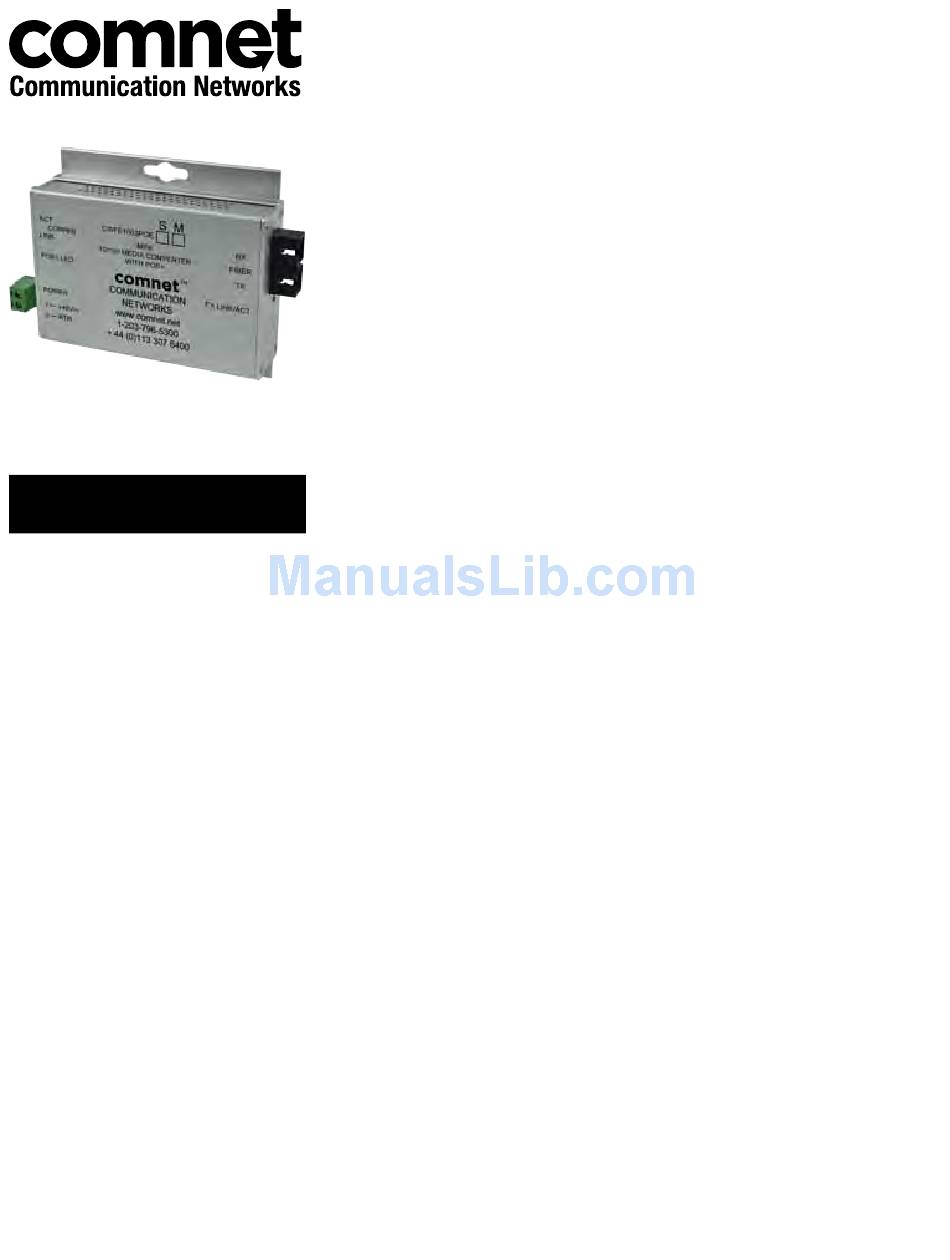

Comnet CWFE1003POEM/M Installation And Operation Manual

This manual serves the following
ComNet Model Numbers:
CWFE1003POEM/M
CWFE1003POEMHO/M
CWFE1003POES/M
CWFE1003POESHO/M
CWFE1005POEM/M
CWFE1005POEMHO/M
CWFE1005POES/M
CWFE1005POESHO/M
CWFE1004APOEM/M
CWFE1004BPOEM/M
CWFE1004APOEMHO/M
CWFE1004BPOEMHO/M
CWFE1004APOES/M
CWFE1004BPOES/M
CWFE1004APOESHO/M
CWFE1004BPOESHO/M
CWFE1002APOEM/M
CWFE1002BPOEM/M
CWFE1002APOEMHO/M
CWFE1002BPOEMHO/M
CWFE1002APOES/M
CWFE1002BPOES/M
CWFE1002APOESHO/M
CWFE1002BPOESHO/M
CWFESFPMCPOE30/M
CWFESFPMCPOE60/M
Installation And Operation Manual
CWFE100(X) PoE Series
10/100 MbPS EthERNEt FIbER OPtIC
MEdIA CONVERtER WIth 30W OR 60W POE+

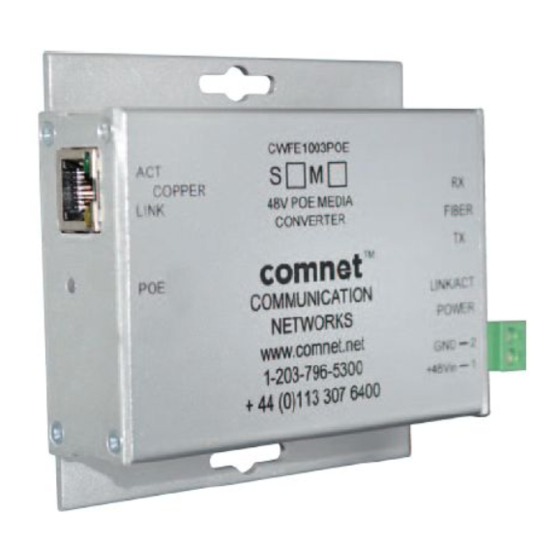

the ComNet CWFE100(X)POE(M,S)/M Series 10/100Mbps Ethernet media converters
™
provide full-duplex fiber optic transmission of a single channel of 10/100bASE-t(X) data
through multimode or single mode optical fiber. type St, SC or SFP optics are available.
they provide full compliance with IEEE 802.3at as Power Sourcing Equipment (PSE),
with a maximum power of 30 watts in Mode A or Mode b, making them ideal for those
applications where the remote equipment draws significant power. A higher output 60
watt model is available.
Mode A and mode b are selected by the media converter automatically. the Ethernet
electrical interface auto-negotiates to either 10 or 100Mbps without the need for any
user selection, and the 100bASE-FX optical interface operates at 100Mbps.
Led Indicators are provided for rapidly ascertaining the operating status of the
device. See Figure 9 on Page 6 for an explanation of the LEd Indicators.
Packaged in a rugged, compact sized housing, these units are designed for shelf or
stand-alone mounting, or may be dIN-rail mounted by the addition of ComNet model
dINbKt2 Adaptor plate kit. See Figure A on Page 7 for mounting instructions.
See Figures 1 – 11 for complete installation instructions.
INS_CWFE100(X) POE SERIES_REVA
08/10/11
PAGE 1
