INSTALLATION AND OPERATION MANUAL

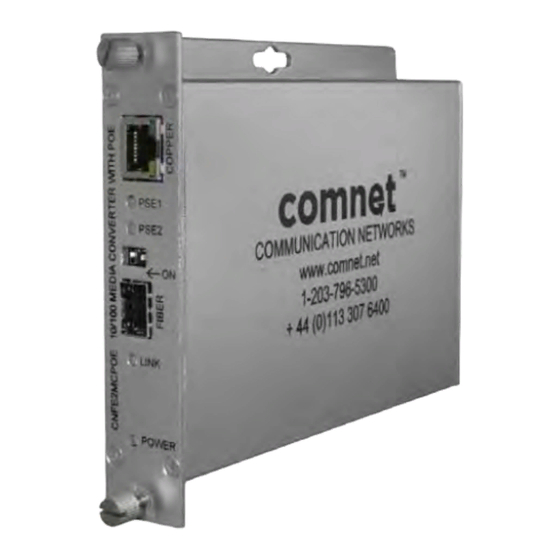

CNFE2MCPOE
10/100 MBPS 2 PORT MEDIA CONVERTER
WITH POWER OVER ETHERNET
The ComNet™ CNFE2MCPOE Ethernet 2 port media converter is designed
to transmit and receive 10/100 Mbps data over optical fiber through user
selectable SFP modules. These models require the ordering of sold-separately
interchangeable SFP modules for fiber type, distance and connectors.
The CNFE2MCPOE transmits and receives a single channel of Ethernet
data. It also supports IEEE 802.3at as Power Sourcing Equipment (PSE) with
up to 25 Watts output, both in Mode A or Mode B. The electrical interface
will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any
adjustments. The optical interface operates at a 100 Mbps Ethernet rate. It is
environmentally hardened to operate in extreme conditions.
LED indicators are provided for confirming equipment operating status. See
Figure 3 on Page 3 for LED indicator descriptions.
See Figures 1 – 5 for complete installation details.
The CNFE2MCPOE operates as a standalone module. See Page 4 for mounting
instructions.
INS_CNFE2MCPOE_REV–
07/28/10
PAGE 1
