INSTALLATION AND OPERATION MANUAL
» Change Contact input/output settings as shown in Table 1.
Local Network Port Number
Remote Network Port Number
Network Mode
Network Protocol
Server IP
TCP/IP Timeout
» Save the configuration changes. Connect this unit and another unit with default configurations
to your local network as shown in Figure 10. The contacts will be linked between the units
through the network.
Tech Support: 1.888.678.9427
Contact Input
23
Server
TCP/IP
0
Table 1 – Contact Input/Output Settings

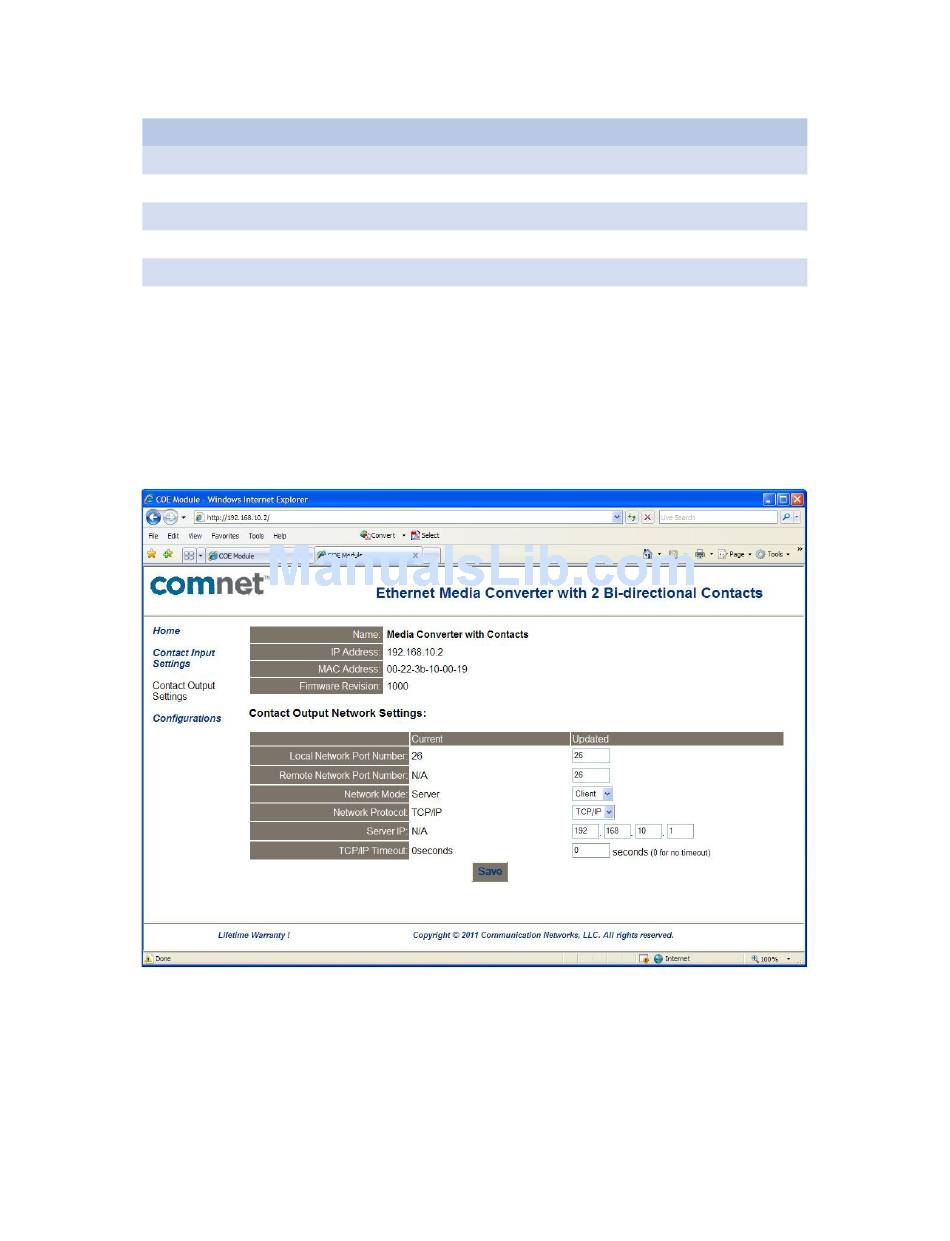

Figure 7 – CNFE2MC2C[/M] Settings Page in Client Mode
CNFE2MC2C[/M]
Contact Output
26
26
Client
TCP/IP
192.168.10.1
0
INS_CNFE2MC2C[/M]_REV–
01/18/12 PAGE 10
