Instructions in this manual
apply to the following
model numbers:
CNMC2+1SFP
CNMC2+1SFP/M
INSTALLATION AND OPERATION MANUAL
CNMC2+1SFP[/M]
2 CHANNEL 10/100/1000 MBPS ETHERNET
ELECTRICAL TO OPTICAL MEDIA CONVERTER

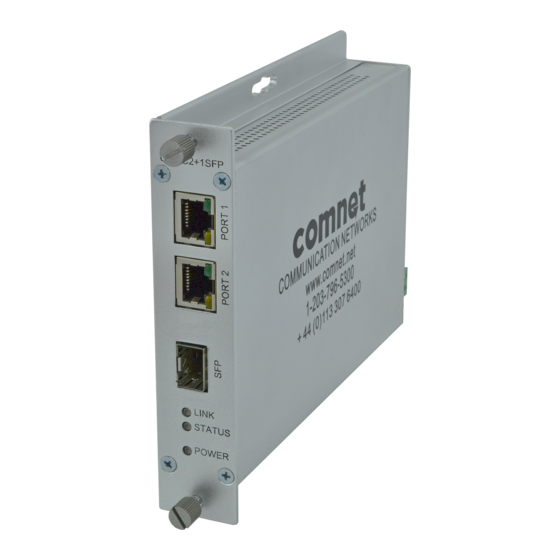

The ComNet Ethernet CNMC2+1SFP electrical-to-optical Ethernet media converters
accept two 10/100 or 1000 Mbps electrical inputs and converts this to a single 100
or 1000 Mbps optical output (selected by a DIP switch) and the 100/1000 Mbps
optical input back to the 10/100/1000 Mbps electrical output. "Auto-Negotiating" is
supported on the copper interface side. These devices use either one or two optical
fibers, depending upon the selection of sold-separately SFP optical module. The
ComNet exclusive Demux feature allows for port isolation, replicating two media
converters over one fiber. The ComNet exclusive Mux feature prevents network video
flooding of multicast traffic with DIP switch selection of the fiber port as a dedicated
uplink path. The CNMC2+1SFP series can be powered by wide range of AC or DC input
power supplies.
LED indicators confirm operational status. All models are environmentally hardened
with no electrical or optical adjustments (Plug and Play). DIP Switches on the outside of
each unit allow for fine-tuning of features. See Figures 1 – 12 for complete operation
details. See Figures A and B for mounting instructions.
INS_CNMC2+1SFP Series 10/18/14 PAGE 1
Advertisement
Table of Contents
Related Manuals for Comnet CNMC2+1SFP
Summary of Contents for Comnet CNMC2+1SFP
- Page 1 The ComNet exclusive Mux feature prevents network video flooding of multicast traffic with DIP switch selection of the fiber port as a dedicated uplink path. The CNMC2+1SFP series can be powered by wide range of AC or DC input power supplies.
- Page 2 INSTALLATION AND OPERATION MANUAL CNMC2+1SFP[/M] FIGURE 1 – Standard Mount CNMC2+1SFP FIGURE 2 – Standard Mount CNMC2+1SFP FRONT PANEL REAR PANEL CAT5/6 DIP Switches (See Fig 6) CAT5/6 Multimode or Single Mode, Fault Relay 1 or 2 Optical Fibers 0-36V, 190mA (AC or DC)
- Page 3 INSTALLATION AND OPERATION MANUAL CNMC2+1SFP[/M] FIGURE 3 – Mini CNMC2+1SFP/M FIGURE 4 – Mini CNMC2+1SFP/M FRONT PANEL REAR PANEL CAT5/6 DIP Switches (See Fig 6) CAT5/6 STATUS LED (See Fig 5) LINK LED (See Fig 5) POWER LED (See Fig 5)
-
Page 4: Installation And Operation Manual
- Link Fault is enabled on the local CNMC2+1SFP unit and a copper port has been disconnected. - Fiber Fault is enabled on the local CNMC2+1SFP unit and the fiber link is down or the power has been lost to either the local or remote CNMC2+1SFP unit. - Page 5 INSTALLATION AND OPERATION MANUAL CNMC2+1SFP[/M] FIGURE 9 – MUX Disabled FIGURE 10 – MUX Enabled Multicast traffic will be flooded on all ports. IGMP is Enabled on the CWGE2FE24MODMS Managed Switch. Multicast traffic is diverted only to the fiber port preventing flooding on the local device.
- Page 6 T: 203.796.5300 | F: 203.796.5303 | TECH SUPPORT: 1.888.678.9427 | INFO@COMNET.NET 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2018 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo”...
