INSTALLATION AND OPERATION MANUAL
CNFE2MCPOE[/M]
10/100 MBPS 2 PORT MEDIA CONVERTER
WITH POWER OVER ETHERNET

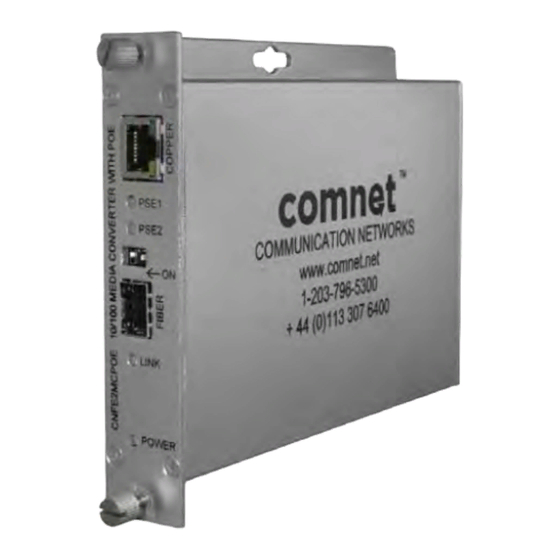

The ComNet™ CNFE2MCPOE Ethernet 2 port media converter is designed to
transmit and receive 10/100 Mbps data over optical fiber through user selectable
SFP modules. These models require the ordering of sold-separately interchangeable
SFP modules for fiber type, distance and connectors.
The CNFE2MCPOE transmits and receives a single channel of Ethernet data. It also
supports IEEE 802.3at as Power Sourcing Equipment (PSE) with up to 30 Watts
output, both Mode A or Mode B are supported. The electrical interface will Auto-
Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments.
The optical interface operates at a 100 Mbps Ethernet rate. It is environmentally
hardened to operate in extreme conditions.
LED indicators are provided for confirming equipment operating status. See Figure
5 on Page 4 for LED indicator descriptions.
See Figures 1 – 7 for complete installation details.
The CNFE2MCPOE operates as a standalone module. It can also be mounted in a
ComNet Rack, but PoE operation is not supported in this application. See Page 6 for
mounting instructions.
INS_CNFE2MCPOE[/M]_REV–
07/28/10
PAGE 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Comnet CNFE2MCPOE
Summary of Contents for Comnet CNFE2MCPOE
- Page 1 5 on Page 4 for LED indicator descriptions. See Figures 1 – 7 for complete installation details. The CNFE2MCPOE operates as a standalone module. It can also be mounted in a ComNet Rack, but PoE operation is not supported in this application. See Page 6 for mounting instructions.
-
Page 2: Front Panel
INSTALLATION AND OPERATION MANUAL CNFE2MCPOE[/M] FIGURE 1 – CNFE2MCPOE MEDIA CONVERTER CAT5e/6 OPTICAL FIBER DETERMINED BY SELECTION OF SFP MODULE BLACK BLACK WITH WHITE STRIPE Power: 12VDC @ 3A, 24VDC@1.5A NOTE: Remove Electrical Connector for Rack Mount Units. PoE is not supported when mounted within ComNet rack. - Page 3 INSTALLATION AND OPERATION MANUAL CNFE2MCPOE[/M] FIGURE 3 – CNFE2MCPOEM MEDIA CONVERTER CAT5e/6 OPTICAL FIBER DETERMINED BY SELECTION OF BLACK SFP MODULE BLACK WITH WHITE STRIPE Power: 12VDC @ 3A, 24VDC@1.5A FIGURE 4 – CNFE2MCPOEM MEDIA CONVERTER FRONT PANEL REAR PANEL INS_CNFE2MCPOE[/M]_REV–...
-
Page 4: Installation And Operation Manual
INSTALLATION AND OPERATION MANUAL CNFE2MCPOE[/M] FIGURE 5 – LED INDICATORS LINK PSE1 or PSE2 POWER GREEN Fiber interface linked Power is being sup- Unit powered up (when lit or flashing) plied by unit Fiber interface not Power not supplied Unit powered down linked. - Page 5 INSTALLATION AND OPERATION MANUAL CNFE2MCPOE[/M] INS_CNFE2MCPOE[/M]_REV– 07/28/10 TECH SUPPORT: 1.888.678.9427 PAGE 5...
-
Page 6: Installation Considerations
INSTALLATION CONSIDERATIONS Th CNFE2MCPOE is supplied as a Rack Mount/Surface mount module. In the ComNet Rack, PoE operation is not supported. The CNFE2MCPOEM is supplied as a Surface mount module. Units should be installed in dry locations protected from extremes of temperature and humidity.
