INSTALLATION AND OPERATION MANUAL
CWGE2SC(M,S)2
COMMERCIAL GRADE 10/100/1000BASE-T(X) TO
1000BASE-SX/LX GIGABIT ETHERNET MEDIA CONVERTER

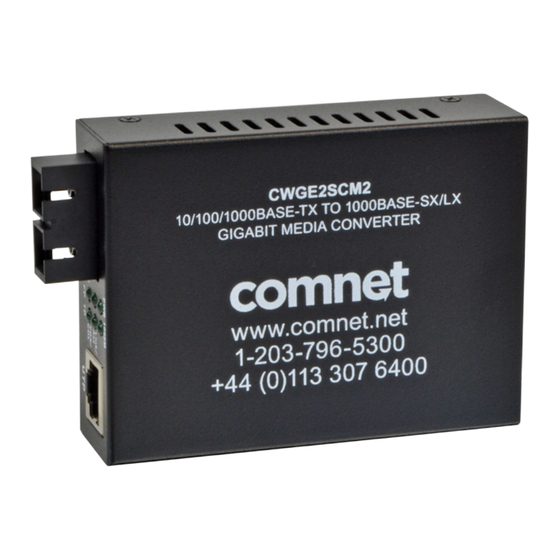

The ComNet
CWGE2SC(M,S)2 Ethernet media converters are designed to transmit
™
and receive 10/100/1000 Mbps data over multimode or single mode optical fiber.
The electrical interface will Auto-Negotiate to a 10, 100, or 1000 Mbps Ethernet rate
without any adjustments. The optical interface operates at a 1000 Mbps Ethernet
rate. These media converters are commercial grade for light industrial use.
Indicating LEDs are provided for confirming operating status. See Figure 4 on
Page 3 for LED explanations.
See Figures 1 – 5 for complete operation instructions.
INS_CWGE2SC(M,S)2_REV- 06/22/12 PAGE 1
Advertisement
Table of Contents
Related Manuals for Comnet CWGE2SCS2
Summary of Contents for Comnet CWGE2SCS2
- Page 1 INSTALLATION AND OPERATION MANUAL CWGE2SC(M,S)2 COMMERCIAL GRADE 10/100/1000BASE-T(X) TO 1000BASE-SX/LX GIGABIT ETHERNET MEDIA CONVERTER The ComNet CWGE2SC(M,S)2 Ethernet media converters are designed to transmit ™ and receive 10/100/1000 Mbps data over multimode or single mode optical fiber. The electrical interface will Auto-Negotiate to a 10, 100, or 1000 Mbps Ethernet rate without any adjustments.
- Page 2 INSTALLATION AND OPERATION MANUAL CWGE2SC(M,S)2 FIGURE 1 – CWGE2SC(M,S)2 TRANSCEIVER 2.5mm Center Positive Plug Operating Voltage: 9 to 12 VDC Power Consumption: 2W FIGURE 2 – CWGE2SC(M,S)2 TRANSCEIVER FRONT PANEL REAR PANEL FIGURE 3 – POSSIBLE ETHERNET CONFIGURATION Ethernet IEEE 802.3 Network Element determined by user. 2 OPTICAL FIBERS SC CONNECTORS MULTIMODE...
- Page 3 INSTALLATION AND OPERATION MANUAL CWGE2SC(M,S)2 FIGURE 4 – INDICATING LEDS Status Meaning Power Power is on Fiber link port is connceted Link/ACT (FP) Flashing Packets sending/receiving TX port is connected Link/ACT (TP) Flashing Packets sending/receiving on TX port TX port full duplex mode active FDX/COL TX port half duplex mode active FX or SD...
- Page 4 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2014 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. INS_CWGE2SC(M,S)2_REV- 06/22/12 PAGE 4...
