Comnet CNFE100-A Installation And Operation Manual

INSTALLATION AND OPERATION MANUAL
CNFE100(X)-A
10/100 MbPS EthERNEt MEdIA CoNVERtER
FoR AIGIS doME

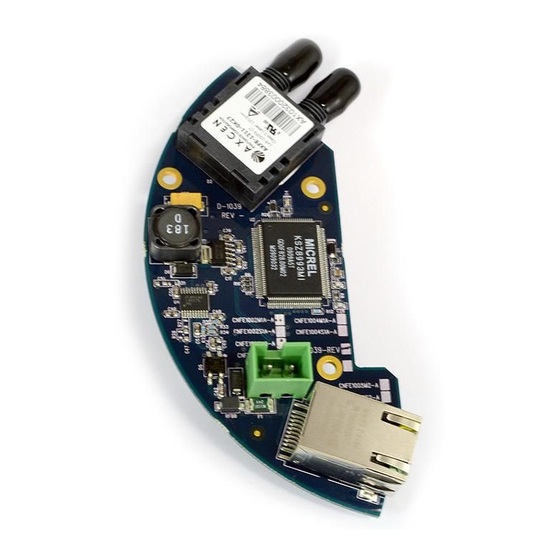

the series of Ethernet media converters are designed to transmit and receive 10/100
Mbps data over one multimode or single mode optical fiber. they are designed to be
mounted within an Aigis dome and provide optical Ethernet output.
the electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate
without any adjustments. the optical interface operates at a 100 Mbps Ethernet rate.
the series is environmentally hardened to operate in extreme temperatures.
An LEd indicator confirms equipment operating status. Figure 6 on Page 4 describes
the LEd indicators for the unit.
the CNFE100(X)-A series media converters are designed to be mounted in an Aigis
dome camera. See Figure A on Page 5 for mounting instructions.
INS_CNFE100(X)-A_REV–
06/21/11
PAGE 1
