INSTRUCTION MANUAL
CWFE2SC(M,S)2
Hardware Description
Unit dimension (L × W × H) is: 119 × 85 × 26 mm

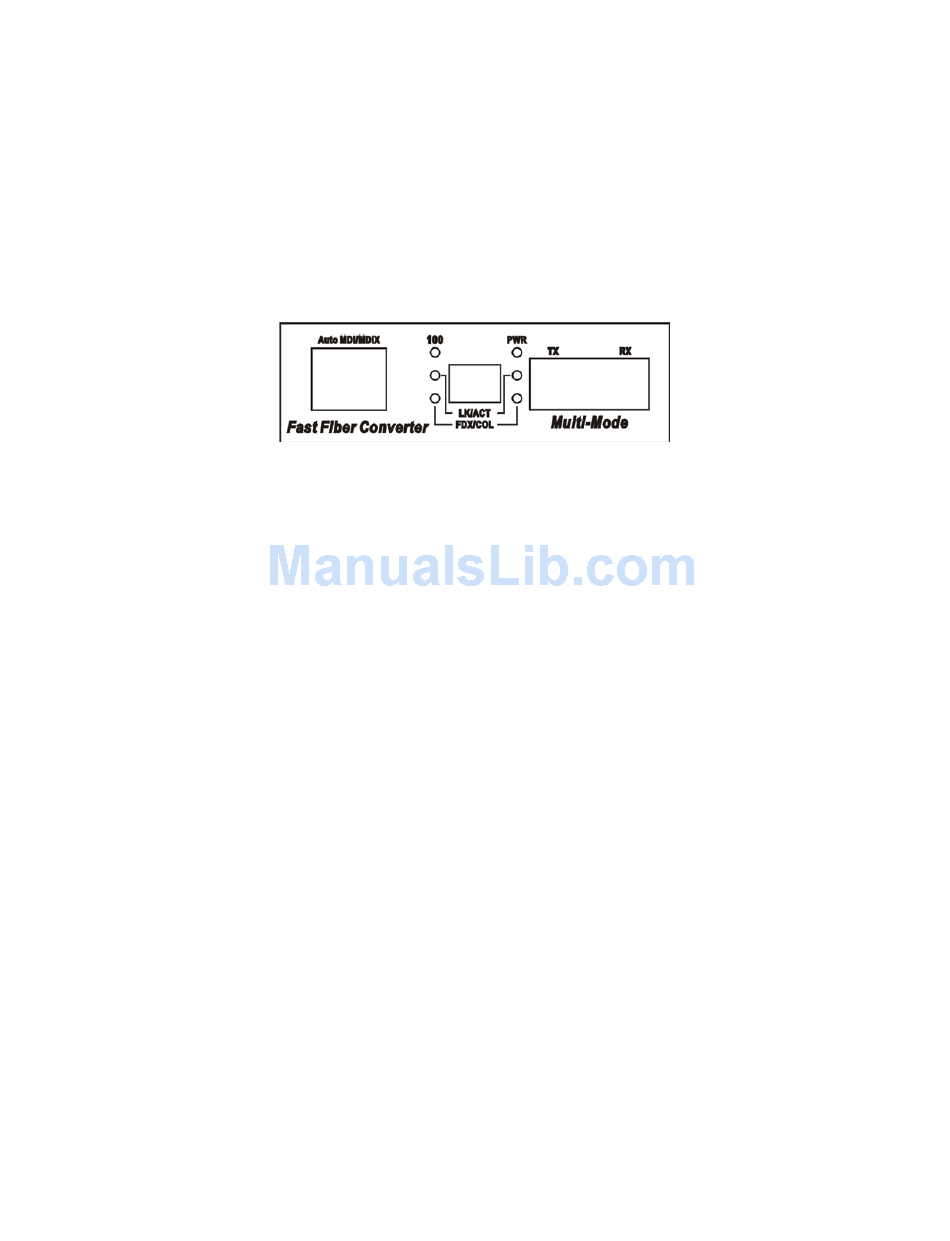

Front Panel
The Front Panel of the ComNet CWFE2SC(M,S)2 consists of one RJ-45 Port (Auto MDI/MDIX),
6 LED Indicators (UTP 100, LK/ACT, FDX/COL, Fiber LK/ACT, FDX/COL and PWR) and one fiber
100Base-FX Port.
Fast Fiber Converter Module - SC Model
Ports
RJ-45 Port (Auto MDI/MDIX): the Ethernet RJ-45 will auto-sense for 10Base-T or 100Base-TX
connections. Auto MDI/MDIX means that you can connect to another switch or workstation
without changing non-crossover or crossover cabling.
Fiber Port: This port is for 100 Base-FX connections.
TECH SUPPORT: 1.888.678.9427
QSG_CWFE2SC(M,S)2 Rev. 11.17.17 PAGE 4
