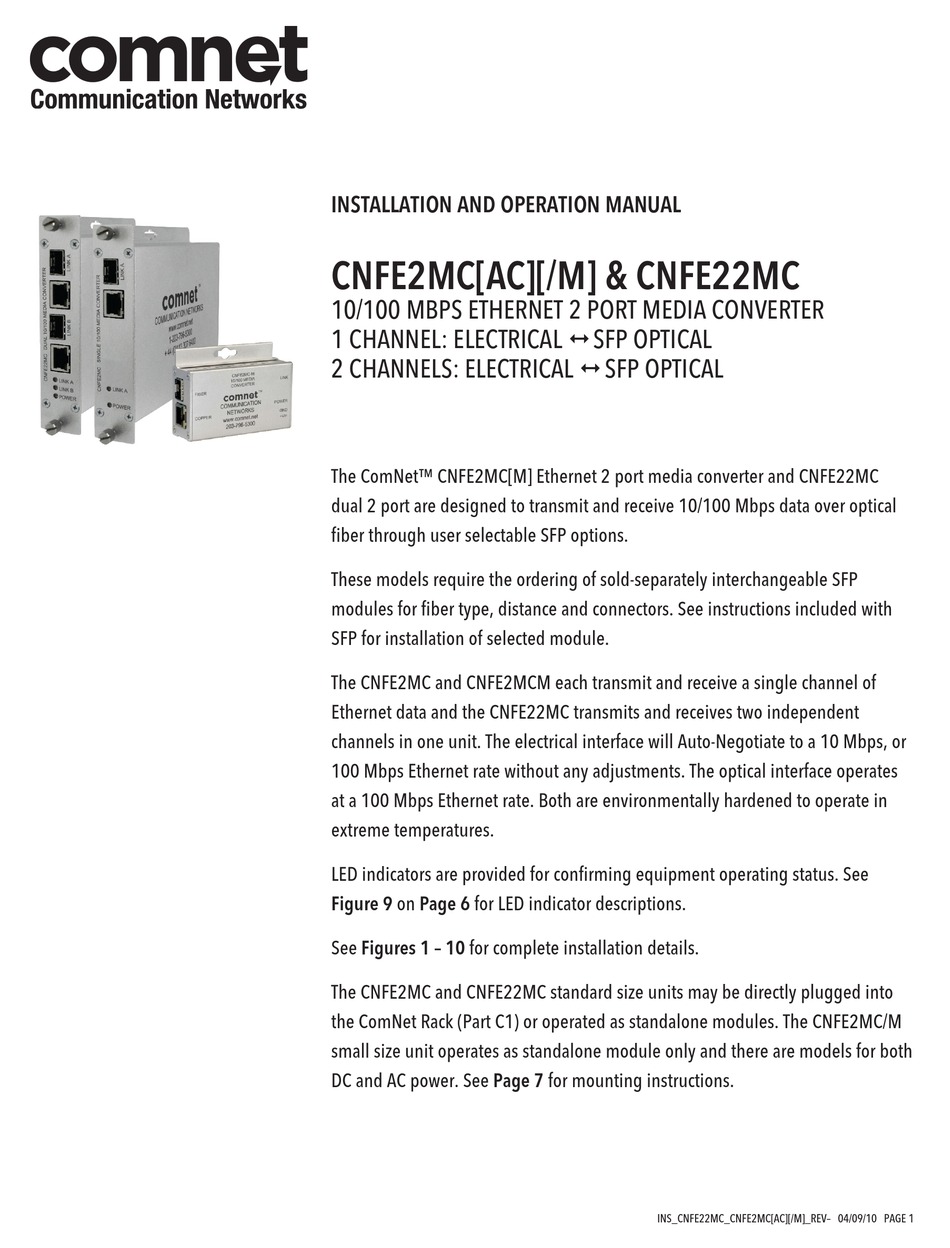

INSTALLATION AND OPERATION MANUAL
CNFE2MC[AC][/M] & CNFE22MC
10/100 MBPS ETHERNET 2 PORT MEDIA CONVERTER
1 CHANNEL: ELECTRICAL 1 SFP OPTICAL
2 CHANNELS: ELECTRICAL 1 SFP OPTICAL

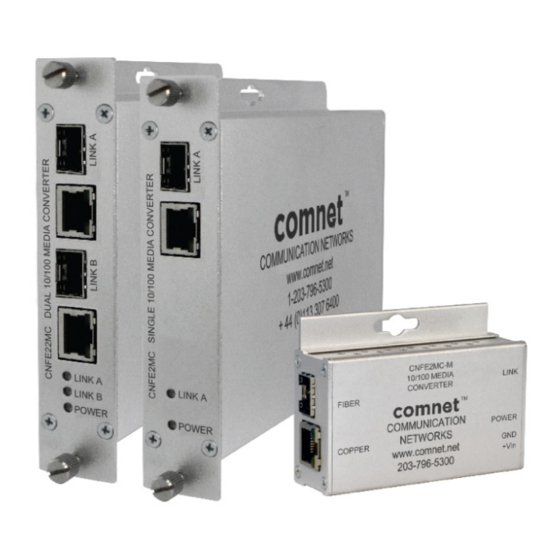

The ComNet™ CNFE2MC[M] Ethernet 2 port media converter and CNFE22MC
dual 2 port are designed to transmit and receive 10/100 Mbps data over optical
fiber through user selectable SFP options.
These models require the ordering of sold-separately interchangeable SFP
modules for fiber type, distance and connectors. See instructions included with
SFP for installation of selected module.
The CNFE2MC and CNFE2MCM each transmit and receive a single channel of
Ethernet data and the CNFE22MC transmits and receives two independent
channels in one unit. The electrical interface will Auto-Negotiate to a 10 Mbps, or
100 Mbps Ethernet rate without any adjustments. The optical interface operates
at a 100 Mbps Ethernet rate. Both are environmentally hardened to operate in
extreme temperatures.
LED indicators are provided for confirming equipment operating status. See
Figure 9 on Page 6 for LED indicator descriptions.
See Figures 1 – 10 for complete installation details.
The CNFE2MC and CNFE22MC standard size units may be directly plugged into
the ComNet Rack (Part C1) or operated as standalone modules. The CNFE2MC/M
small size unit operates as standalone module only and there are models for both
DC and AC power. See Page 7 for mounting instructions.
INS_CNFE22MC_CNFE2MC[AC][/M]_REV– 04/09/10 PAGE 1
