This manual serves the following
ComNet Model Numbers:
CWGE2SFPM2
CWGE2SFPS2
CWGE2SFP

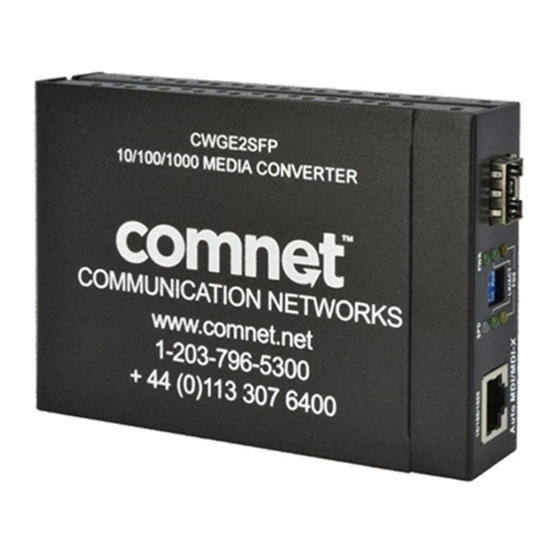

INSTALLATION AND OPERATION MANUAL
CWGE2SFP
Commercial Grade 10/100/1000BASE-T(X) to
1000BASE-FX Gigabit Ethernet Media Converter
The ComNet CWGE2SFP Ethernet media converter series are one-channel Ethernet
electrical to optical media converters. These auto-negotiating devices accept a
10/100/1000 Mbps electrical input and convert this to a 1000 Mbps optical output.
These devices use either one or two optical fibers, depending upon the selection of
either included or sold-separately SFP optical module. These devices can be used in
stand-alone mode or can be installed within the ComNet CWCHASSIS 19 inch rack.
Rev. 12.5.17
Advertisement
Table of Contents
Related Manuals for Comnet CWGE2SFP
Summary of Contents for Comnet CWGE2SFP
- Page 1 These devices use either one or two optical fibers, depending upon the selection of CWGE2SFPS2 either included or sold-separately SFP optical module. These devices can be used in CWGE2SFP stand-alone mode or can be installed within the ComNet CWCHASSIS 19 inch rack. Rev. 12.5.17...
- Page 2 INSTRUCTION MANUAL CWGE2SFP Contents Introduction Features Hardware Description Front Panel Rear Panel Ports DIP-switch TECH SUPPORT: 1.888.678.9427 INS_CWGE2SFP Rev. 12.5.17 PAGE 2...
- Page 3 FX network up to 550 meters for multi-mode fiber or up to 15 kilometers for single-mode fiber. The CWGE2SFP series gives you maximum flexibility with its empty SFP slot supporting any of the ComNet 1 Gbps SFP modules offering options for different connector types and distances up to 120 kilometers.
-
Page 4: Hardware Description
INSTRUCTION MANUAL CWGE2SFP Hardware Description The CWGE2SFP Series Media Converter dimensions (L × W × H): 120 × 85 × 26 mm TECH SUPPORT: 1.888.678.9427 INS_CWGE2SFP Rev. 12.5.17 PAGE 4... -
Page 5: Front Panel
CWGE2SFP Front Panel The Front Panel of the CWGE2SFP series media converter module consists of one Gigabit SFP port (supplied either empty or with an included SFP module, depending on model ordered), one Gigabit RJ45 copper Port (Auto MDI/MDIX), and 6 LED Indicators (SPD, LK/ACT, FDX, Fiber LK/ ACT, FDX/COL, and PWR). -
Page 6: Led Indicators
INSTRUCTION MANUAL CWGE2SFP LED Indicators There are 6 diagnostic LEDs located on the Front panel of the media converter. They provide real- time information of system and operational status. The following table provides descriptions of the LED status and their meanings. - Page 7 INSTRUCTION MANUAL CWGE2SFP DIP-switch The DIP-switch is used to configure the operation mode for LLF (Link Lost Forwarding) and operation mode for the device traffic. The default value of each Dipswitch is OFF. SW No Status Description LLF Enable LLF Disable...
- Page 8 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2017 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC.
