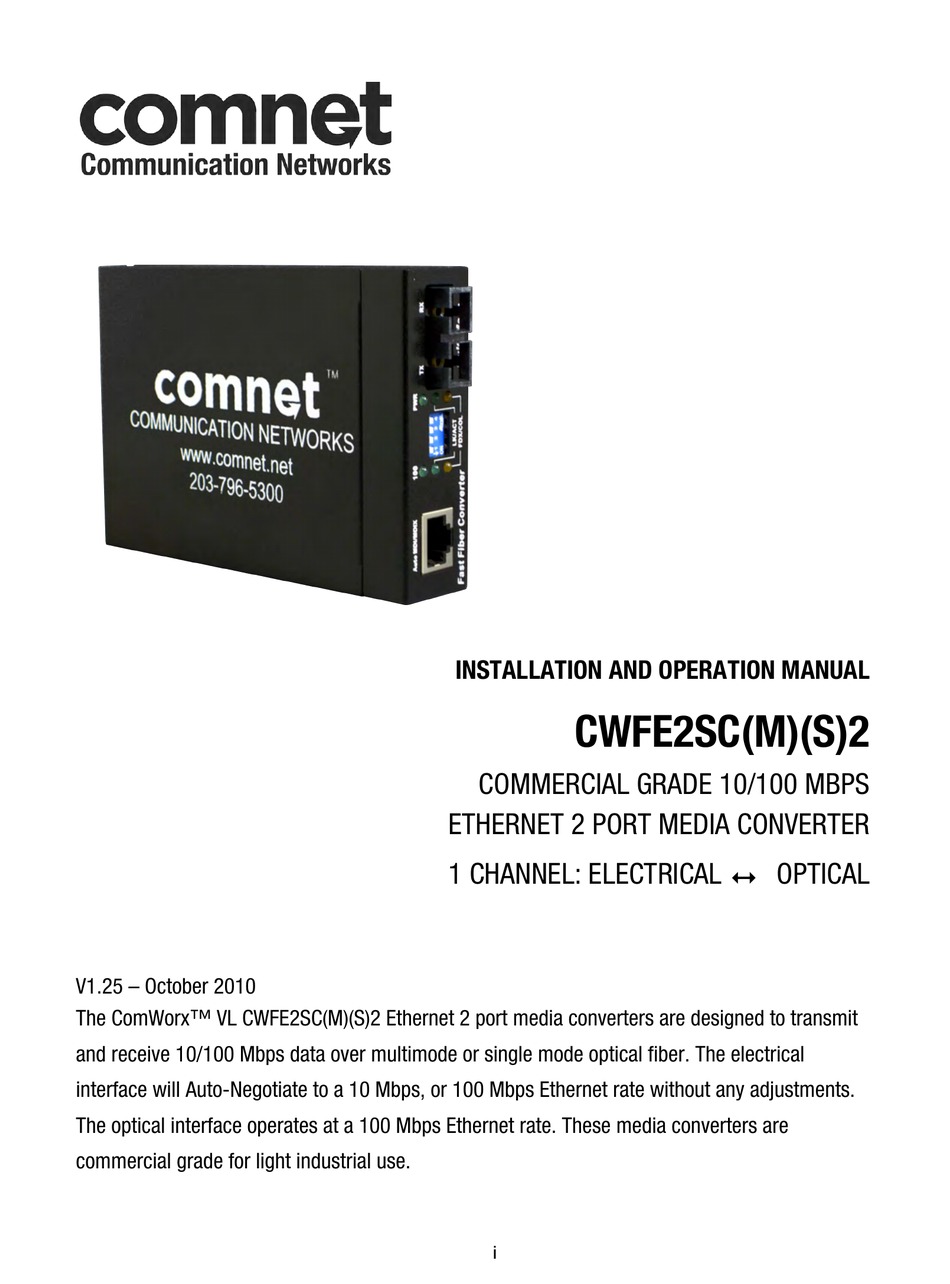

INSTALLATION AND OPERATION MANUAL
CWFE2SC(M)(S)2
COMMERCIAL GRADE 10/100 MBPS
ETHERNET 2 PORT MEDIA CONVERTER
1 CHANNEL: ELECTRICAL
OPTICAL
V1.25 – October 2010
The ComWorx™ VL CWFE2SC(M)(S)2 Ethernet 2 port media converters are designed to transmit
and receive 10/100 Mbps data over multimode or single mode optical fiber. The electrical
interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments.
The optical interface operates at a 100 Mbps Ethernet rate. These media converters are
commercial grade for light industrial use.
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CWFE2SC2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comnet CWFE2SC2

Summary of Contents for Comnet CWFE2SC2

  • Page 1 INSTALLATION AND OPERATION MANUAL CWFE2SC(M)(S)2 COMMERCIAL GRADE 10/100 MBPS ETHERNET 2 PORT MEDIA CONVERTER  1 CHANNEL: ELECTRICAL OPTICAL V1.25 – October 2010 The ComWorx™ VL CWFE2SC(M)(S)2 Ethernet 2 port media converters are designed to transmit and receive 10/100 Mbps data over multimode or single mode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments.

  • Page 2: Table Of Contents

    Content Introduction ............1 Features ......................2 Package Contents..................2 Hardware Description........3 Front Panel..................... 3 Ports....................... 3 LED Indicators....................4 DIP-switch...................... 5 Rear Panel...................... 6 Cabling ......................6 Problem Solving ..........7 Optical Fiber Specification ......8 Technical Specifications .........9...

  • Page 3: Introduction

    10/100Base-TX electrical to and 100Base-FX fiber optic cable, It allows you to extend the distance of your 100Base-FX network up to 2 kilometers for multi-mode fiber or up to 30 kilometers for single-mode fiber. The ComNet CWFE2SC(M)(S)2 gives you the option of choosing between the most popular fiber cabling connectors: SC/multi-mode fiber connector and SC single-mode fiber connectors.

  • Page 4: Features

    Features ComNet CWFE2SC(M)(S)2  Complies with IEEE 802.3, 802.3u, and 802.3x standards.  Converts between UTP cabling and fiber-optic cable.  One RJ45 connector, Auto-MDI/MDIX for UTP port.  Supports 10/100 Mbps Auto-negotiation for UTP port.  Fiber optic cabling connectivity up to 30Km.

  • Page 5: Hardware Description

    Unit dimension (L x W x H) is: 119mm x 85mm x 26mm Front Panel The Front Panel of the ComNet CWFE2SC(M)(S)2 consists of one RJ45 Port (Auto MDI/MDIX), 6 LED Indicators (UTP 100, LK/ACT, FDX/COL, Fiber LK/ACT, FDX/COL and PWR) and one fiber 100Base-FX Port.

  • Page 6: Led Indicators

    LED Indicators There are 6 diagnostic LEDs located on the Front panel of the media converter. They provide real-time information of system and optional status. The indicator includes Power, UTP 100, LK/ACT, FDX/COL, Fiber LK/ACT, FDX/COL. The following table provides description of the LED status and their meanings.

  • Page 7: Dip-Switch

    DIP-switch The DIP-switch is used to configure operation mode for LLF (Link Lost Forwarding) and operation mode for UTP/Fiber port. The default value of DIP switch is OFF. S/W No Status Description UTP 100Mbps Full Duplex mode UTP Auto-Negotiate Fiber in Half Duplex Fiber in Full Duplex LLF Enable LLF Disable...

  • Page 8: Rear Panel

    Rear Panel The rear panel contains a power socket, which accepts 8–24 VDC @ 220mA. DC IN Cabling For the Twisted-pair segment unshielded twisted pair (UTP) or shielded  twisted pair (STP) cabling can be used. The cable must comply with the IEEE 802.3u 100Base TX standard for Category 5.

  • Page 9: Problem Solving

    Problem Solving Check the DIP-switch configuration. It must be set in the same  operational mode as the corresponding link. Select the proper UTP/fiber optic cable to construct your network. The  single-mode media converter must use single-mode fiber optic cable. Please check that you are using the right cable.

  • Page 10: Optical Fiber Specification

    Optical Fiber Specifications The following table shows the optical Fiber Specification Wavelength Avg. Launch Avg. Sensitivity Module Name (nm) Power (dB) (dB) ComNet CWFE2SCM2 1310 (nm) -18 (dB) -30 (dB) ComNet CWFE2SCS2 1310 (nm) -6 (dB) -34 (dB) Avg. Power Max.

  • Page 11: Technical Specifications

    Technical Specifications ComNet CWFE2SC(M)(S)2 technical specifications are as follows: IEEE802.3 10BASE-T Standard IEEE802.3u 100BASE-TX/100BASE-FX IEEE802.3x Flow Control and Back pressure Fiber: Duplex SC Connector RJ45 Socket: CAT-3/5 (10/100Mbps) Twisted Pair cable Auto MDI/MDI-X and Auto-Negotiation Function Support Switch architecture Store and Forward Fiber Core: Multi-Mode (62.5/125um, 50/125um)
  • Page 12 ComNet Customer Service Customer Care is ComNet Technology’s global service center, where our professional staff are ready to answer your questions at any time. Email address of ComNet Global Service Center: customercare@ComNet.net Communication Networks World Headquarters ComNet Europe Ltd 3 Corporate Drive...
