INSTALLATION AND OPERATION MANUAL
The connections created here assume that the contact over Ethernet module is running as a telnet
server, which is the default for a new unit. To create a new connection between a virtual COM port
on the PC and remote device:
» Select Start ComNet Contact over Ethernet module Configuration application by double click
on the icon cns2econf.exe, The "Main ComNet Contact over Ethernet module Configuration
application window" appears as shown above in Figure 19.
» The application performs an UPnP query to discover all contact over Ethernet modules on
the network. Once this query completes, the module pane of the main application window
updates to show a complete list of the devices found. Once this list appears, select the device
to which you want to set up a connection. Double-click a device to launch its configuration
website, and log in.
» In the com0com Port Pairs pane, click the + to the left of Virtual Port Pair 0 to expand the
listing. Select one of the two virtual COM ports listed. This is the port that com2tcp will use in
the connection you are configuring.
» Enter a Connection Name for this connection.
Tech Support: 1.888.678.9427

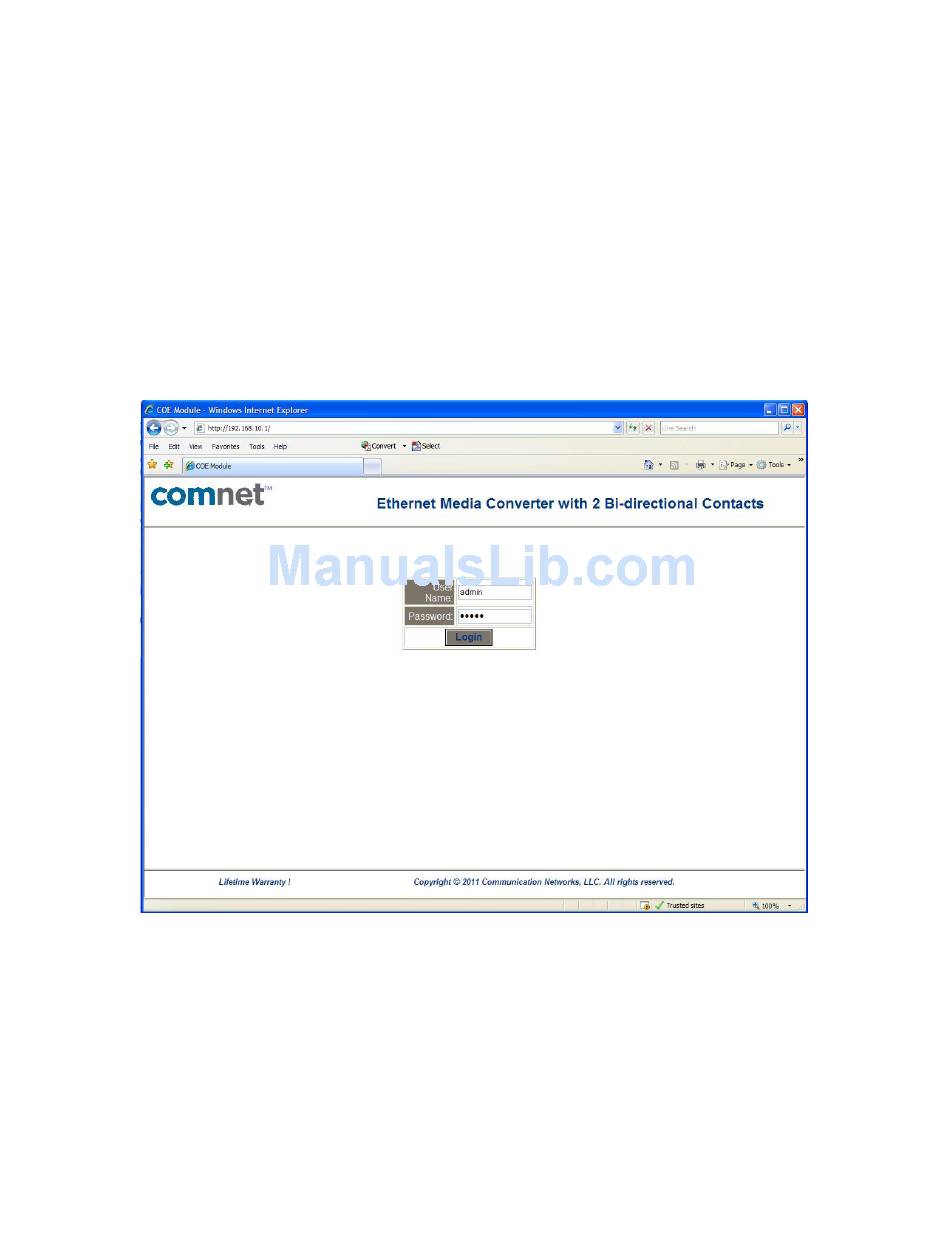

Figure 21 – CNFE2MC2C[/M] Log in Page
CNFE2MC2C[/M]
INS_CNFE2MC2C[/M]_REV–
01/18/12 PAGE 21
