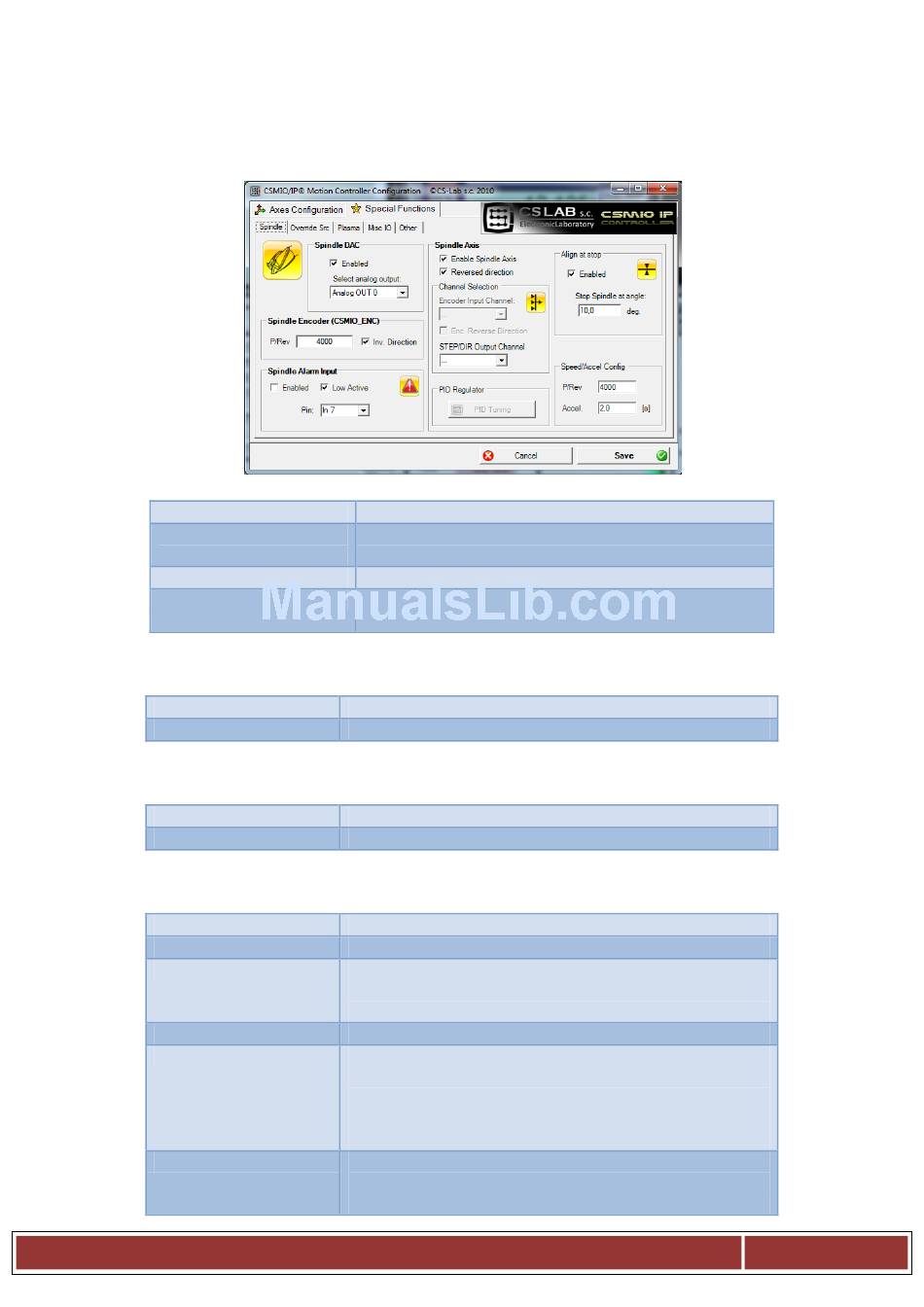

10.9.2 Spindle configuration

CSMIO/IP controller has many additional functions according to a spindle. The options were divided
into following groups:
Spindle DAC
Spindle Encoder
(CSMIO_ENC)
Spindle Alarm Input
Spindle Axis
10.9.2.1 Spindle DAC – revs control output
Enabled
Select Analog Output
10.9.2.2 Spindle Encoder – spindle encoder module
P/Rev
Inv. Direction
10.9.2.3 Spindle Axis – axis channel spindle control
Enable Spindle Axis
Reversed Direction
Channel Selection
PID Regulator
Align at stop
Speed/Accel Config
C S - L a b s . c . – C S M I O / I P - S - C N C C o n t r o l l e r
Selection of analog output for spindle revs control
CSMIO-ENC module configuration
Spindle drive alarm signal input configuration
Spindle operation through axis channel (STEP/DIR) op-
tions
Enabling revs control on analog 0-10V output
Analog output selection
Pulses number per spindle rev (with all edges)
Analog output number selection
Function enable
Revs direction change
STEP/DIR output channel selection for spindle operation (it's
important to remember that for "common" axis operation
there are only 5 channels left so it's impossible to use 6 axes)
Only for CSMIO/IP-A – PID regulator tuning
Automatic spindle setting in demanded angle always after
turning off. This function is especially useful when spindle
axis, for tool change, must be set in a defined position. „En-
abled" activates the function and below you can enter the
angle for spindle setting.
Configuration of pulses per spindle drive motor rev and ac-
celeration. The acceleration value entered here is a time in
which the spindle gets max. revs (defined in Spindle Pulleys).
Page 68
