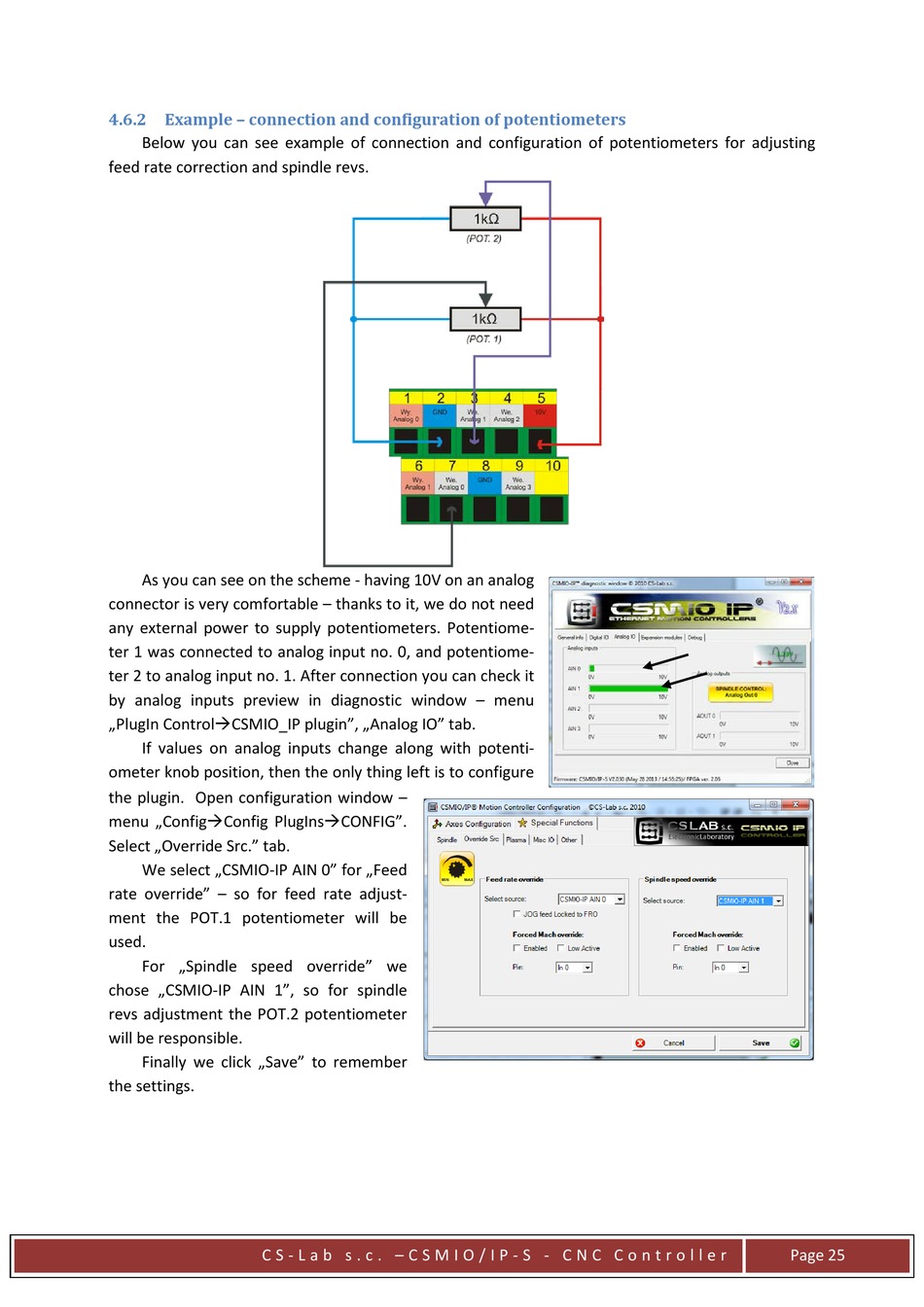

4.6.2 Example – connection and configuration of potentiometers
Below you can see example of connection and configuration of potentiometers for adjusting
feed rate correction and spindle revs.
As you can see on the scheme - having 10V on an analog
connector is very comfortable – thanks to it, we do not need
any external power to supply potentiometers. Potentiome-
ter 1 was connected to analog input no. 0, and potentiome-
ter 2 to analog input no. 1. After connection you can check it
by analog inputs preview in diagnostic window – menu
„PlugIn ControlCSMIO_IP plugin", „Analog IO" tab.
If values on analog inputs change along with potenti-
ometer knob position, then the only thing left is to configure
the plugin. Open configuration window –
menu „ConfigConfig PlugInsCONFIG".
Select „Override Src." tab.
We select „CSMIO-IP AIN 0" for „Feed
rate override" – so for feed rate adjust-
ment the POT.1 potentiometer will be
used.
For „Spindle speed override" we
chose „CSMIO-IP AIN 1", so for spindle
revs adjustment the POT.2 potentiometer
will be responsible.
Finally we click „Save" to remember
the settings.
