4. Connectors, controls and electrical installation of the device

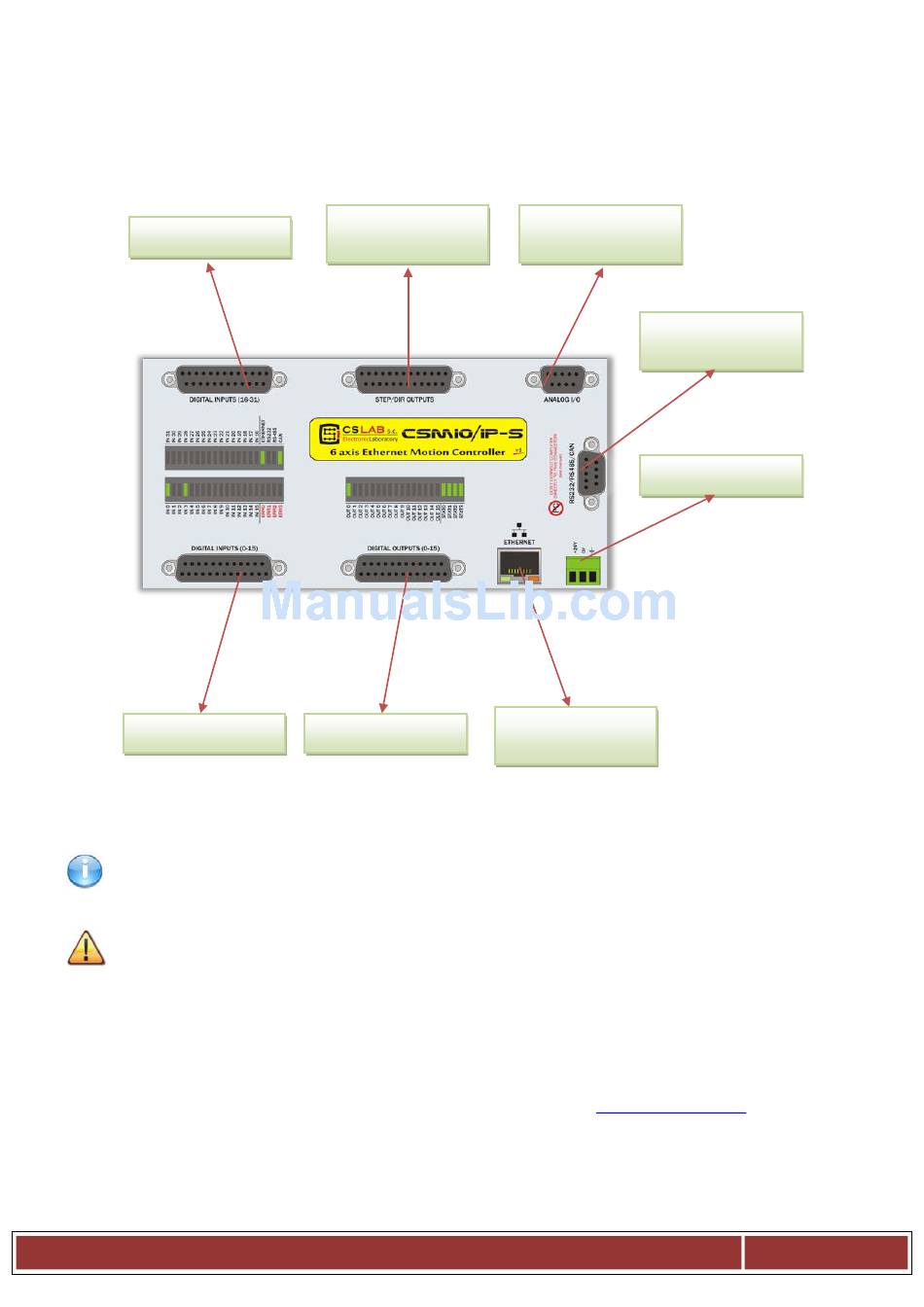

4.1 Connectors arrangement on the device
Digital inputs 16-31
Digital inputs 0-15
Detail description of signals on each connector is placed in the next sections.
DB->Terminal block connectors have the same pin numbers as DB connectors in CSMIO/IP-S device.
In example: 15 pin of DB25 connector match with the 15 pin on the terminal block.
There were some hardware improvements made in the CSMIO/IP-S v2 controllers therefore the pin
topology on STEP/DIR, DIGITAL OUTPUTS and DIGITAL INPUTS connectors is different for version v1
and v2. To define your version of the controller read the first 4 figures of a serial number.
•
Numbers starting with 1119... and below means version v1
• Numbers starting with 1120... and above means version v2
Documentation for v1 of CSMIO controller you can find on website:
load section.
C S - L a b s . c . – C S M I O / I P - S - C N C C o n t r o l l e r
Signals that control the
drives (STEP/DIR)
Digital outputs 0-15
Analog inputs and
outputs (0-10V)
Expansion modules
Power connector
Communication con-
nector (ETHERNET)
http://www.cs-lab.eu
connector
in down-
Page 13
