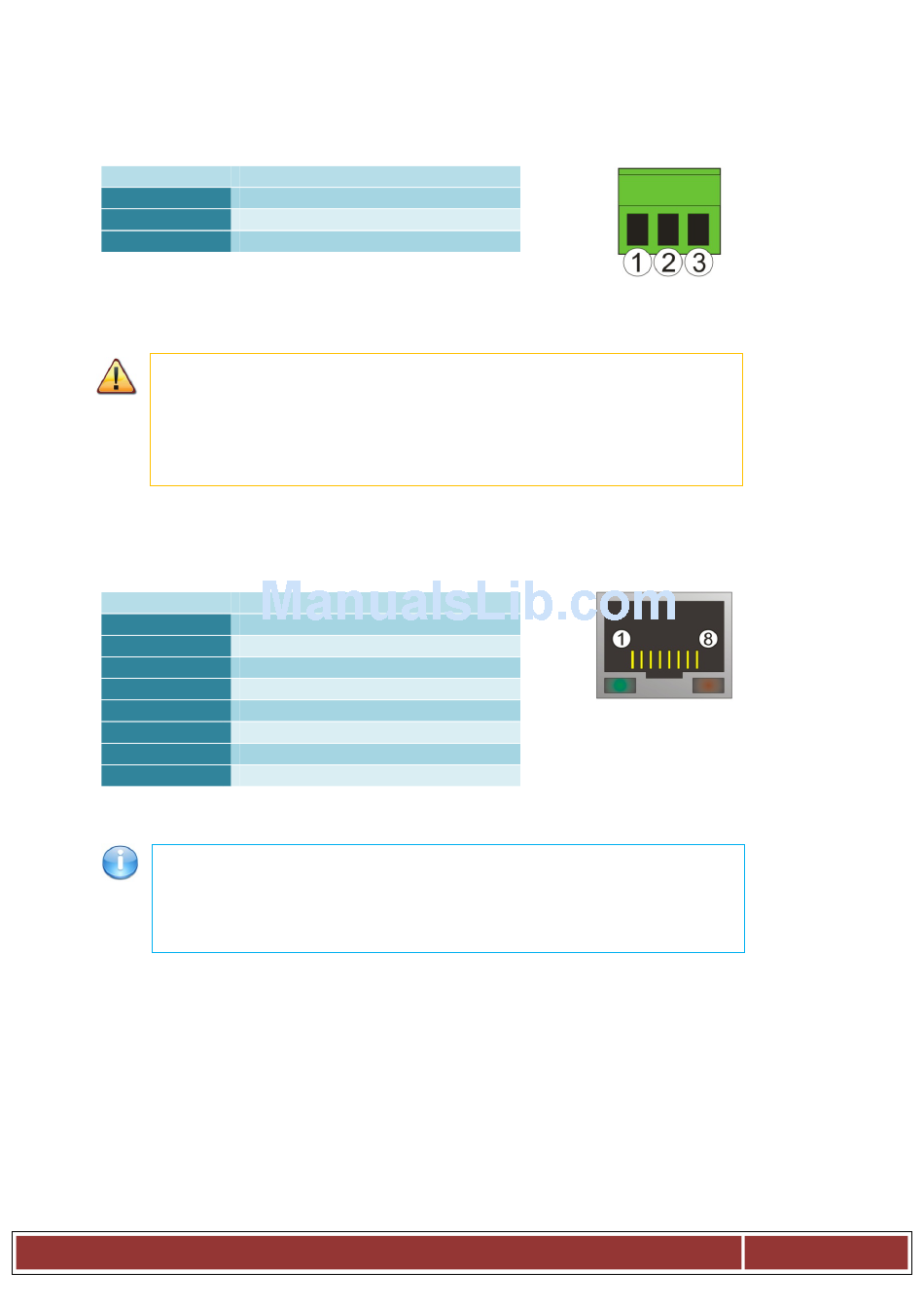

4.8 Power connector

Pin number
1
2
3
Pay special attention to not exceed the permissible power voltage (30VDC) on the
input lines. It may cause damage of the device.
If you use in the system such inductive loads as electromagnets, solenoids, elec-
tromagnetic clutches – it is recommended to use separate 24V power supply for
the mentioned receivers and separate for CSMIO / IP-S.
4.9 Communication connector – Ethernet
PIN number
1
2
3
4
5
6
7
8
It is recommended to use shielded cable FTP or STP cat.6.
A network interface has no Auto MDI-MDIX function. So when we connect
CSMIO/IP-S directly to a computer we should use so-called crossover cable. If you
connect it to the network switch or router - use a non-crossover cable.
C S - L a b s . c . – C S M I O / I P - S - C N C C o n t r o l l e r
Description
Power – 24V DC
GND
ground
Description
TX+
TX-
Rx+
-
-
RX-
-
-
View of the plug from the
side of connecting wires
Page 27
