4.4.3 Examples of input signals connection

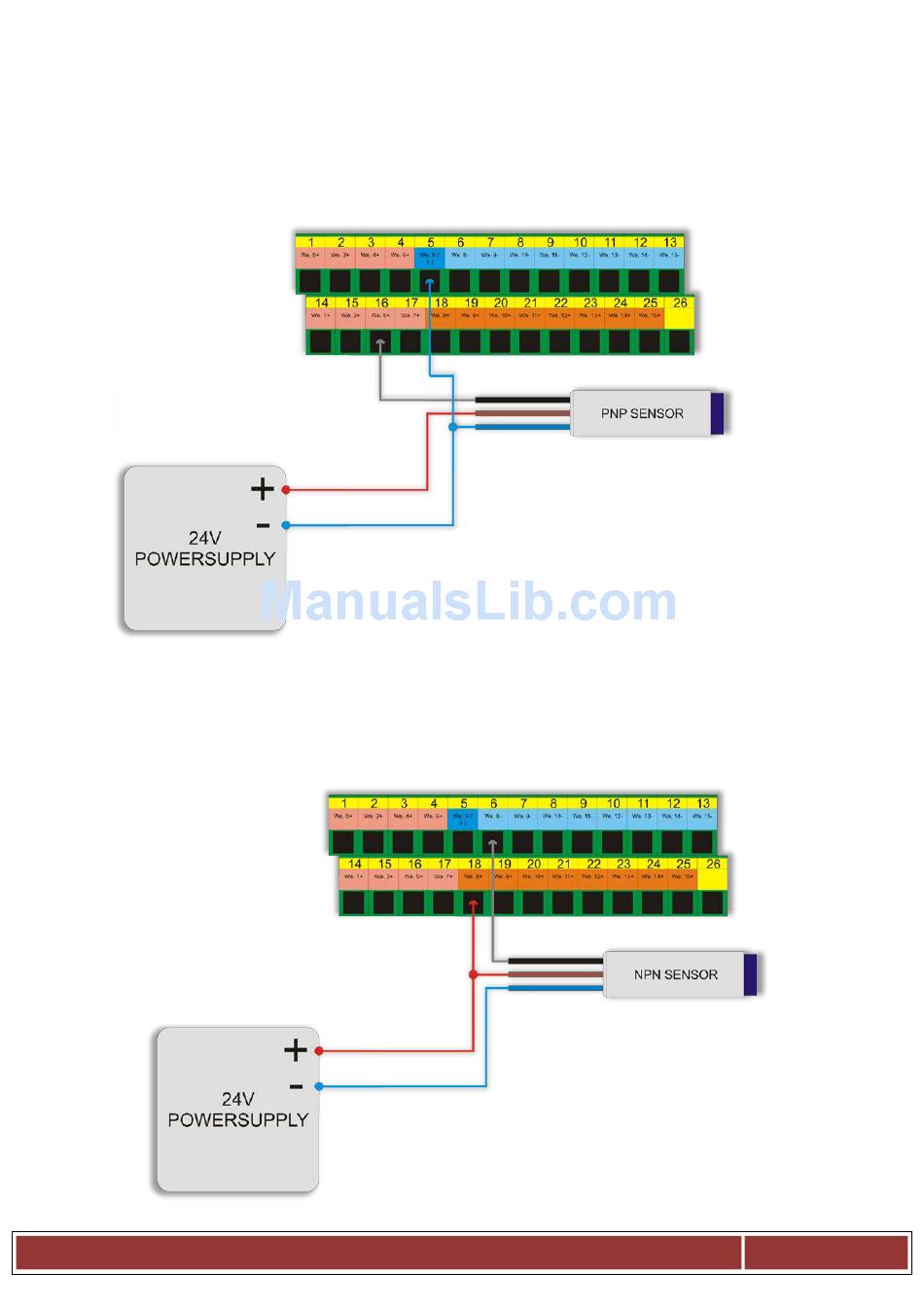

4.4.3.1 Inductive sensor PNP type
In this example sensor with PNP type output was connected to input no. 5. In Mach3 program,
we give in this case: port=10 / pin=5.
4.4.3.2 Inductive sensor NPN type
In this example sensor with NPN type output was connected to input no. 8. In Mach3 program,
we give in this case: port=10 / pin=8.
