4.11 Installation examples

4.11.1 Inverter connection using analog output.

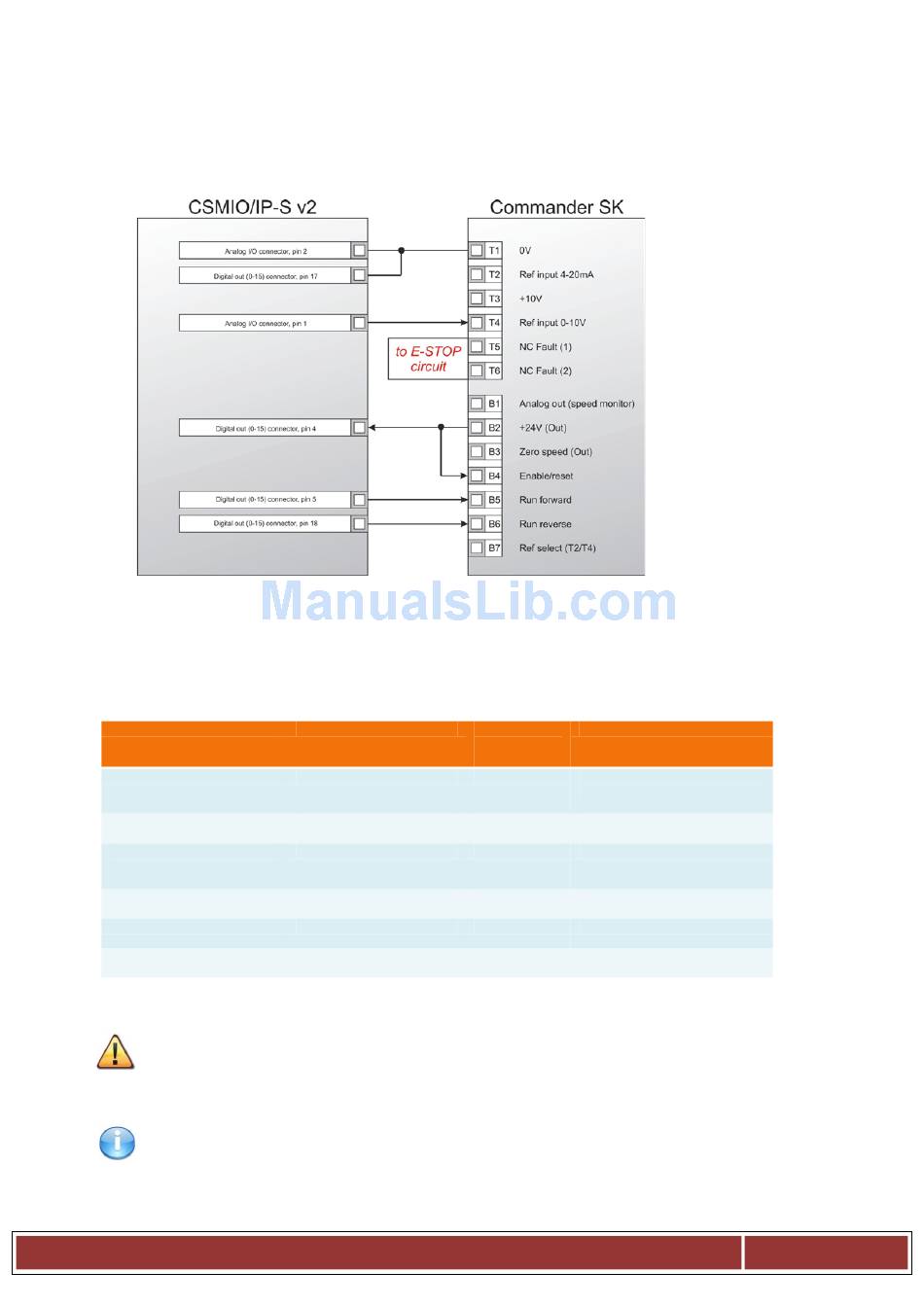

In the example above, you can see the simplest connection of an inverter to operate spindles in an
engraving plotter.
CSMIO/IP-S outputs in use:
CSMIO/IP-S signal
Analog GND connection
Analog output 0
CSMIO/IP digital outputs Power
GND
Outputs 4 and 5 power
Digital output 4
Digital output 5
Do no forget to set the configuration parameters of the inverter properly. Incorrect settings may
cause - in the best case - the inverter error, in the worst - the spindle motor becomes
permanently damaged (such damage is not covered by warranty).
Mach3 program configuration, concerning use of a spindle with revs control was described in
chapter 10 - "Mach3 Configuration".
C S - L a b s . c . – C S M I O / I P - S - C N C C o n t r o l l e r
Connector on CSMIO/IP-S PIN numbers on
CSMIO/IP-S (v2)
DB9 – Analog I/O
DB9 – Analog I/O
DB25 – Digital outputs (0-15)
DB25 – Digital outputs (0-15)
DB25 – Digital outputs (0-15)
DB25 – Digital outputs (0-15)
Inverter function
connector
AGND – reference potential for
2
analog input of a speed command
AGND – reference potential for
1
analog input of a speed command
17
24V output for controlling signals
4
5 Right revs switching
18 Left revs switching
