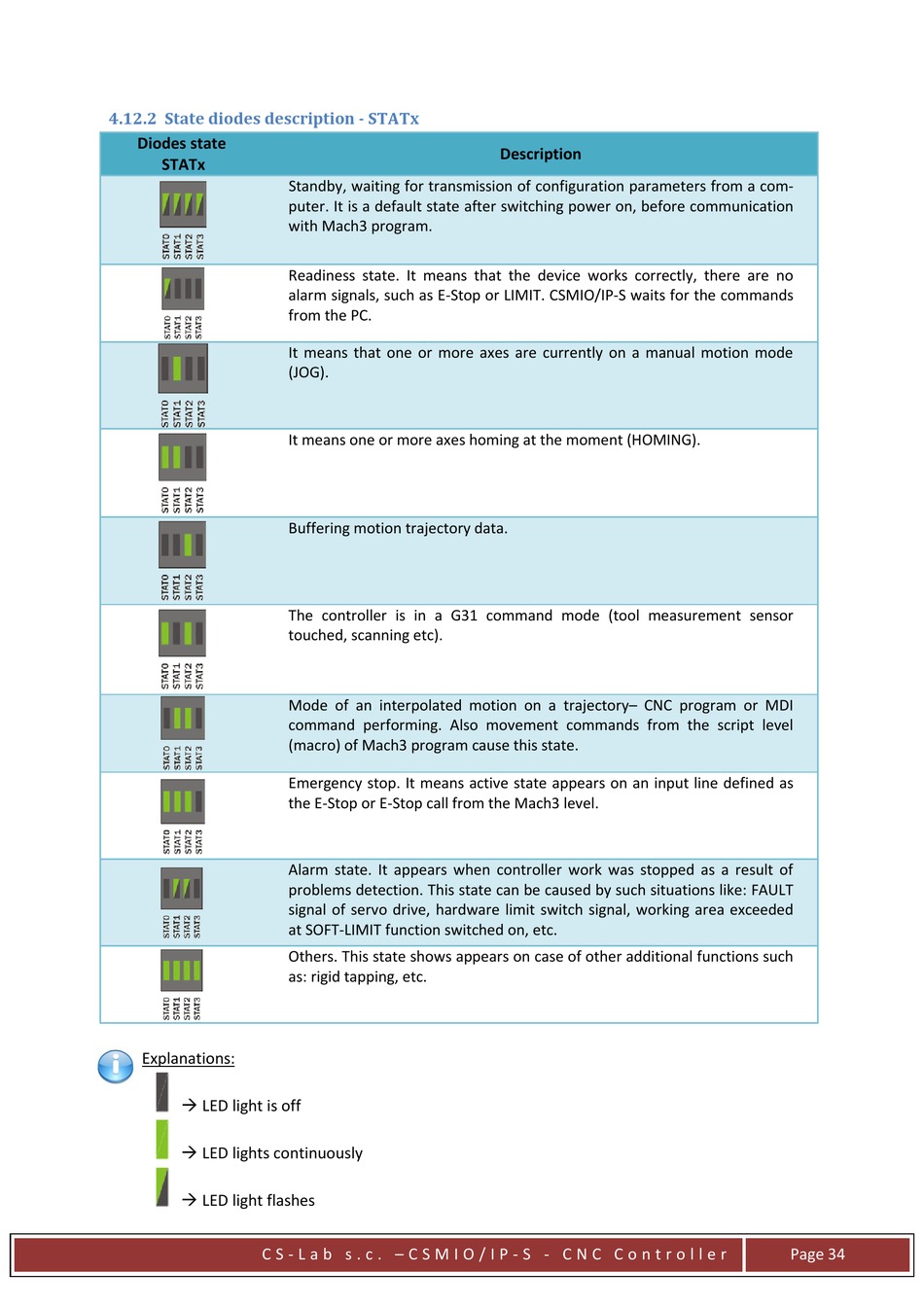

4.12.2 State diodes description - STATx

Diodes state
STATx
Explanations:
 LED light is off
 LED lights continuously
 LED light flashes
C S - L a b s . c . – C S M I O / I P - S - C N C C o n t r o l l e r
Standby, waiting for transmission of configuration parameters from a com-
puter. It is a default state after switching power on, before communication
with Mach3 program.
Readiness state. It means that the device works correctly, there are no
alarm signals, such as E-Stop or LIMIT. CSMIO/IP-S waits for the commands
from the PC.
It means that one or more axes are currently on a manual motion mode
(JOG).
It means one or more axes homing at the moment (HOMING).
Buffering motion trajectory data.
The controller is in a G31 command mode (tool measurement sensor
touched, scanning etc).
Mode of an interpolated motion on a trajectory– CNC program or MDI
command performing. Also movement commands from the script level
(macro) of Mach3 program cause this state.
Emergency stop. It means active state appears on an input line defined as
the E-Stop or E-Stop call from the Mach3 level.
Alarm state. It appears when controller work was stopped as a result of
problems detection. This state can be caused by such situations like: FAULT
signal of servo drive, hardware limit switch signal, working area exceeded
at SOFT-LIMIT function switched on, etc.
Others. This state shows appears on case of other additional functions such
as: rigid tapping, etc.
Description
