4.4.1 Input circuits construction.

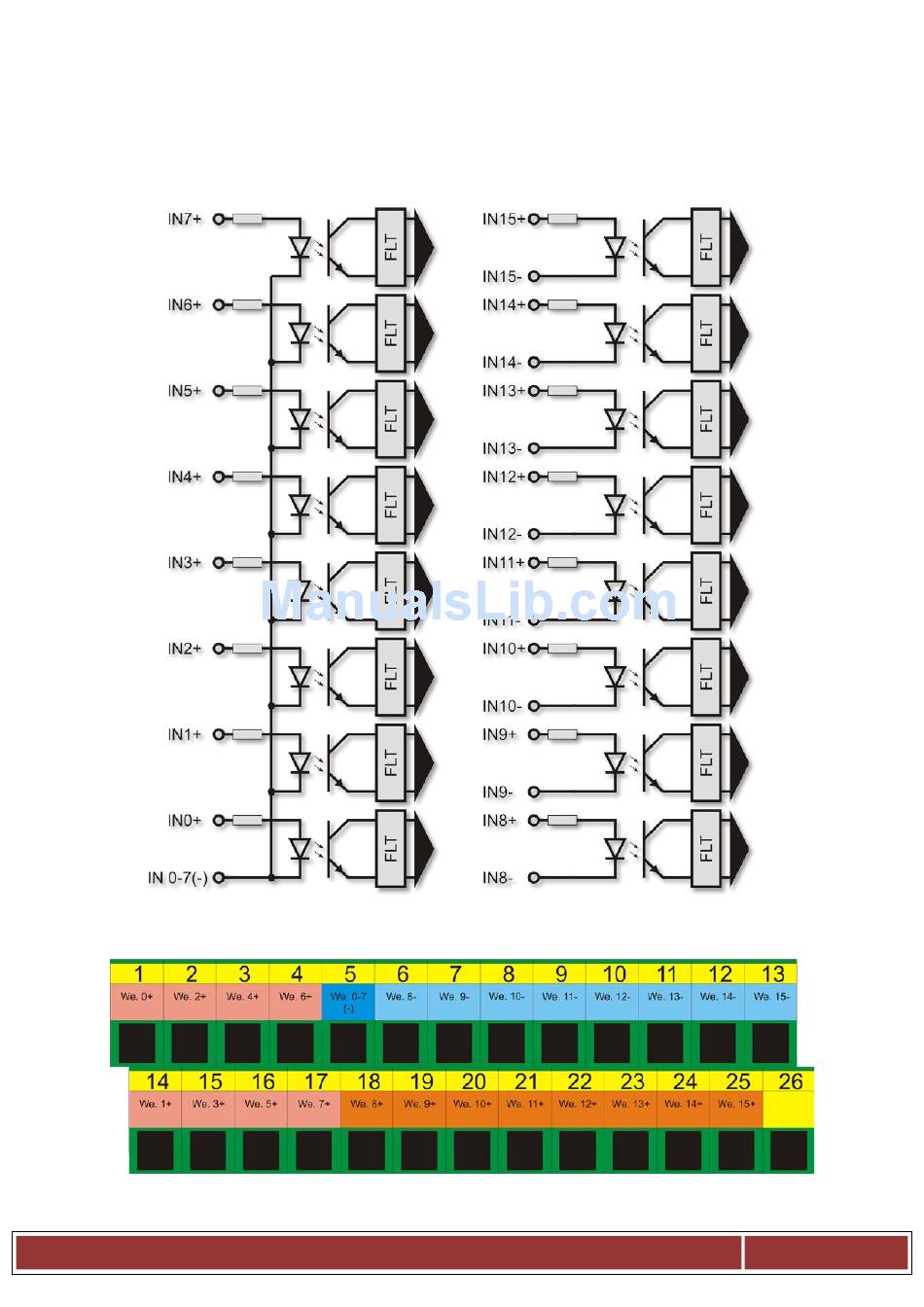

You can see below simplified scheme of CSMIO/IP-S input circuits. On the scheme outputs: 0 –
15 are signed as IN 0 – 15.
4.4.2 Signals on a Terminal Block connector
C S - L a b s . c . – C S M I O / I P - S - C N C C o n t r o l l e r
Page 20
