2.1 Example of direct E-Stop Signal connection

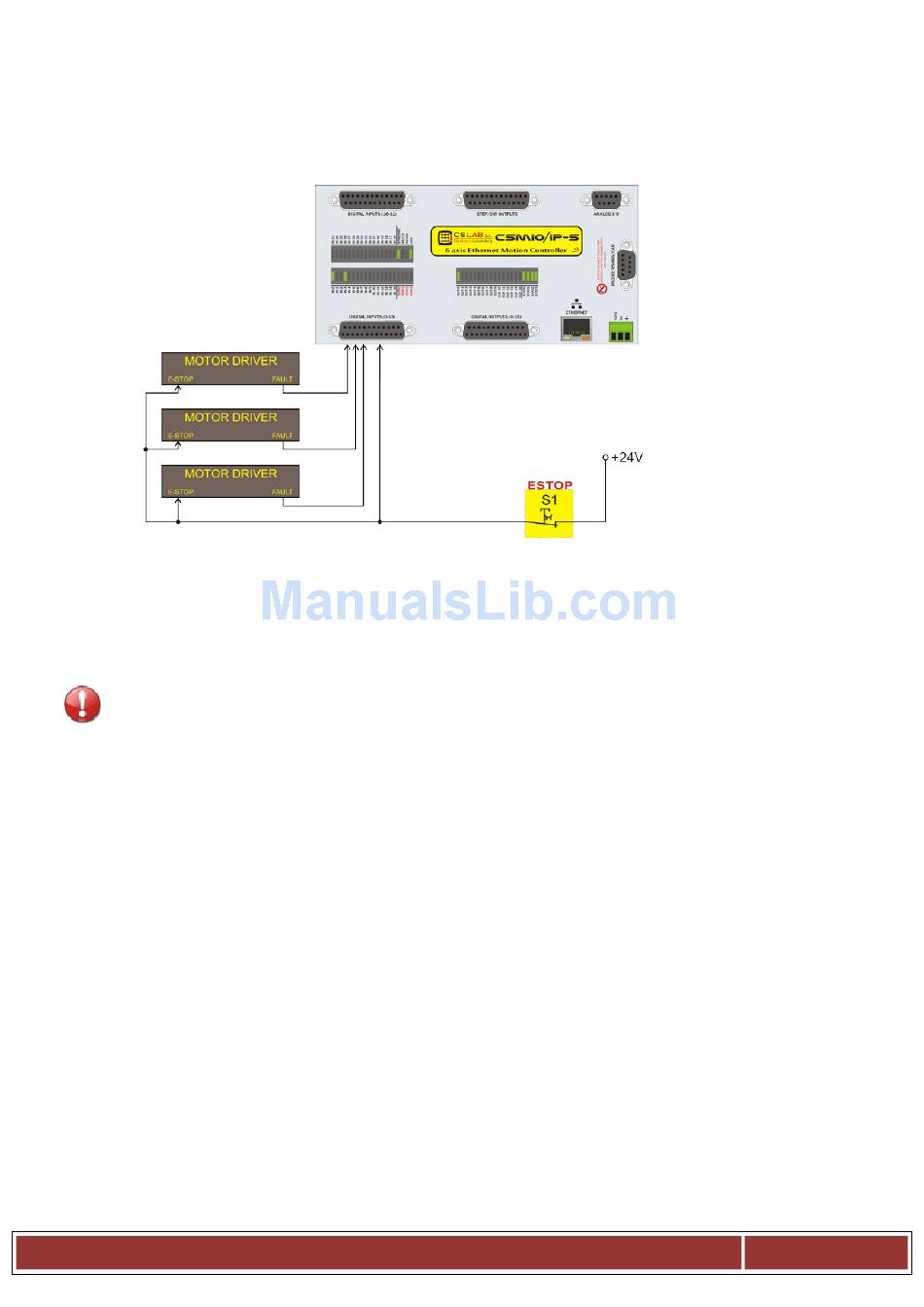

In the example above we used direct emergency signals connection. Such a connection is very easy
and at the same time, it ensures satisfying safety level. Of course, the easiest way is to connect the E-
Stop only to CSMIO/IP-S but then we lose double protection and it is no longer so safe solution.
As a switch (mushroom) of emergency stop always use special switchers, specially designed for that.
They have different construction and you can be actually 100% sure that the circuit will be discon-
nected after pressing the mushroom. Using common NC contacts is dangerous. It is worth to use
contacts from reputable companies. They are a little bit more expensive but their quality is much,
much better.
