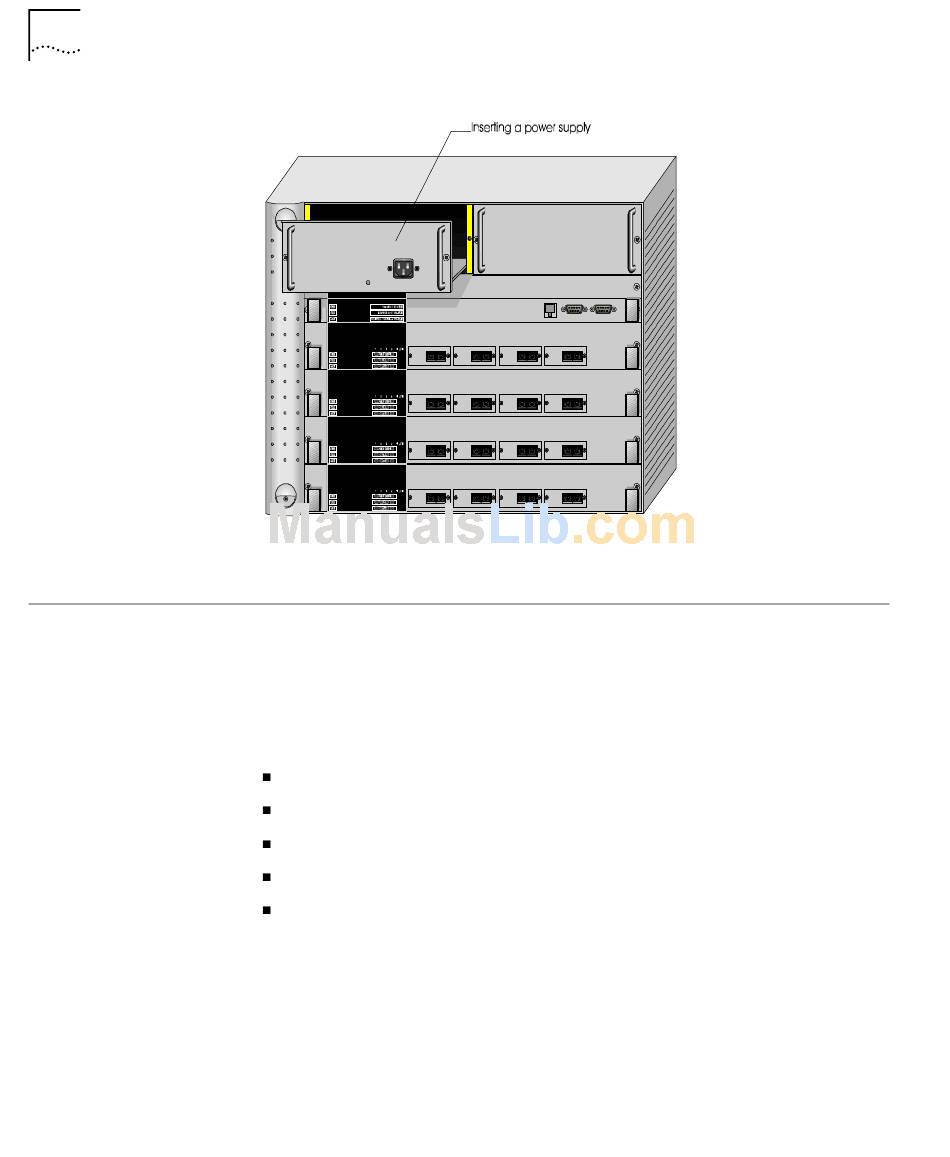

Figure 3 Hot-Swapping a Redundant Power Supply
The CoreBuilder 7000 family ATM switch provides for a redundant switch
module to ensure continued operation should the main switch module
fail. For more information on the operation of the redundant switch
module, see Chapter 10 in the Operations Guide.
This section includes the following topics:

Installing a Switch Module

Replacing a Switch Module
Setting up Switch Module Redundancy
Setting up Switch Module Hardware Redundancy
Setting up Hardware Redundancy and LANE Redundancy
To install a switch module in the CoreBuilder 7000 family ATM switch
chassis:
1 Remove the new card from its antistatic bag.
2 Orient the card so its labelling is upright and make sure the inject handles
are in the outward position.
