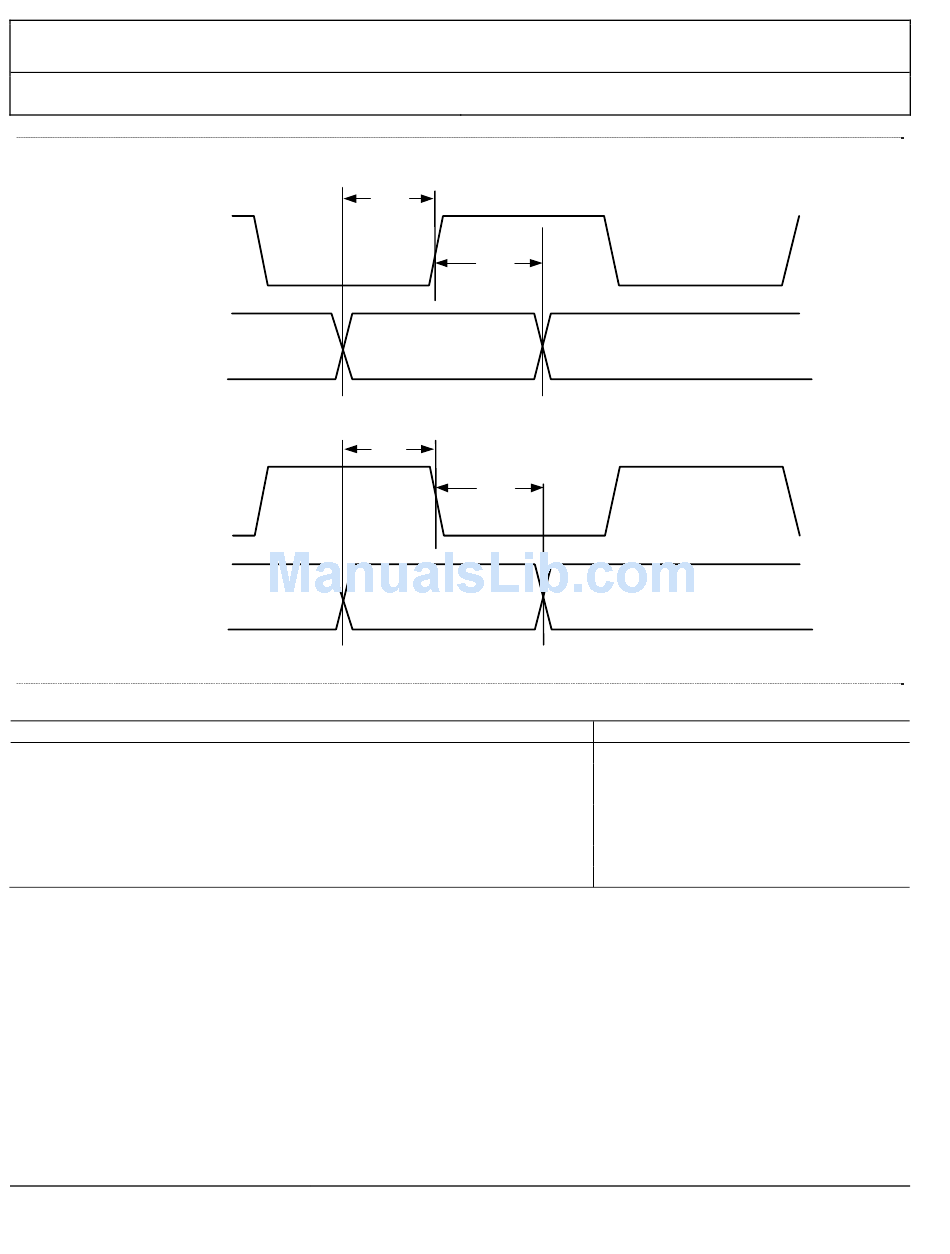

Figure 4 Timing For S/Pdif Audio Interface; Table 2 Absolute Maximum Ratings - Analog Devices ADV7511W Hardware User's Manual

ADV7511W
Timing for S/PDIF Audio Interface
Figure 4
MCLK
Rising Edge
R0x0B[6] = 0
Audio data:
S/PDIF
MCLK
Falling Edge
R0x0B[6] = 1
Audio data:
S/PDIF
Absolute Maximum Ratings
Table 2
Parameter
Digital Inputs (SDA, SCL, DDCSDA, DDCSCL, HPD, PD, CEC)
Audio/Video Digital Inputs (MCLK, SPDIF, I2S[3:0], SCLK, HSYNC, DE, VSYNC, CEC_CLK)
Digital Output Current
Operating Temperature Range
Storage Temperature Range
Maximum Junction Temperature
Maximum Case Temperature
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating
only; functional operation of the device at these or any other conditions above those indicated in the operational section of this
specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Voltage ratings assume that all power supplies are at nominal levels.
Page 14
of 45
t
ASU
t
AHLD
Valid data
t
ASU
t
AHLD
Valid data
HARDWARE USER'S GUIDE
Rating
−0.3 V to +5.5 V
−0.3 V to +3.63 V
20 mA
-40°C to +105°C
-65°C to +150°C
150°C
150°C
