  • Page 1 UPER ® UPER ERVER 6017R-TDLF USER’S MANUAL...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: About This Manual

    About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 6017R-TDLF. Installation and maintenance should be performed by experienced technicians only. The SuperServer 6017R-TDLF is a high-end server based on the SC813LT-350CB 1U rackmount chassis and the Super X9DRD-LF serverboard.
  • Page 4 UPER ERVER 6017R-TDLF User's Manual Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X9DRD-LF serverboard, including the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfi guring the serverboard.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    UPER ERVER 6017R-TDLF User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 SATA ........................ 1-2 I/O Ports ......................1-2 PCI Expansion Slots ..................1-2 Onboard Graphics ................... 1-2 Server Chassis Features ................
  • Page 7 Table of Contents Control Panel LEDs ..................3-2 Information LED ....................3-2 NIC1 ........................ 3-2 NIC2 ........................ 3-2 HDD ......................... 3-2 Power ......................3-3 Hard Drive Carrier LEDs ................. 3-3 Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............4-1 Warning Defi...
  • Page 8 UPER ERVER 6017R-TDLF User's Manual Jumper Settings .................... 5-18 Explanation of Jumpers ................5-18 5-10 Onboard Indicators ..................5-20 5-11 SATA Drive Ports ................... 5-21 5-12 Installing Software ..................5-22 SuperDoctor III ....................5-23 5-13 Onboard Battery .................... 5-25 Chapter 6 Advanced Chassis Setup Static-Sensitive Devices ..................

  • Page 9: Chapter 1 Introduction

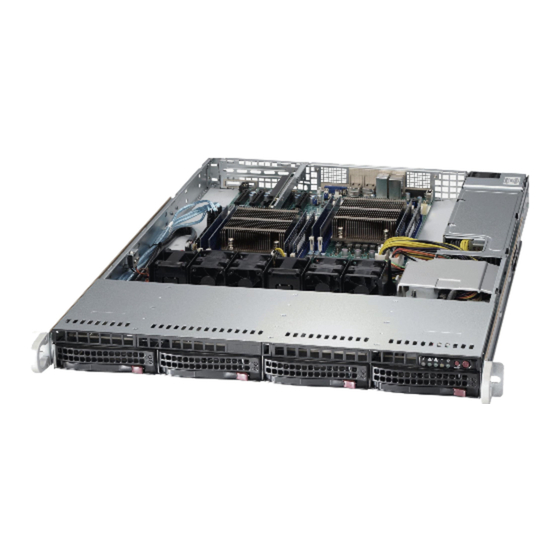

    Chapter 1 Introduction Overview The SuperServer 6017R-TDLF is a high-end server comprised of two main sub- systems: the SC813LT-350CB 1U chassis and the X9DRD-LF serverboard. Please refer to our web site for information on operating systems that have been certifi ed for use with the system (www.supermicro.com).

  • Page 10: Serverboard Features

    ERVER 6017R-TDLF User's Manual Serverboard Features At the heart of the SuperServer 6017R-TDLF lies the X9DRD-LF, a dual processor serverboard based on Intel's C602A chipset. Below are the main features of the X9DRD-LF (see Figure 1-1 for a block diagram of the chipset).

  • Page 11: Server Chassis Features

    Chapter 1: Introduction Server Chassis Features The following is a general outline of the main features of the SC813LT-350CB chassis. System Power The 6017R-TDLF (SC813LT-350CB) includes a single 350W power supply. See Chapter 6 for details. SATA Subsystem For the 6017R-TDLF, the SC813LT-350CB chassis was designed to support two SATA hard drives, which are hot-swappable units.
  • Page 12 UPER ERVER 6017R-TDLF User's Manual Figure 1-1. Intel C602A Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. PE1 PE2 PE2 PE3 PE3 DMI A,B A,B A,B C,D CPU0 LEFT CPU1 RIGHT E5-2600 E5-2600 W25Q128...

  • Page 13: Contacting Supermicro

    Chapter 1: Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...
  • Page 14 UPER ERVER 6017R-TDLF User's Manual Notes...

  • Page 15: Chapter 2 Server Installation

    Unpacking the System You should inspect the box the SuperServer 6017R-TDLF was shipped in and note if it was damaged in any way. If the server itself shows damage, you should fi le a damage claim with the carrier who delivered it.

  • Page 16: Choosing A Setup Location

    UPER ERVER 6017R-TDLF User's Manual Choosing a Setup Location • Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches) and approximately 30 inches of clearance in the back of the rack to allow for suffi cient airfl ow and ease in servicing.This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like).

  • Page 17: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 18: Rack Mounting Instructions

    UPER ERVER 6017R-TDLF User's Manual Rack Mounting Instructions This section provides information on installing the SC813LT-350CB chassis into a rack unit. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. You should also refer to the installation instructions that came with the rack unit you are using.
  • Page 19 Chapter 2: Server Installation Secure to the Front of the Rack Secure to the Rear of the Rack Attach the Two Sections of the Outer Rail Together Figure 2-2. Assembling the Outer Rails Installing the Outer Rails to the Rack 1.
  • Page 20 UPER ERVER 6017R-TDLF User's Manual Figure 2-3. Installing the Outer Rails to the Server Rack...
  • Page 21 Chapter 2: Server Installation Figure 2-4. Installing the Rack Rails Installing the Chassis into a Rack 1. Line chassis rails (A) with the front of the rack rails (B). 2. Slide the chassis rails into the rack rails, keeping the pressure even on both sides (you may have to depress the locking tabs when inserting).

  • Page 22: Installing The Chassis Into A Telco Rack

    UPER ERVER 6017R-TDLF User's Manual Installing the Chassis into a Telco rack To install the chassis into a Telco type rack, use two L-shaped brackets on either side of the chassis (four total). First, determine how far follow the server will extend out the front of the rack.

  • Page 23: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the hard drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specifi...

  • Page 24: Control Panel Leds

    UPER ERVER 6017R-TDLF User's Manual Control Panel LEDs The control panel located on the front of the SC813LT-350CB chassis has fi ve LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 25: Power

    Chapter 3: System Interface Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating. Hard Drive Carrier LEDs Each drive carrier has two LEDs. • Green: When illuminated, the green LED on the drive carrier indicates drive activity.
  • Page 26 UPER ERVER 6017R-TDLF User's Manual Notes...

  • Page 27: Chapter 4 Standardized Warning Statements For Ac Systems

    Chapter 4: Warning Statements for AC Systems Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
  • Page 28 UPER ERVER 6017R-TDLF User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 29 Warning Statements for AC Systems ‫ﺟﺴﺪﻳﺔ‬ ‫ﺍﺻﺎﺑﺔ‬ ‫ﺗﺘﺴﺒﺐ ﻓﻲ‬ ‫ﺣﺎﻟﺔ ﻳﻤﻜﻦ ﺃﻥ‬ ‫ﺍﻧﻚ ﻓﻲ‬ ‫ﺧﻄﺮ‬ ‫ﻳﻌﻨﻲ‬ ‫ﻫﺬﺍ ﺍﻟﺮﻣﺰ‬ !‫ﺗﺤﺬﻳﺮ‬ ‫ﺍﻟﺪﻭﺍﺋﺮ‬ ‫ﺑﺎﻟﻤﺨﺎﻁﺮ ﺍﻟﻨﺎﺟﻤﺔ ﻋﻦ‬ ‫ﻦ ﻋﻠﻰ ﻋﻠﻢ‬ ، ‫ﻛ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﺗﻌﻤﻞ ﻋﻠﻰ ﺃﻱ‬ ‫ﻗﺒﻞ ﺃﻥ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬ ‫ﺣﻮﺍﺩﺙ‬ ‫ﺃﻱ‬ ‫ﻭﻗﻮﻉ‬ ‫ﻤﻨﻊ‬ ‫ﻟ‬ ‫ﺍﻟﻮﻗﺎﺋﻴﺔ‬...

  • Page 30: Installation Instructions

    UPER ERVER 6017R-TDLF User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 31: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 32: Power Disconnection Warning

    UPER ERVER 6017R-TDLF User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 33 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 34: Equipment Installation

    UPER ERVER 6017R-TDLF User's Manual Equipment Installation Warning! Only trained and qualifi ed personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifi...

  • Page 35: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalifi ceerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 36: Battery Handling

    UPER ERVER 6017R-TDLF User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .('‫כלי אבטחה בלבד )מפתח, מנעול וכד‬ ‫ﻣﺤﻈﻮﺭﺓ‬ ‫ﻣﻨﺎﻁﻖ‬ ‫ﻟﺘﺮﻛﻴﺒﻬﺎ ﻓﻲ‬ ‫ﻫﺬﻩ ﺍﻟﻮﺣﺪﺓ‬ ‫ﺗﺨﺼﻴﺺ‬ ‫ﺗﻢ‬ ،‫ﺃﺩﺍﺓ ﺧﺎﺻﺔ‬ ‫ﻣﻦ ﺧﻼﻝ ﺍﺳﺘﺨﺪﺍﻡ‬ ‫ﻓﻘﻂ‬...
  • Page 37 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 38: Redundant Power Supplies

    UPER ERVER 6017R-TDLF User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 39: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 40: Comply With Local And National Electrical Codes

    UPER ERVER 6017R-TDLF User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫ﺍﻟﻠﻮﺣﺔ‬ ‫ﺃﻭﺍﻟﻄﺎﻗﺔ ﺍﻟﻤﻮﺟﻮﺩﺓ ﻋﻠﻰ‬ ‫ﺍﻟﺘﻴﺎﺭ ﺍﻟﻜﻬﺮﺑﺎﺋﻲ‬ ‫ﻣﻦ‬ ‫ﺧﻄﺮ‬ ‫ﻫﻨﺎﻙ‬ ‫ﻫﺬﺍ ﺍﻟﺠﻬﺎﺯ‬ ‫ﺧﺪﻣﺔ‬ ‫ﻛﻦ ﺣﺬﺭﺍ ﻋﻨﺪ‬ ‫ﻳﻌﻤﻞ‬ ‫ﺍﻟﻨﻈﺎﻡ‬ ‫ﻋﻨﺪﻣﺎ ﻳﻜﻮﻥ‬ 경고! 시스템이...

  • Page 41: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫ﺍﻟﻤﺘﻌﻠﻘﺔ‬ ‫ﺍﻟﻤﺤﻠﻴﺔ ﻭﺍﻟﻮﻁﻨﻴﺔ‬ ‫ﻘﻮﺍﻧﻴﻦ‬ ‫ﻳﺠﺐ ﺃﻥ ﻳﻤﺘﺜﻞ ﻟﻠ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬...

  • Page 42: Hot Swap Fan Warning

    UPER ERVER 6017R-TDLF User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 43 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 44: Power Cable And Ac Adapter

    UPER ERVER 6017R-TDLF User's Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fi re. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certifi...
  • Page 45 Chapter 4: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifi...
  • Page 46 UPER ERVER 6017R-TDLF User's Manual Notes 4-20...

  • Page 47: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install processors and heatsinks to the X9DRD-LF serverboard, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are described and a layout and quick reference chart are included in this chapter.

  • Page 48: Processor And Heatsink Installation

    UPER ERVER 6017R-TDLF User's Manual Processor and Heatsink Installation Notes: • Always connect the power cord last and always remove it before adding, re- moving or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink. •...
  • Page 49 Chapter 5: Advanced Serverboard Setup 3. With the lever labeled 'Close 1st' fully retracted, gently push down on the 'Open 1st' lever to open the load plate. Lift the load plate to open it completely. Gently push 4. Using your thumb and the index down to pop the load plate fi...
  • Page 50 UPER ERVER 6017R-TDLF User's Manual Warning: You can only install the CPU to the socket in one direction. Make sure that the CPU is properly inserted into the socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the load plate again and double-check that the CPU is aligned properly.

  • Page 51: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Serverboard Setup Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the re- quired amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the serverboard and the heatsink bracket underneath.

  • Page 52: Connecting Cables

    UPER ERVER 6017R-TDLF User's Manual Connecting Cables Now that the processors are installed, the next step is to connect the cables to the serverboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed in preconfi...

  • Page 53: I/O Ports

    Chapter 5: Advanced Serverboard Setup All JF1 wires have been bundled into single keyed ribbon cable to simplify their con- nection. Connect one end of this cable to JF1 and the other end to the Control Panel printed circuit board, located just behind the system status LEDs in the chassis. See the Connector Defi...

  • Page 54: Installing Memory

    UPER ERVER 6017R-TDLF User's Manual Installing Memory Note: Check the Supermicro web site for recommended memory modules. CAUTION Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Installing DIMMs 1. Insert the desired number of DIMMs into the memory slots, starting with slots DIMM1A.

  • Page 55: Adding Pci Cards

    Chapter 5: Advanced Serverboard Setup Processor & Memory Module Population Confi guration For memory to work properly, follow the tables below for memory installation. Processors and their Corresponding Memory Modules CPU# Corresponding DIMM Modules CPU1 P1-DIMMA1 P1-DIMMB1 P1-DIMMC1 P1-DIMMD1 CPU2 P2-DIMME1 P2-DIMMF1 P2-DIMMG1...

  • Page 56: Serverboard Details

    UPER ERVER 6017R-TDLF User's Manual Serverboard Details Figure 5-5. SUPER X9DRD-LF Layout USB2/3 USB0/1 JUIDB COM1 BMC CTRL LAN1 LAN2 LAN CTRL IPMI_LAN JPG1 JPB1 CTRL CLK CTRL JI2C1 JI2C2 JPW4 X9DRD-LF Rev. 1.10 JITP1 JBT1 CPU2 BIOS CPU1 LED2 JPW5 FAN4 X9DRD-LF Quick Reference...
  • Page 57 Chapter 5: Advanced Serverboard Setup Jumper Description Default Setting JBT1 Clear CMOS See Section 5-9 C1/JI SMB to PCI-E Slots Off (Disabled) JPB1 BMC Enabled Pins 1-2 (Enabled) JPG1 VGA Enabled Pins 1-2 (Enabled) JPL1 GLAN1/GLAN2 Enable Pins 1-2 (Enabled) JWD1 Watch Dog Timer Enable Pins 1-2 (Reset)

  • Page 58: Connector Defi Nitions

    UPER ERVER 6017R-TDLF User's Manual Connector Defi nitions ATX Power 24-pin Connector Pin Defi nitions Pin# Defi nition Pin # Defi nition Power Connectors +3.3V +3.3V -12V +3.3V A 2 4 - p i n m a i n p o w e r s u p p l y connector(JPW1), two 8-pin CPU power PS_ON...
  • Page 59 Chapter 5: Advanced Serverboard Setup NIC1/NIC2 LED Indicators GLAN1/2 LED Pin Defi nitions (JF1) The NIC (Network Interface Control- Pin# Defi nition ler) LED connection for GLAN port 1 is located on pins 11 and 12 of JF1, and NIC 2 LED the LED connection for GLAN Port 2 is on Pins 9 and 10.
  • Page 60 UPER ERVER 6017R-TDLF User's Manual Power Button Power Button Pin Defi nitions (JF1) The Power Button connection is located Pin# Defi nition on pins 1 and 2 of JF1. Momentarily Signal contacting both pins will power on/off the Ground system. This button can also be confi g- ured to function as a suspend button (with a setting in the BIOS - See Chapter 5).
  • Page 61 Chapter 5: Advanced Serverboard Setup LAN Ports Pin Defi nition Pin# Defi nition P2V5SB SGND Ethernet Ports TD0+ Act LED Two Gigabit Ethernet ports (LAN1, LAN2) TD0- P3V3SB are located on the I/O backplane on the TD1+ Link 100 LED (Yel- motherboard.
  • Page 62 UPER ERVER 6017R-TDLF User's Manual Fan Headers Fan Header Pin Defi nitions This motherboard has eight system/CPU Pin# Defi nition fan headers (Fan 1-Fan 4) on the moth- Ground erboard. All these 4-pin fans headers are +12V backward compatible with the traditional Tachometer 3-pin fans.
  • Page 63 Chapter 5: Advanced Serverboard Setup TPM/Port 80 Header Pin Defi nitions TPM Header/Port 80 Pin # Defi nition Pin # Defi nition A Trusted Platform Module/Port 80 LCLK header is located at JTPM1 to provide LFRAME# <(KEY)> TPM support and Port 80 connection. LRESET# +5V (X) Use this header to enhance system...

  • Page 64: Jumper Settings

    UPER ERVER 6017R-TDLF User's Manual Jumper Settings Explanation of Jumpers Connector Pins To modify the operation of the mother- board, jumpers can be used to choose between optional settings. Jumpers cre- Jumper ate shorts between two pins to change the function of the connector. Pin 1 is identifi...
  • Page 65 Chapter 5: Advanced Serverboard Setup VGA Enable VGA Enable Jumper Settings Jumper JPG1 allows the user to enable Jumper Setting Defi nition the onboard VGA connector. The default Pins 1-2 Enabled (Default) setting is 1-2 to enable the connection. Pins 2-3 Disabled See the table on the right for jumper settings.

  • Page 66: 5-10 Onboard Indicators

    UPER ERVER 6017R-TDLF User's Manual 5-10 Onboard Indicators Link LED Activity LED Rear View (when facing the GLAN LEDs rear side of the chassis) There are two GLAN ports on the moth- GLAN Activity Indicator (Right) LED Settings erboard. Each Gigabit Ethernet LAN port Color Status Defi...

  • Page 67: 5-11 Sata Drive Ports

    Chapter 5: Advanced Serverboard Setup 5-11 SATA Drive Ports SATA Connectors Serial ATA Pin Defi nitions There are two SATA 3.0 ports on the Pin# Defi nition motherboard. I-SATA 0/1 provide serial- Ground link signal connections, which are faster TX_P than the connections of Parallel ATA.

  • Page 68: 5-12 Installing Software

    UPER ERVER 6017R-TDLF User's Manual 5-12 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO fi...

  • Page 69: Superdoctor Iii

    Chapter 5: Advanced Serverboard Setup SuperDoctor III The SuperDoctor® III program is a web-based management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The SuperDoctor III program allows you to monitor the environment and operations of your system.
  • Page 70 UPER ERVER 6017R-TDLF User's Manual Figure 5-8. SuperDoctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/soft- ware/SuperDoctorIII.cfm. For Linux, we recommend that you use the SuperDoctor II application instead.

  • Page 71: 5-13 Onboard Battery

    Chapter 5: Advanced Serverboard Setup 5-13 Onboard Battery Care must be taken to assure that the chassis cover is in place when the 6017R- TDLF is operating to assure proper cooling. Out of warranty damage to the system can occur if this practice is not strictly followed. Figure 5-9.
  • Page 72 UPER ERVER 6017R-TDLF User's Manual Notes 5-26...

  • Page 73: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform mainte- nance on the SC813LT-350CB chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the next step.

  • Page 74: Control Panel

    UPER ERVER 6017R-TDLF Manual Figure 6-1. Chassis: Front and Rear Views System LEDs Control Panel Slim CD-ROM Drive (optional) SATA Drive Bays System Reset Main Power Power Supply Module Dedicated IPMI LAN VGA Port PCI Expansion Slot COM Port USB Ports LAN Ports Note: the 6017R-TDLF has a single power supply only (Part# PWS-351-1H) Control Panel...

  • Page 75: System Fans

    Chapter 6: Advanced Chassis Setup System Fans Two 10-cm blower fans provide all the cooling needed for the SuperServer 6017R- TDLF. It is very important that the chassis top cover is properly installed and making a good seal in order for the cooling air to circulate properly through the chassis and cool the components.
  • Page 76 UPER ERVER 6017R-TDLF Manual Figure 6-2. Accessing the Inside of the System Release buttons Figure 6-3. Removing System Cooling Fans...

  • Page 77: Drive Bay Installation/Removal

    Chapter 6: Advanced Chassis Setup Drive Bay Installation/Removal Removing the Front Bezel If your system has the optional front bezel attached to the chassis, you must fi rst remove it to gain access to the drive bays. 1. First unlock the front of the chassis then press the release knob (see Figure 6-4).

  • Page 78: Sata Drive Installation

    UPER ERVER 6017R-TDLF Manual SATA Drive Installation The SATA drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airfl ow for the Serial ATA drive bays. For this reason, even empty carriers without drives installed must remain in the chassis.

  • Page 79: Sata Power Cables

    Chapter 6: Advanced Chassis Setup Figure 6-6. Mounting a SATA Drive in a Carrier Drive Tray Release Button 4. Slide the hard drive into the tray with the printed circuit board side facing down. 5. Carefully align the mounting holes in the hard drive and the tray. Make sure the bottom of the hard drive and bottom of the hard drive tray are fl...

  • Page 80: Cd-Rom Drive Installation

    UPER ERVER 6017R-TDLF Manual CD-ROM Drive Installation The top cover of the chassis must be opened to gain full access to the CD-ROM drive bays. The 6017R-TDLF accomodates only slim CD-ROM drives. Side mount- ing brackets are needed to mount a slim CD-ROM drive in the 6017R-TDLF server. You must power down the system before installing or removing a CD-ROM drive.

  • Page 81: Power Supply

    Chapter 6: Advanced Chassis Setup Power Supply The SuperServer 6017R-TDLF has a single 350 watt power supply, which is auto- switching capable. This enables it to automatically sense and operate at a 100v to 240v input voltage. Power Supply Fail If the power supply unit fails, the system will shut down and you will need to replace the power supply unit.
  • Page 82 UPER ERVER 6017R-TDLF Manual Figure 6-7. Removing/Replacing the Power Supply 6-10...

  • Page 83: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMI BIOS Setup utility for the X9DRD-LF. It also provides the instructions on how to navigate the AMI BIOS Setup utility screens. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated. Starting BIOS Setup Utility To enter the AMI BIOS Setup utility screens, press the <Del>...

  • Page 84: Starting The Setup Utility

    UPER ERVER 6017R-TDLF User's Manual Note: For AMI UEFI BIOS Recovery, please refer to the UEFI BIOS Re- covery User Guide posted @http://www.supermicro.com/support/manuals/. Starting the Setup Utility Normally, the only visible Power-On Self-Test (POST) routine is the memory test. As the memory is being tested, press the <F2> key to enter the main menu of the AMI BIOS Setup utility.
  • Page 85 Chapter 7: BIOS The AMI BIOS main menu displays the following information: System Date This item displays the system date in Day MM/DD/YY format (e.g. Wed 10/12/2011). System Time This item displays the system time in HH:MM:SS format (e.g. 15:32:52). Supermicro X9DRD-LF Version This item displays the SMC version of the BIOS ROM used in this system.

  • Page 86: Advanced Setup Confi Gurations

    UPER ERVER 6017R-TDLF User's Manual Advanced Setup Confi gurations Use the arrow keys to select Advanced Setup and press <Enter> to access the following submenu items. Boot Features Quiet Boot This feature allows the user to select bootup screen display between POST mes- sages and the OEM logo.
  • Page 87 Chapter 7: BIOS Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Enabled, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at bootup and allow the drives that are attached to these host adaptors to function as bootable disks.
  • Page 88 UPER ERVER 6017R-TDLF User's Manual • CPU Stepping • Maximum CPU Speed • Minimum CPU Speed • Processor Cores • Intel HT (Hyper-Threading) Technology • Intel VT-x Technology • Intel SMX Technology • L1 Data Cache • L1 Code Cache •...
  • Page 89 Chapter 7: BIOS Limit CPUID Maximum This feature allows the user to set the maximum CPU ID value. Enable this function to boot the legacy operating systems that cannot support processors with extended CPUID functions. The options are Enabled and Disabled (for the Windows OS). Execute-Disable Bit (Available if supported by the OS &...
  • Page 90 UPER ERVER 6017R-TDLF User's Manual Intel® Virtualization Technology (Available when supported by the CPU) Select Enabled to support Intel Virtualization Technology, which will allow one platform to run multiple operating systems and applications in independent parti- tions, creating multiple "virtual" systems in one physical computer. The options are Enabled and Disabled.
  • Page 91 Chapter 7: BIOS CPU C6 Report (Available when Power Technology is set to Custom) Select Enabled to allow the BIOS to report the CPU C6 State (ACPI C3) to the operating system. During the CPU C6 State, the power to all cache is turned off.

  • Page 92: North Bridge

    UPER ERVER 6017R-TDLF User's Manual Short Duration Power Limit This item displays the time period during which short duration power is main- tained. Chipset Confi guration North Bridge This feature allows the user to confi gure the settings for the Intel North Bridge. Integrated IO Confi...
  • Page 93 Chapter 7: BIOS Isoc Select Enabled to enable Ischronous support to meet QoS (Quality of Service) requirements. This feature is especially important for virtualization technology. The options are Enabled and Disabled. QPI (Quick Path Interconnect) Link Speed Mode Use this feature to select data transfer speed for QPI Link connections. The options are Fast and Slow.
  • Page 94 UPER ERVER 6017R-TDLF User's Manual DRAM RAPL Mode RAPL (Running Average Power Limit) provides mechanisms to enforce power consumption limits on supported processors The options are DRAM RAPL MODE0 , DRAM RAPL MODE1, and Disabled. DDR Speed Use this feature to force a DDR3 memory module to run at a frequency other than what is specifi...
  • Page 95 Chapter 7: BIOS Thermal Throttling Throttling improves reliability and reduces power consumption in the proces- sor via automatic voltage control during processor idle states. The options are Disabled and CLTT (Closed Loop Thermal Throttling). South Bridge Confi guration This feature allows the user to confi gure the settings for the Intel PCH chip. PCH Information This feature displays the following PCH information.
  • Page 96 UPER ERVER 6017R-TDLF User's Manual SATA Confi guration When this submenu is selected, the AMI BIOS automatically detects the presence of IDE or SATA devices and displays the following items. SATA Port0~SATA Port1: The AMI BIOS displays the status of each SATA port as detected by the BIOS.
  • Page 97 Chapter 7: BIOS RAID Mode The following items are displayed when RAID Mode is selected: Port 0~1 Hot Plug Select Enabled to enable hot-plug support for the particular port. The options are Enabled and Disabled. PCIe/PCI/PnP Confi guration PCI ROM Priority Use this feature to select the Option ROM to boot the system when there are mul- tiple Option ROMs available in the system.
  • Page 98 UPER ERVER 6017R-TDLF User's Manual Maximum Read Request Select Auto to allow the system BIOS to automatically set the maximum Read Request size for a PCI-E device to enhance system performance. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes. ASPM Support This feature allows the user to set the Active State Power Management (ASPM) level for a PCI-E device.

  • Page 99: Serial Port Console Redirection

    Chapter 7: BIOS Super IO Confi guration Super IO Chip: This item displays the Super IO chip used in the motherboard. Serial Port 1 Confi guration Serial Port Select Enabled to enable a serial port specifi ed by the user. The options are En- abled and Disabled.

  • Page 100: Console Redirection Settings

    UPER ERVER 6017R-TDLF User's Manual Console Redirection Settings This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. Terminal Type This feature allows the user to select the target terminal emulation type for Con- sole Redirection.
  • Page 101 Chapter 7: BIOS VT-UTF8 Combo Key Support Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Enabled and Disabled. Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server.

  • Page 102: Tpm Enable Status

    UPER ERVER 6017R-TDLF User's Manual High Precision Event Timer Select Enabled to activate the High Precision Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback, reducing the de- pendency on other timestamp calculation devices, such as an x86 RDTSC Instruc- tion embedded in the CPU.
  • Page 103 Chapter 7: BIOS Intel TXT (LT-SX) Confi guration Intel TXT (LT-SX) Hardware Support This feature indicates if the following hardware components support the Intel Trusted Execution Technology. CPU: TXT (Trusted Execution Technology) Feature Chipset: TXT (Trusted Execution Technology) Feature Intel TXT (LT-SX) Confi guration This feature displays the following TXT confi...
  • Page 104 UPER ERVER 6017R-TDLF User's Manual NIC Confi guration Link Speed Use this feature to change the link speed and duplex for the current port. The op- tions are AutoNeg, 10Mbps Half, 10Mbps Full, 100Mbps Half, and 100Mbps full. Blink LEDs This feature allows the user to specify the duration for LEDs to blink.

  • Page 105: Event Logs

    Chapter 7: BIOS Event Logs Use this feature to confi gure Event Log settings.  Change SMBIOS Event Log Settings This feature allows the user to confi gure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 106 UPER ERVER 6017R-TDLF User's Manual Erasing Settings Erase Event Log Select Enabled to erase the SMBIOS (System Management BIOS) Event Log, which is completed before a event logging is initialized upon system reboot. The options are No, Yes, Next reset, and Yes, Every reset. When Log is Full Select Erase Immediately to immediately erase SMBIOS error event logs that ex- ceed the limit when the SMBIOS event log is full.

  • Page 107: Ipmi

    Chapter 7: BIOS IPMI Use this feature to confi gure Intelligent Platform Management Interface (IPMI) settings.  System Event Log Enabling/Disabling Options SEL Components Select Enabled for all system event logging at bootup. The options are Enabled and Disabled. Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot.
  • Page 108 UPER ERVER 6017R-TDLF User's Manual Customize EFI Logging Options Log EFI Status Codes Select Enabled to log EFI (Extensible Firmware Interface) Status Codes, Error Codes or Progress Codes. The options are Enabled and Disabled. Note: After making changes on a setting, be sure to reboot the system for the changes to take effect.

  • Page 109: Boot

    Chapter 7: BIOS Boot This submenu allows the user to confi gure the following boot settings for the system. CSM Support Select Enabled to support the EFI Compatibility Support Module (CSM), which provides compatibility support for traditional legacy BIOS for system boot. The op- tions are Enabled, Disabled, and Auto.

  • Page 110: Security

    UPER ERVER 6017R-TDLF User's Manual Security This menu allows the user to confi gure the following security settings for the system. Administrator Password Use this feature to set the Administrator Password which is required to enter the BIOS setup utility. The length of the password should be from 3-characters to 8-characters long.

  • Page 111: Save & Exit

    Chapter 7: BIOS Save & Exit This submenu allows the user to confi gure the Save and Exit settings for the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system confi guration, and reboot the computer. Select Discard Changes and Exit, and press <Enter>.
  • Page 112 UPER ERVER 6017R-TDLF User's Manual Discard Changes Select this feature and press <Enter> to discard all the changes and return to the BIOS setup. When the dialog box appears, asking you if you want to load previ- ous values, click Yes to load the values previous saved, or click No to keep the changes you've made so far.

  • Page 113: Appendix A Bios Error Beep Codes

    Appendix A: BIOS POST Error Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed at each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot.
  • Page 114 UPER ERVER 6017R-TDLF User's Manual Notes...

  • Page 115: Appendix B System Specifi Cations

    Appendix B: System Specifi cations Appendix B System Specifi cations Processors ® ® Dual Intel Xeon E5-2600 Series processors in LGA 2011 sockets Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel C602A Memory Capacity Eight DIMM sockets that can support up to 256GB of DDR3-1600/1333/1066/800 registered (RDIMM), Load Reduced (LRDIMM) ECC or Unbuffered (UDIMM)
  • Page 116 UPER ERVER 6017R-TDLF User's Manual System Cooling Two 10-cm blower fans (FAN-0135L4) System Input Requirements AC Input Voltage: 100V-240V AC auto-range Rated Input Current: 4.2A (100V) to 1.8A (240V) Rated Input Frequency: 50 to 60 Hz Power Supply Rated Output Power: 350W (Part# PWS-351-1H) Rated Output Voltages: +3.3V (15A), +5V (18A), +12V (29A), +5Vsb (3A) Operating Environment Operating Temperature: 10º...
  • Page 117 Appendix B: System Specifi cations Disclaimer (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...
  • Page 118 UPER ERVER 6017R-TDLF User's Manual Notes...
