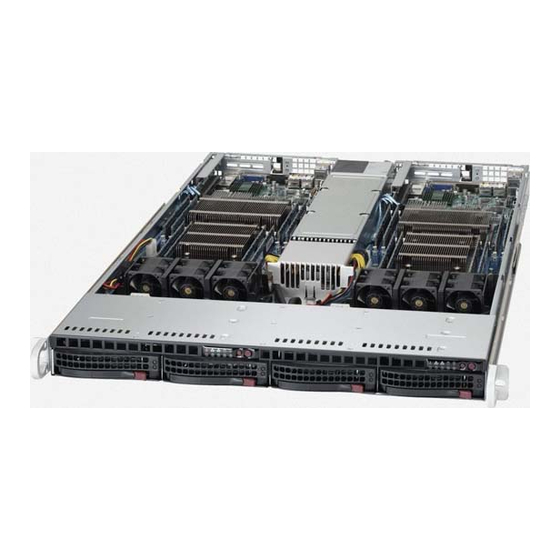

Supero SUPERSERVER 6017TR-TQF User Manual

Superserver 6017tr-tqf; 6017tr-tff; 6017tr-tf
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S
UPER
®
SUPERSERVER
6017TR-TQF
6017TR-TFF
6017TR-TF
User's Manual
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPERSERVER 6017TR-TQF and is the answer not in the manual?

Questions and answers

Related Manuals for Supero SUPERSERVER 6017TR-TQF

Summary of Contents for Supero SUPERSERVER 6017TR-TQF

  • Page 1 UPER ® SUPERSERVER 6017TR-TQF 6017TR-TFF 6017TR-TF User's Manual Revision 1.0...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Manual

    Chapter 2: Server Installation This chapter describes the steps necessary to install the SuperServer 6017TR-TQF/TFF/TF into a rack and check out the server confi guration prior to powering up the system. If your server was ordered without processor and memory components, this chapter will refer you to the appropriate sections of the manual for their installation.
  • Page 4 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Chapter 3: System Interface Refer here for details on the system interface, which includes the functions and information provided by the control panel on the chassis as well as other LEDs located throughout the system. Chapter 4: System Safety...
  • Page 5 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Notes...

  • Page 6: Table Of Contents

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 Serial ATA ....................... 1-2 PCI Expansion Slots ..................1-2 Onboard Controllers/Ports ................1-3 Graphics Controller ..................1-3 Infi...
  • Page 7 Table of Contents Rack Mounting Considerations ............... 2-3 Ambient Operating Temperature ..............2-3 Reduced Airfl ow ..................2-3 Mechanical Loading ................... 2-3 Circuit Overloading ..................2-3 Reliable Ground ..................2-3 Installing the System into a Rack ..............2-4 Identifying the Sections of the Rack Rails ............2-4 Installing the Inner Rail Extension ..............
  • Page 8 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Connecting Cables ..................5-2 Connecting Data Cables ................. 5-2 Control Panel Connectors and I/O Ports ............5-2 Connecting the Control Panel ................. 5-3 Processor and Heatsink Installation..............5-4 Installing a Passive CPU Heatsink ..............5-8 Removing the Heatsink ................... 5-9 Installing Memory ..................
  • Page 9 Table of Contents Installing the Serverboard ................6-9 Permanent and Optional Standoffs ..............6-9 Expansion Slot Setup ..................6-11 6-10 Power Supply ....................6-13 Power Supply Replacement ................6-13 Chapter 7 BIOS Introduction ...................... 7-1 Starting BIOS Setup Utility ................7-1 How To Change the Confi...
  • Page 10 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Notes...

  • Page 11: Chapter 1 Introduction

    One (1) Set of SATA 4-51/47/41/37-cm round S-RA cables (CBL-0201L) Two (2) 4-pin 20-cm power cables, ST to RA (CBL-0212L) • Two (2) Riser cards (RSC-R1U-E16R-O-P) • One (1) Rail set (MCP-290-00042-0V) Note: a complete list of safety warnings is provided on the Supermicro web site at http://www.supermicro.com/about/policies/safety_information.cfm...

  • Page 12: Serverboard Features

    512 MB, 1 GB, 2 GB, 4 GB, 8 GB, 16 GB or 32 GB sizes at 1.35V or 1.5V voltages. See Chapter 5 for details. Note: Check the Supermicro website (www.supermicro.com) for the latest memory support information. Serial ATA...

  • Page 13: Onboard Controllers/Ports

    The X9DRT-IBQF/IBFF/F features an integrated Matrox G200eW Video Controller. Infi niBand The 6017TR-TQF server include a QDR (quad data rate) speed Infi niBand QSFP connector. The 6017TR-TFF server includes a FDR (fourteen data rate) speed Infi niBand QSFP connector. Infi niBand is a scalable serial communications link intended for connecting processors with high-speed peripherals.

  • Page 14: Server Chassis Features

    SC808BT-1K28BP chassis includes four front panels on the handles of the chassis which control each of the systems. Each control panel on the SUPERSERVER 6017TR-TQF/TFF/TF provides you with system monitoring and control for one server node. LEDs indicate system power, HDD activity, network activity, system overheat and power supply failure.

  • Page 15: Cooling System

    Chapter 1: Introduction Cooling System The SC808 chassis accepts six (6) 4-cm system fans powered from either backpane or the serverboards. If not powered from the backpane, the SC808BT-1K28BP model chassis powers three fans from each of the two serverboards, so that when one of the serverboard drawers is removed, the other serverboards will continue running its fans.
  • Page 16 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Figure 1-1. Intel C602 Chipset: System Block Diagram Note: This is a general block diagram and may not exactly repre- sent the features on your serverboard. See the previous pages for the actual specifi cations of your serverboard. This block diagram is intended for your reference only.

  • Page 17: Contacting Supermicro

    Chapter 1: Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 18: Twin 2 : System Notes

    SATA Backplane/Drives As a system, the SuperServer 6017TR-TQF/TFF/TF supports the use of twelve SATA drives. A single SATA backplane works to apply system-based control for power and fan speed functions, yet at the same time logically connects a set of two SATA drives to each serverboard.

  • Page 19: Chapter 2 Server Installation

    fi le a damage claim with the carrier who delivered it. Decide on a suitable location for the rack unit that will hold the SuperServer 6017TR-TQF/TFF/TF. It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fi elds are generated.

  • Page 20: Cautions

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Cautions! Choosing a Setup Location • Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches) and approximately 30 inches of clearance in the back of the rack to allow for suffi cient airfl ow and ease in servicing.

  • Page 21: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

  • Page 22: Installing The System Into A Rack

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Installing the System into a Rack This section provides information on installing the SC808 chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. You should also refer to the installation instructions that came with the rack unit you are using.

  • Page 23: Installing The Inner Rail Extension

    Chapter 2: Server Installation Installing the Inner Rail Extension The SC808 chassis includes a set of inner rails in two sections: Inner rails and inner rail extensions. The inner rails are preattached and do not interfere with normal use of the chassis if you decide not to use a server rack. Attach the inner rail extension to stabilize the chassis within the rack.

  • Page 24: Outer Rack Rails

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Outer Rack Rails Outer rails attach to the rack and hold the chassis in place. Installing the Outer Rails to the Rack (Figure 2-3) 1. Attach the short bracket to the outside of the long bracket. You must align the pins with the slides.
  • Page 25 Chapter 2: Server Installation Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the fl oor before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over. Figure 2-4: Installing the Rack Rails Note: The fi...

  • Page 26: Checking The Serverboard Setup

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Checking the Serverboard Setup After you install the SuperServer 6017TR-TQF/TFF/TF in the rack, you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made. Accessing the inside of the System Before operating the server for the fi...

  • Page 27: Checking The Drive Bay Setup

    Each processor needs its own heat sink. See Chapter 5 for instructions on processor and heat sink installation. 2. Your SuperServer 6017TR-TQF/TFF/TF server system may have come with system memory already installed. Make sure all DIMMs are fully seated in their slots.
  • Page 28 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Caution: Except for short periods of time, do NOT operate the server without the cover in place. The chassis cover must be in place to allow proper airfl ow and prevent overheating. 2-10...

  • Page 29: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel and on the drive carriers to keep you constantly informed of the overall status of the system. SC808 models include four front panels on the handles of the chassis which control each of the systems. This chapter explains the meanings of all LED indicators and the appropriate response you may need to take.

  • Page 30: Control Panel Button

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Control Panel Button There are two push-buttons located on the front of the chassis. These are (in order from left to right) a reset button and a power on/off button. • Reset: The reset button is used to reboot the system.

  • Page 31: Drive Carrier Leds

    Chapter 3: System Interface • NIC2: Indicates network activity on GLAN2 when fl ashing • NIC1: Indicates network activity on GLAN1 when fl ashing • HDD: Indicates IDE channel activity, SATA drive, and/or DVD-ROM drive activity when fl ashing. • Power: Indicates power is being supplied to the system's power supply units.

  • Page 32: Sas Drives

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual SAS Drives This server system does not support SAS drives at this time.

  • Page 33: Chapter 4 Standardized Warning Statements For Ac Systems

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, Contact Supermicro's Technical Support department for assistance. Only certifi ed technicians should attempt to install or confi gure components.
  • Page 34 UPER ERVER 6017TR-TQF/TFF/TF User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 35 Warning Statements for AC Systems ‫ﺟﺴﺪﻳﺔ‬ ‫ﺍﺻﺎﺑﺔ‬ ‫ﺗﺘﺴﺒﺐ ﻓﻲ‬ ‫ﺣﺎﻟﺔ ﻳﻤﻜﻦ ﺃﻥ‬ ‫ﺍﻧﻚ ﻓﻲ‬ ‫ﺧﻄﺮ‬ ‫ﻳﻌﻨﻲ‬ ‫ﻫﺬﺍ ﺍﻟﺮﻣﺰ‬ !‫ﺗﺤﺬﻳﺮ‬ ‫ﺍﻟﺪﻭﺍﺋﺮ‬ ‫ﺑﺎﻟﻤﺨﺎﻁﺮ ﺍﻟﻨﺎﺟﻤﺔ ﻋﻦ‬ ‫ﻦ ﻋﻠﻰ ﻋﻠﻢ‬ ، ‫ﻛ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﺗﻌﻤﻞ ﻋﻠﻰ ﺃﻱ‬ ‫ﻗﺒﻞ ﺃﻥ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬ ‫ﺣﻮﺍﺩﺙ‬ ‫ﺃﻱ‬ ‫ﻭﻗﻮﻉ‬ ‫ﻤﻨﻊ‬ ‫ﻟ‬ ‫ﺍﻟﻮﻗﺎﺋﻴﺔ‬...

  • Page 36: Installation Instructions

    UPER ERVER 6017TR-TQF/TFF/TF User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 37: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw.

  • Page 38: Power Disconnection Warning

    UPER ERVER 6017TR-TQF/TFF/TF User's Manual Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V,20A. Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.
  • Page 39 Chapter 4: Warning Statements for AC Systems Le système doit être débranché de toutes les sources de puissance ainsi que de son cordon d'alimentation secteur avant d'accéder à l'intérieur du chassis pour ‫אזהרה מפני ניתוק חשמלי‬ installer ou enlever des composants de systéme. !‫אזהרה‬...

  • Page 40: Equipment Installation

    UPER ERVER 6017TR-TQF/TFF/TF User's Manual Equipment Installation Warning! Only trained and qualifi ed personnel should be allowed to install, replace, or service this equipment. Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifi ziertem Personal gestattet werden.

  • Page 41: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalifi ceerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 42: Battery Handling

    UPER ERVER 6017TR-TQF/TFF/TF User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .('‫כלי אבטחה בלבד )מפתח, מנעול וכד‬ ‫ﻣﺤﻈﻮﺭﺓ‬ ‫ﻣﻨﺎﻁﻖ‬ ‫ﻟﺘﺮﻛﻴﺒﻬﺎ ﻓﻲ‬ ‫ﻫﺬﻩ ﺍﻟﻮﺣﺪﺓ‬ ‫ﺗﺨﺼﻴﺺ‬ ‫ﺗﻢ‬ ،‫ﺃﺩﺍﺓ ﺧﺎﺻﺔ‬ ‫ﻣﻦ ﺧﻼﻝ ﺍﺳﺘﺨﺪﺍﻡ‬...
  • Page 43 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 44: Redundant Power Supplies

    UPER ERVER 6017TR-TQF/TFF/TF User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 45: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ Waarschuwing Deze eenheid kan meer dan één stroomtoevoeraansluiting bevatten. Alle aansluitingen dienen verwijderd te worden om het apparaat stroomloos te maken. Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is...

  • Page 46: Comply With Local And National Electrical Codes

    UPER ERVER 6017TR-TQF/TFF/TF User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫ﺍﻟﻠﻮﺣﺔ‬ ‫ﺃﻭﺍﻟﻄﺎﻗﺔ ﺍﻟﻤﻮﺟﻮﺩﺓ ﻋﻠﻰ‬ ‫ﺍﻟﺘﻴﺎﺭ ﺍﻟﻜﻬﺮﺑﺎﺋﻲ‬ ‫ﻣﻦ‬ ‫ﺧﻄﺮ‬ ‫ﻫﻨﺎﻙ‬ ‫ﻫﺬﺍ ﺍﻟﺠﻬﺎﺯ‬ ‫ﺧﺪﻣﺔ‬ ‫ﻛﻦ ﺣﺬﺭﺍ ﻋﻨﺪ‬ ‫ﻳﻌﻤﻞ‬ ‫ﺍﻟﻨﻈﺎﻡ‬ ‫ﻋﻨﺪﻣﺎ ﻳﻜﻮﻥ‬...

  • Page 47: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫ﺍﻟﻤﺘﻌﻠﻘﺔ‬ ‫ﺍﻟﻤﺤﻠﻴﺔ ﻭﺍﻟﻮﻁﻨﻴﺔ‬ ‫ﻘﻮﺍﻧﻴﻦ‬ ‫ﻳﺠﺐ ﺃﻥ ﻳﻤﺘﺜﻞ ﻟﻠ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬...

  • Page 48: Hot Swap Fan Warning

    UPER ERVER 6017TR-TQF/TFF/TF User's Manual Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen. ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement.
  • Page 49 Chapter 4: Warning Statements for AC Systems Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 50: Power Cable And Ac Adapter

    fi re. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certifi ed cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. Warnung Bei der Installation des Produkts, die zur Verfügung gestellten oder benannt...
  • Page 51 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifi és qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 52 UPER ERVER 6017TR-TQF/TFF/TF User's Manual Notes 4-20...

  • Page 53: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install the X9DRT-IBQF/IBFF/F serverboard into the chassis, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference.

  • Page 54: Connecting Cables

    (make sure the red wires connect to the pin 1 locations). If you are confi guring the system, keep the airfl ow in mind when routing the cables. The following cables need to be connected for the SuperServer 6017TR-TQF/TFF/TF system: •...

  • Page 55: Connecting The Control Panel

    Chapter 5: Advanced Serverboard Setup Back Panel I/O Port Locations and Defi nitions Back Panel USB Port 0 Back Panel USB Port 1 IPMI_Dedicated LAN Gigabit LAN 1 Gigabit LAN 2 COM Port 1 (Turquoise) Back Panel VGA (Blue) Infi niBand Connector (For X9DRT-IBQF/X9DRT-IBFF) UID Switch Connecting the Control Panel JF1 contains header pins for various front control panel connectors.

  • Page 56: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. Note: Refer to the Supermicro website for updates on CPU support. Note: When one CPU is installed, be sure to installed on CPU Socket 1 fi rst.
  • Page 57 Chapter 5: Advanced Serverboard Setup 2. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position. Pull lever away Press down on Load the Lever from the socket labeled 'Close 1st 3.
  • Page 58 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual 5. Use your thumb and index fi nger to hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys. Socket Keys CPU Keys 6. Once they are aligned, carefully lower the CPU straight down into the socket.
  • Page 59 Chapter 5: Advanced Serverboard Setup 7. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. 8. Close the load plate with the CPU inside the socket. Lock the lever labeled 'Close 1st' fi...

  • Page 60: Installing A Passive Cpu Heatsink

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Installing a Passive CPU Heatsink 1. Apply the proper amount of thermal grease to the heatsink. 2. Place the heatsink on top of the CPU so that the two mounting holes on the heatsink are aligned with those on the retention mechanism.

  • Page 61: Removing The Heatsink

    Chapter 5: Advanced Serverboard Setup Removing the Heatsink Caution: We DO NOT recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to uninstall the heatsink to prevent damage done to the CPU or the CPU socket. 1.

  • Page 62: Installing Memory

    ECC/Unbuffered ECC/non-ECC SDRAM. Populating two slots at a time with memory modules of the same size and type will result in interleaved (128-bit) memory, which is faster than non-interleaved (64-bit) memory.” Note: Check the Supermicro website (www.supermicro.com) for the latest memory support information. Maximum Memory...
  • Page 63 Chapter 5: Advanced Serverboard Setup Figure 5-3. Installing DIMM into Slot To Install: Insert Notch Notch module vertically and press down until it snaps into place. Front View Pay attention to the alignment notch at the bottom. Note: Notch should align with To Remove: Use the receptive key point on the slot.

  • Page 64: Dimm Module Population Confi Guration

    1066,1333, 1600 DRx8 ECC Note: For detailed information on memory support and updates, please refer to the SMC Recommended Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm. Installing RDIMM (ECC) Memory Intel E5-2600 Series Processor RDIMM Memory Support Ranks Per Memory DIMM &...
  • Page 65 Note: For detailed information on memory support and updates, please refer to the SMC Recommended Memory List posted on our website at http://www.supermicro.com/support/ resources/mem.cfm. Note 1: For the memory modules to work properly, please install DIMM modules of the same type, same speed and same operating frequency on the serverboard.

  • Page 66: Adding Pci Expansion Cards

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Adding PCI Expansion Cards The 6017TR-TQF/TFF/TF includes one preinstalled riser card per node designed specifi cally for use in the SC808BT-1K28BP 1U rackmount chassis. These riser cards support one low-profi le PCI Express x16 cards to fi t inside the chassis for each node.

  • Page 67: Serverboard Details

    Chapter 5: Advanced Serverboard Setup Serverboard Details Figure 5-4. X9DRT-IBQF/IBFF/F Serverboard Layout (not drawn to scale) LAN1 LAN2 USB0/1 COM1 JBR1 IPMI_LAN CTRL CTRL JPL1 JVRM_I2C1 C602J BIOS JBT1 X9DRT-F Rev. 1.01A CPU1 CLOSE 1st Processor OPEN 1st CPU2 CLOSE 1st Processor OPEN 1st Fan3...
  • Page 68 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Notes: 1. For the latest CPU/Memory updates, please refer to our website at http:// www.supermicro.com/products/serverboard/ for details. 2. Use only the correct type of onboard CMOS battery as specifi ed by the manufacturer. Do not install the onboard battery upside down to avoid possible explosion.
  • Page 69 Chapter 5: Advanced Serverboard Setup BMC Heartbeat LEM1 Green: Blinking BMC Normal Connector Description Infi niBand Connector (X9DRT-IBQF and X9DRT-IBFF only) I-SATA 0/5 Intel PCH SATA Connectors 0-5 (SATA 3.0 Ports 0/1, SATA 2.0 Ports 2-5) FAN 1, FAN CPU/System Fan Headers (Fan1, Fan3, Fan4) J23/J24 20-Pin Main Power Connectors JBAT1...

  • Page 70: Connector Defi Nitions

    For proper use of these proprietary PWR Connectors, please customize your PWR cables based on Supermicro PWR Connector Pin-Out Definitions listed above. Note 2: The black square (dot) on a power connector indicates the location of Pin 1.
  • Page 71 Chapter 5: Advanced Serverboard Setup PW_ON Connector Power Button Pin Defi nitions The Power Button connection is located (JF1) on pins 1 and 2 of JF1. Momentarily Pin# Defi nition contacting both pins will power on/off PW_ON the system. This button can also be Ground configured to function as a suspend button (with a setting in the BIOS - See...
  • Page 72 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual NIC1 (LAN1) LED NIC1 LED Pin Defi nitions (JF1) The NIC (Network Interface Controller) Pin# Defi nition LED connections for GLAN port 1 are NIC 2 Activity LED located on pins 11 and 12 of JF1, and...
  • Page 73 Chapter 5: Advanced Serverboard Setup Serial Ports Serial Port Pin Defi nitions (COM1/COM2) The COM1 serial port is located beside Pin # Defi nition Pin # Defi nition the VGA port. Refer to the serverboard layout for the location of the COM2 header.
  • Page 74 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual IPMB I C SMB SMB Header (JIPMB1) Pin Defi nitions A System Management Bus header Pin# Defi nition for the IPMI slot is located at JIPMB1. Data Connect an appropriate cable here to Ground use the IPMB I...
  • Page 75 Chapter 5: Advanced Serverboard Setup Ethernet LAN Ports LAN Ports (LAN1/2) Pin Defi nition Two Gigabit Ethernet ports (LAN1/2) Pin# Defi nition Pin# Defi nition are located on the I/O backplane on P2V5SB SGND the serverboard. In addition, an IPMI TD0+ Act LED Dedicated LAN is located above USB...
  • Page 76 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Unit Identifi er Switches UID Switch Two Unit Identifi er (UID) Switches and Pin# Defi nition two LED Indicators are located on the Ground serverboard. The Front Panel UID Switch Ground is located at Pin 16 on JF2. The Rear...

  • Page 77: Jumper Settings

    Chapter 5: Advanced Serverboard Setup Jumper Settings Connector Pins Explanation of Jumpers To modify the operation of the serverboard, Jumper jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function Setting of the connector.
  • Page 78 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Watch Dog Enable/Disable Watch Dog (JWD1) Jumper Settings Watch Dog (JWD1) is a system monitor Jumper Setting Defi nition that can reboot the system when a Pins 1-2 Reset (default) software application hangs. Close Pins Pins 2-3...

  • Page 79: 5-10 Onboard Indicators

    Chapter 5: Advanced Serverboard Setup 5-10 Onboard Indicators GLAN LEDs LAN LED (Connection Speed Indicator) The Gigabit LAN ports are located on LED Color Defi nition the IO Backplane on the serverboard. 10 MHz On each Gb LAN port, one LED blinks Green 100 MHz to indicate activity while the other may be...

  • Page 80: 5-11 Pci-Express And Serial Ata Connections

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Infi niBand LED Indicators Infi niBand Link LED (LEB1) Settings Both the X9DRT-IBQF and X9DRT-IBFF Color Status Defi nition serverboards have two Infi niBand LED Green Solid Infi niBand Connected Indicators (LEB1/LEB2) that are located No connection on the serverboard.

  • Page 81: 5-12 Installing Drivers

    Chapter 5: Advanced Serverboard Setup 5-12 Installing Drivers The CD that came bundled with the system contains drivers, some of which must be installed, such as the chipset driver. After inserting this CD into your CD-ROM drive, the display shown in Figure 5-6 should appear. (If this display does not appear, click on the My Computer icon and then on the icon representing your CD-ROM drive.

  • Page 82: Supero Doctor Iii

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Supero Doctor III The SuperDoctor® III program is a Web base management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The SuperDoctor III program included on the CD-ROM that came with your serverboard allows you to monitor the environment and operations of your system.
  • Page 83 Chapter 5: Advanced Serverboard Setup Figure 5-8. Supero Doctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/software/ SuperDoctorIII.cfm.For Linux, we recommend that you use the SuperoDoctor II application instead.

  • Page 84: Onboard Battery

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual 5-13 Onboard Battery Caution: There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 5-9). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).

  • Page 85: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC808BT-1K28BP chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 86: Control Panel

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Figure 6-1. Front and Rear Chassis Views Control Panel Control Panel SATA Drives (4) COM1 Port USB Ports Infi niband Port Ethernet Ports IPMI LAN Port VGA Port Control Panel The control panel is located on the front of the chassis. The LEDs inform you of system status.

  • Page 87: Chassis Cover

    Chapter 6: Advanced Chassis Setup Chassis Cover Before operating the SC808 chassis for the fi rst time, it is important to remove the protective fi lm covering the top of the chassis, in order to allow for proper ventilation and cooling. Opening the Chassis Cover (Figure 6-2)) 1.

  • Page 88: Air Shrouds

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Air Shrouds Air shrouds concentrate airfl ow to maximize fan effi ciency. The SC808 chassis air shroud does not require screws to set up. The SC808 chassis requires two identical air shrouds. Installing an Air Shroud 1.

  • Page 89: System Fans

    Chapter 6: Advanced Chassis Setup System Fans Six fans provide cooling for the chassis (Figure 6-3). These fans circulate air through the chassis as a means of lowering the chassis internal temperature. The SC808 system fans are hot-swappable. There is no need to power-down the system when switching fans.

  • Page 90: Installing And Removing Hard Drives

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Installing and Removing Hard Drives Accessing the Drive Bays SATA Drives: You do not need to access the inside of the chassis or remove power to replace or swap SATA drives. Each hard disk drive is in a separate carrier that may be removed to access its hard drive.
  • Page 91 Chapter 6: Advanced Chassis Setup The drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airfl ow in the drive bays (Figure 6-6). Figure 6-6: Chassis Drive Carrier Dummy Drive Drive Tray Installing a Drive into the Hard Drive Carrier...
  • Page 92 5. Use the open handle to slide the drive carrier into the chassis. 6. Close the drive carrier handle. Caution! Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro Web site at http://www.supermicro.com/products/nfo/files/...

  • Page 93: Installing The Serverboard

    Chapter 6: Advanced Chassis Setup Installing the Serverboard I/O Shield The I/O shield holds the serverboard ports in place. The I/O shield does not require installation, however, the serverboard must match up with the I/O shield (Figure 6-9). Figure 6-9: I/O Shield Placement I/O Shields Permanent and Optional Standoffs Standoffs prevent short circuits by securing space between the serverboard and...
  • Page 94 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual 5. Secure the serverboard to the chassis using the rounded, Phillips head screws. Each serverboard requires fi ve screws. Do not exceed eight pounds of torque when tightening down the serverboard. 6. Repeat steps 3 - 5 for the second side of the chassis.

  • Page 95: Expansion Slot Setup

    Chapter 6: Advanced Chassis Setup Expansion Slot Setup SC808 chassis includes I/O slots for expansion cards. Each side supports one low profi le, half-length expansion card for a total of two per system (Figure 6-11). Figure 6-11: Expansion Card Placement Expansion Card Slot Clip Temporary "L"...
  • Page 96 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Figure 6-12: Installing Expansion Cards Expansion Card Bracket Screw Expansion Card Bracket Riser Card PCI Slot Cover Expansion Card 6-12...

  • Page 97: 6-10 Power Supply

    The SC808 chassis utilizes one power supply. In the unlikely event that the power supply unit must be replaced, the system will shut down. Replacement units can be ordered directly from Supermicro (see contact information in the Preface). Changing the Power Supply (Figure 6-13) 1.
  • Page 98 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Figure 6-13: Changing the Power Supply Release Tab 6-14...

  • Page 99: Chapter 7 Bios

    When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note: the AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.) The AMI BIOS Setup Utility uses a key-based navigation system called "hot keys".

  • Page 100: Starting The Setup Utility

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.
  • Page 101 Day MM/DD/YY format. The time is entered in HH:MM:SS format. (Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.). Supermicro X9DRT Version This item displays the SMC version of the BIOS ROM used in this system.

  • Page 102: Advanced Settings Menu

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Advanced Settings Menu Select the Advanced tab to access the following submenu items. Boot Features Quiet Boot This feature allows the user to select bootup screen display between POST messages and the OEM logo. Select Disabled to display the POST messages.
  • Page 103 Chapter 7: BIOS Wait For 'F1' If Error Select Enabled to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Enabled, the ROM BIOS of the host adaptors will "capture"...
  • Page 104 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual CPU Confi guration This submenu displays the information of the CPU as detected by the BIOS. It also allows the user to confi gure CPU settings. Socket 1 CPU Information, Socket 2 CPU Information This submenu displays the following information regarding the CPUs installed in Socket 1 and Socket 2.
  • Page 105 Chapter 7: BIOS Hyper-threading Select Enabled to support Intel Hyper-threading Technology to enhance CPU performance. The options are Enabled and Disabled. Active Processor Cores Set to Enabled to use a processor's second core and above. (Please refer to Intel's website for more information.) The options are All, 1, 2, 4, and 6. Limit CPUID Maximum This feature allows the user to set the maximum CPU ID value.
  • Page 106 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual DCU IP Prefetcher Select Enabled for DCU (Data Cache Unit) IP Prefetcher support, which will prefetch IP addresses to improve network connectivity and system performance. The options are Enabled and Disabled. ® Intel Virtualization Technology (Available when supported by the CPU)
  • Page 107 Chapter 7: BIOS CPU C3 Report (Available when Power Technology is set to Custom) Select Enabled to allow the BIOS to report the CPU C3 State (ACPI C2) to the operating system. During the CPU C3 State, the CPU clock generator is turned off.

  • Page 108: North Bridge

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Recommended Short Duration Power Limit This item displays the short duration power settings (in watts) recommended by the manufacturer. Short Duration Power Limit This item displays the time period during which short duration power (in watts) is maintained.
  • Page 109 Chapter 7: BIOS Port 1A Link Speed Select GEN1 to enable PCI-Exp Generation 1 support for the port. Select GEN2 to enable PCI-Exp Generation 2 support for the port. Select GEN3 to enable PCI-Exp Generation 3 support for the port. The options are GEN1, GEN2, and GEN3.
  • Page 110 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual QPI Link Frequency Select Use this feature to select the desired QPI frequency. The options are Auto, 6.4 GT/s, 7.2 GT/s, and 8.0 GT/s. DIMM Confi guration This section displays the following DIMM information. Current Memory Mode This item displays the current memory mode.
  • Page 111 Chapter 7: BIOS Memory Energy/Performance Use this feature to determine the parameters for memory module energy consumption. Select Performance to maintian optimal functionality or select Energy Saving to reduce power consumption. The options are Performance and Energy Saving. DDR Speed Use this feature to force a DDR3 memory module to run at a frequency other than what is specifi...
  • Page 112 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Device Tagging Select Enabled to support device tagging. The options are Disabled and Enabled. Thermal Throttling Throttling improves reliability and reduces power consumption in the processor via automatic voltage control during processor idle states. The options are Disabled and CLTT (Closed Loop Thermal Throttling).
  • Page 113 Chapter 7: BIOS EHCI Hand-Off This item is for operating systems that do not support Enhanced Host Controller Interface (EHCI) hand-off. When enabled, EHCI ownership change will be claimed by the EHCI driver. The options are Disabled and Enabled. SATA Confi guration When this submenu is selected, the AMI BIOS automatically detects the presence of IDE or SATA devices and displays the following items.
  • Page 114 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Port 0~5 Staggered Spin Up Select Enabled to enable Staggered Spin-up support to prevent excessive power consumption caused by multiple HDDs spinning-up simultaneously. The options are Enabled and Disabled. RAID Mode The following items are displayed when RAID Mode is selected: Port 0~5 Hot Plug Select Enabled to enable hot-plug support for the particular port.
  • Page 115 Chapter 7: BIOS Maximum Read Request Select Auto to allow the system BIOS to automatically set the maximum Read Request size for a PCI-E device to enhance system performance. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes. ASPM Support This feature allows the user to set the Active State Power Management (ASPM) level for a PCI-E device.
  • Page 116 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Super IO Confi guration Super IO Chip: This item displays the Super IO chip used in the serverboard. COM Confi guration Serial Port Select Enabled to enable a serial port specifi ed by the user. The options are Enabled and Disabled.

  • Page 117: Serial Port Console Redirection

    Chapter 7: BIOS SOL Confi guration Serial Port Select Enabled to enable a serial port specifi ed by the user. The options are Enabled and Disabled. Device Settings This item displays the settings of Serial Port 2 (SOL). Change Settings This option specifi...

  • Page 118: Console Redirection Settings

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Console Redirection Settings This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection.
  • Page 119 Chapter 7: BIOS VT-UTF8 Combo Key Support Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Enabled and Disabled. Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server.
  • Page 120 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Console Redirection Settings (for EMS) This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. Out-of-Band Management Port The feature selects a serial port used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote server.

  • Page 121: Acpi Settings

    Chapter 7: BIOS ACPI Settings Use this feature to confi gure Advanced Confi guration and Power Interface (ACPI) power management settings for your system. ACPI Sleep State Use this feature to select the ACPI State when the system is in sleep mode. Select S1 (CPU Stop Clock) to erase all CPU caches and stop executing instructions.
  • Page 122 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Trusted Computing (Available when a TPM device is detected by the BIOS) Confi guration TPM Support Select Enabled on this item and enable the TPM jumper on the serverboard to enable TPM support to improve data integrity and network security. The options are Enabled and Disabled.
  • Page 123 Chapter 7: BIOS Intel TXT (LT-SX) Confi guration Intel TXT (LT-SX) Hardware Support This feature indicates if the following hardware components support the Intel Trusted Execution Technology. TXT (Trusted Execution Technology) Feature Chipset TXT (Trusted Execution Technology) Feature Intel TXT (LT-SX) Confi guration This feature displays the following TXT confi...
  • Page 124 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual ME Subsystem This feature displays the following ME Subsystem Confi guration settings. • ME BIOS Interface Version • ME Version iSCSI Confi guration This item displays iSCSI confi guration information: iSCSI Initiator Name This item displays the name of the iSCSI Initiator, which is a unique name used in the world.
  • Page 125 Chapter 7: BIOS NIC Confi guration Link Speed Use this feature to change the link speed and duplex for the current port. The options are AutoNeg, 10Mbps Half, 10Mbps Full, 100Mbps Half, and 100Mbps full. Wake on LAN Select enabled to wake the system with a magic packet. The options are Enabled and Disabled.

  • Page 126: Event Logs

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Event Logs Select the Event Logs tab to access the following submenu items. Change SMBIOS Event Log Settings This feature allows the user to confi gure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 127 Chapter 7: BIOS PCI Error Logging Support Select Enabled to support error event logging for PCI slots. The options are Enabled and Disabled. Erasing Settings Erase Event Log Select Enabled to erase the SMBIOS (System Management BIOS) Event Log, which is completed before a event logging is initialized upon system reboot.

  • Page 128: Ipmi

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual IPMI Select the IPMI (Intelligent Platform Management Interface) tab to access the following submenu items. IPMI Firmware Revision, IPMI Status These items indicates your system IPMI fi rmware revision number and status. System Event Log SEL Components Select Enabled for all system event logging at bootup.
  • Page 129 Chapter 7: BIOS When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately. Custom EFI Logging Options Log EFI Status Codes Select Enabled to log EFI (Extensible Firmware Interface) Status Codes, Error...

  • Page 130: Boot

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Station MAC Address This item displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers. Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

  • Page 131: Security

    Chapter 7: BIOS Add New Boot Option This feature allows the user to add a new EFI boot device to the boot priority list. Delete Boot Option This feature allows the user to select a EFI boot device to delete from the boot priority list.

  • Page 132: Save & Exit

    SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Administrator Password Use this feature to set the Administrator Password which is required to enter the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long. Save & Exit This submenu allows the user to confi...
  • Page 133 Chapter 7: BIOS Save Changes and Reset When you have completed the system confi guration changes, select this option to save the changes and reboot the computer so that the new system confi guration settings can take effect. Select Save Changes and Exit, and press <Enter>. When the dialog box appears, asking you if you want to exit the BIOS setup without saving, select Yes to quit BIOS without saving the changes, or select No to quit the BIOS and save changes.
  • Page 134 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Boot Override This feature allows the user to override the Boot Option Priorities setting in the Boot menu, and instead immediately boot the system with one of the listed devices. This is a one-time override. 7-36...

  • Page 135: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 136 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Notes...

  • Page 137: Appendix B System Specifi Cations

    The SuperServer 6017TR-TQF/TFF/TF contains four (4) hot-swap drive bays to house twelve standard SATA drives, two per node. PCI Expansion The SuperServer 6017TR-TQF/TFF/TF has one (1) PCI Express 3.0 x16 slot available per node. Serverboard X9DRT-IBQF/IBFF/F serverboard (proprietary form factor)
  • Page 138 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual Chassis SC808BT-1K28BP (1U rackmount) Dimensions: (WxHxD) 17.2 x 1.7 x 27.75 in. (437 x 43 x 705 mm) Weight Gross (Bare Bone): 39 lbs. (17.7 kg.) System Cooling The system has six (6) 4-cm PWM system cooling fans...
  • Page 139 Appendix B: System Specifi cations Notes...
  • Page 140 SUPERSERVER 6017TR-TQF/TFF/TF User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...
