User Interface

4 User Interface

4.1 Local Control Panel

The LCP is the combined display and keypad. The LCP can
be attached to the display connector outside the unit
(without opening the enclosure) via the LCP cable/plug.
The LCP is the user interface to the frequency converter.
The LCP has several user functions.
•
Start, stop, and control speed when in local
control
•
Display operational data, status, warnings, and
cautions
•
Programming frequency converter functions
•
Manually reset the frequency converter after a
fault when auto-reset is inactive
An optional numeric LCP (NLCP) is also available. The NLCP
operates in a manner similar to the LCP. See the FCD 302
Programming Guide, MG04GXYY for details on use of the
NLCP.

4.1.1 LCP Layout

The LCP is divided into four functional groups (see
Illustration 4.1).
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
®
VLT Decentral Drive FCD 302 Operating Instructions

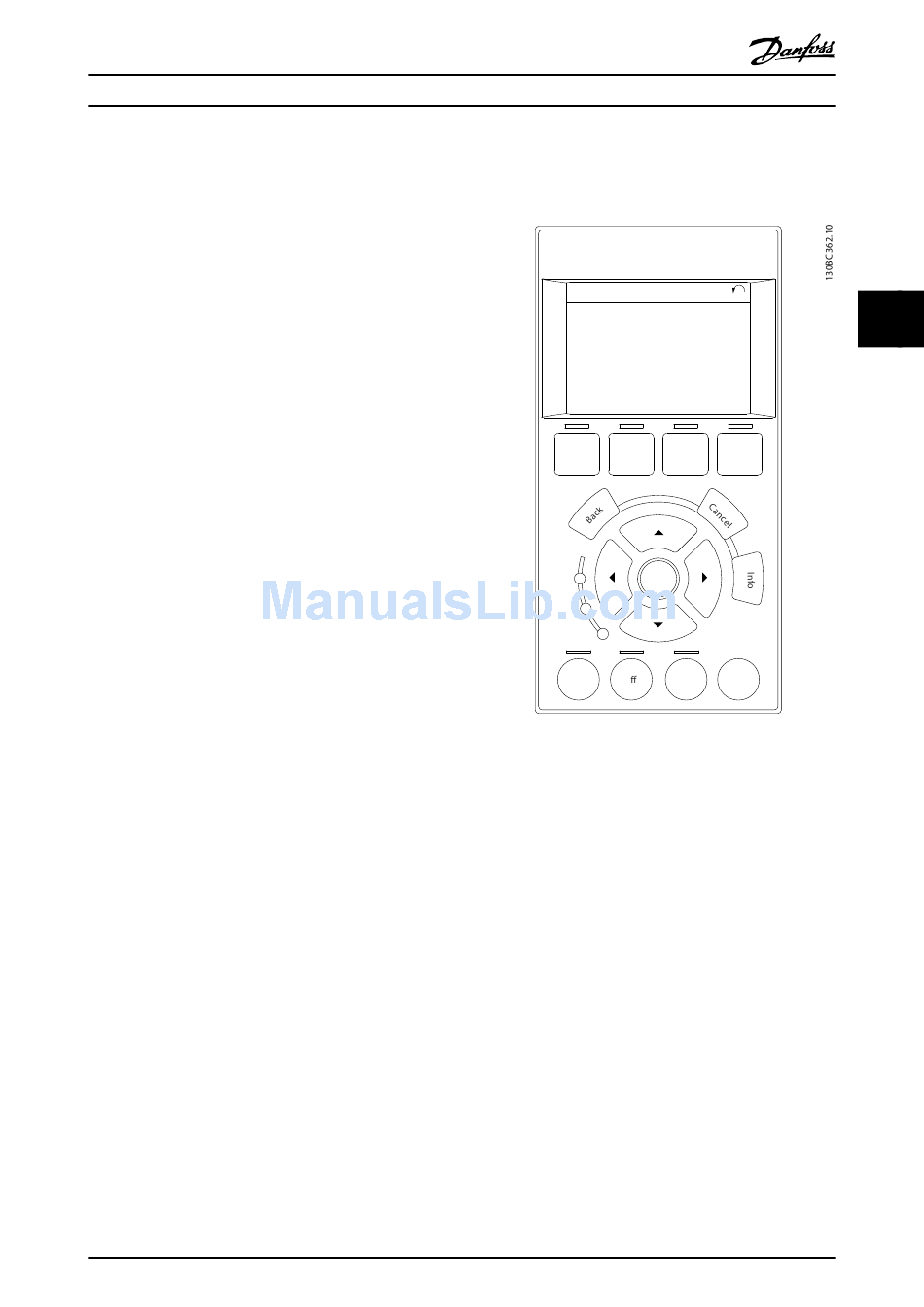

Illustration 4.1 LCP

®
MG04F302 - VLT is a registered Danfoss trademark
Status
1234rpm 1.0 A
43,5Hz
a
Run OK
Quick Main
b
Status
Menu Menu
c On
OK
Warn.
Alarm
Hand
d
O
on
a. Display area.
b. Display menu keys for changing the display to
show status options, programming, or error
message history.
c. Navigation keys for programming functions,
moving the display cursor, and speed control in
local operation. Also included are the status
indicator lights.
d. Operational mode keys and reset.
1(1)
43,5Hz
Alarm
Log
Auto
Reset
on
33
4 4
