Installation

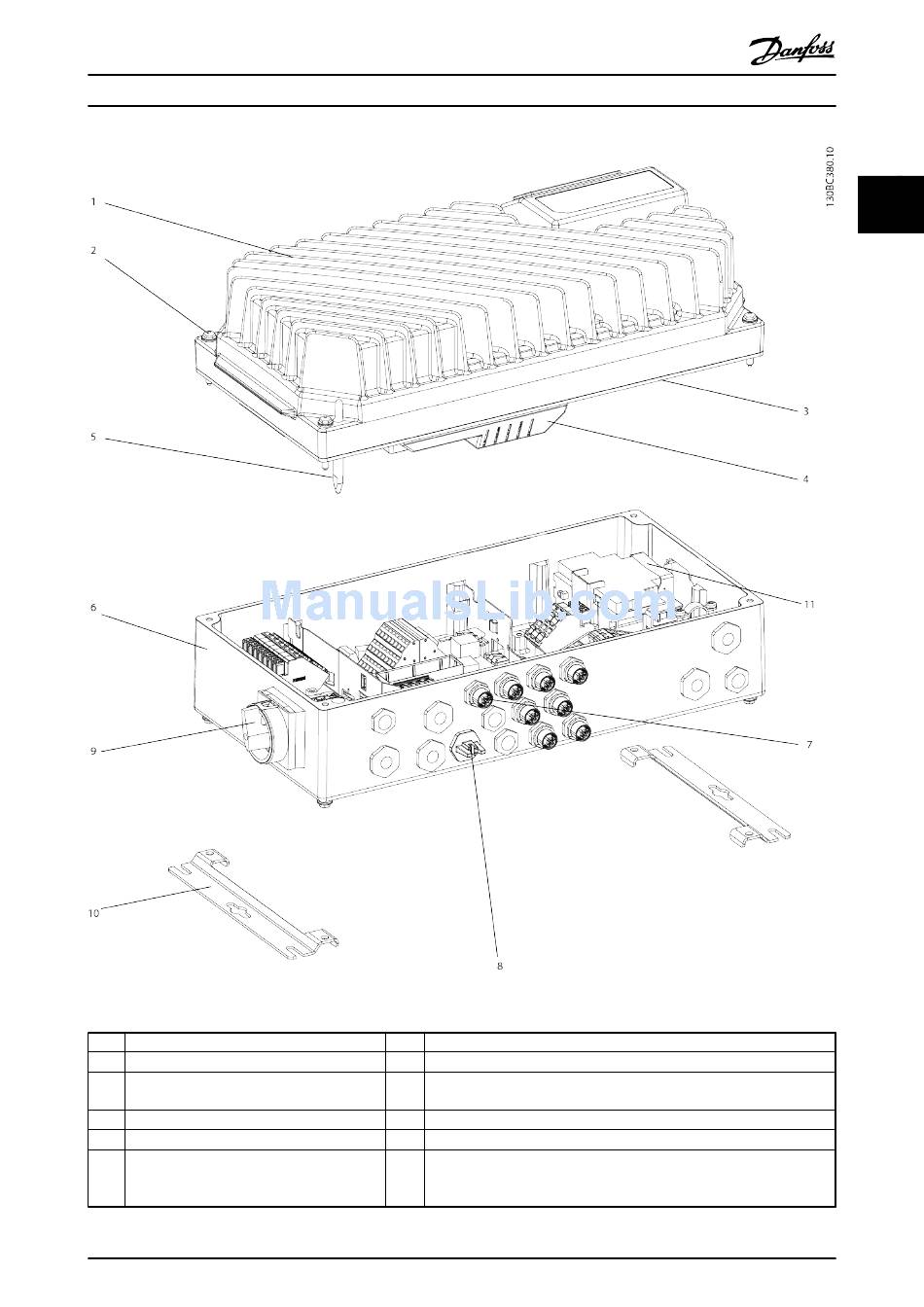

Illustration 2.2 Exploded View Large Unit

1 Inverter part
2 Fastening screws (4 x, one in each corner)
3 Sealing gasket
4 Inverter part plastic cover
5 Ground connection pin
6 Installation box
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
®
VLT Decentral Drive FCD 302 Operating Instructions
7 Display connection
8 Access to USB port
9 Service switch*-motor side (alternatively, switch located on mains side, or
not mounted)
10 Flat mounting brackets
11 Circuit breaker* (optional)
* The unit can be configured with either service switch or circuit breaker,
not both. The illustration shown is not configurable in practice, but is
displayed to show the respective positions of components only.
®
