2.4.2 Location of Terminals

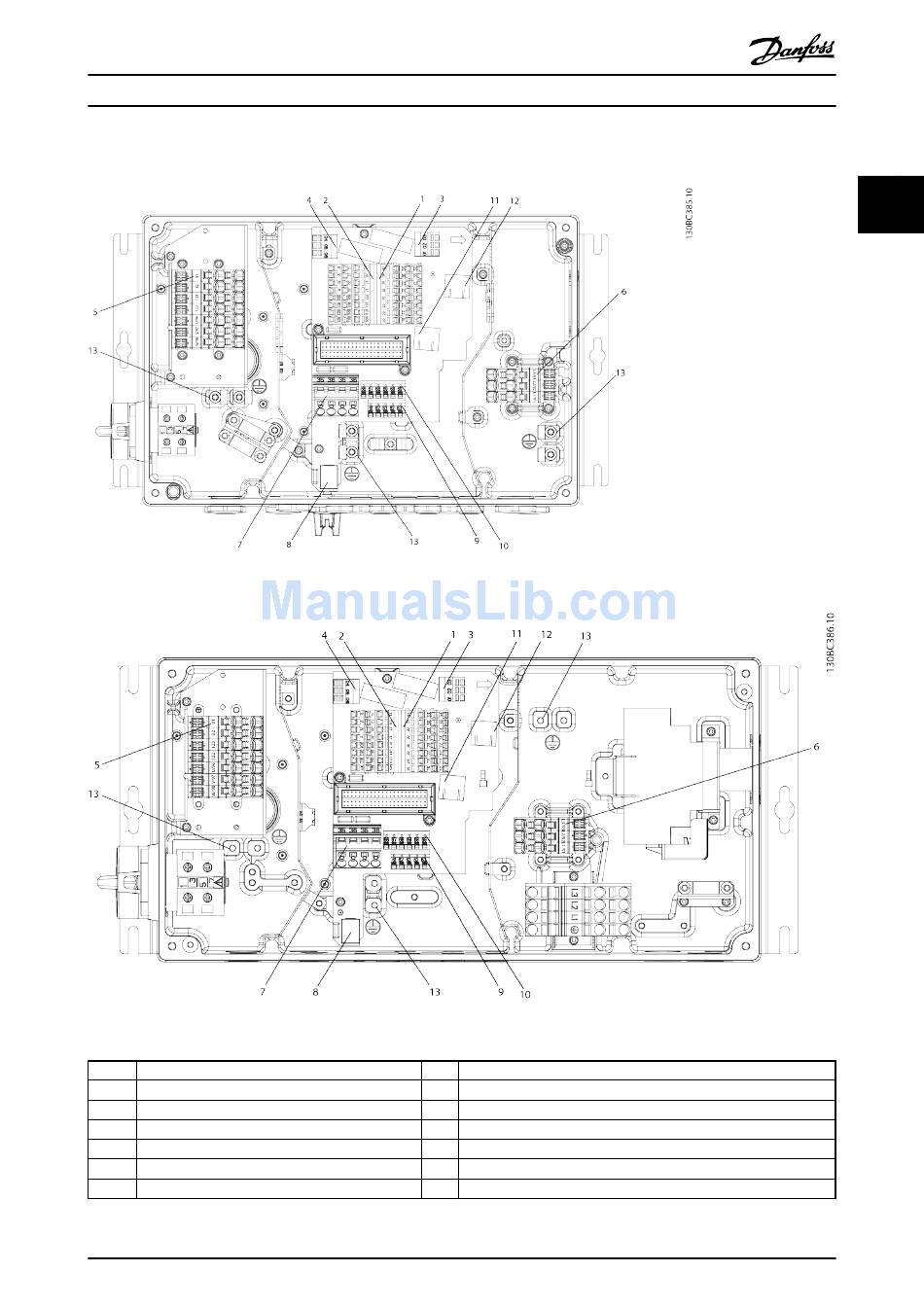

Illustration 2.12 Location of Terminals (Small Unit)

Illustration 2.13 Location of Terminals (Large Unit)

1 Digital and analog inputs/outputs
2 Safe stop, LCP connection, B-option
3 Relay 1
4 Relay 2
5 Motor, mechanical brake, brake resistor
6 Mains
7 24 V DC back-up input
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
®
VLT Decentral Drive FCD 302 Operating Instructions
8 USB port
9 Standard bus/RS-485
10 Profibus
11 Ethernet port
12 Ethernet port
13 Protective Earth (PE)
®
